Air Temperature Sensor ( Ambient / Intake ): Service and Repair

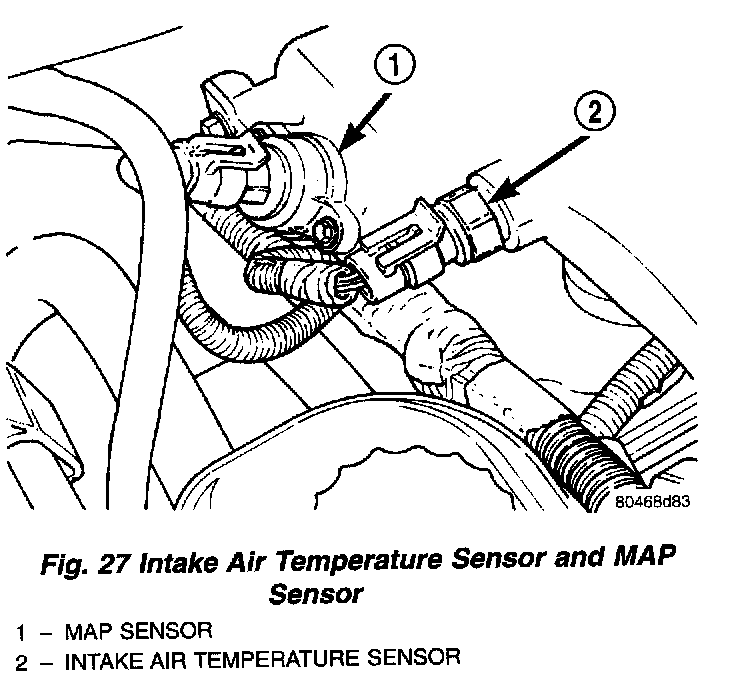

Fig.27 Intake Air Temperature Sensor And MAP Sensor:

The intake air temperature sensor threads into the intake manifold plenum.

REMOVAL
1. Remove the negative battery cable.
2. Disconnect electrical connector from sensor.
3. Remove sensor.

INSTALLATION
1. Install sensor. Tighten sensor to 12 ± 1 Nm (9 ± 1 ft. lbs.) torque.
2. Attach electrical connector to sensor.
3. Install the negative battery cable.
