Crankshaft Position Sensor: Locations





Distributor, CKP Sensor:

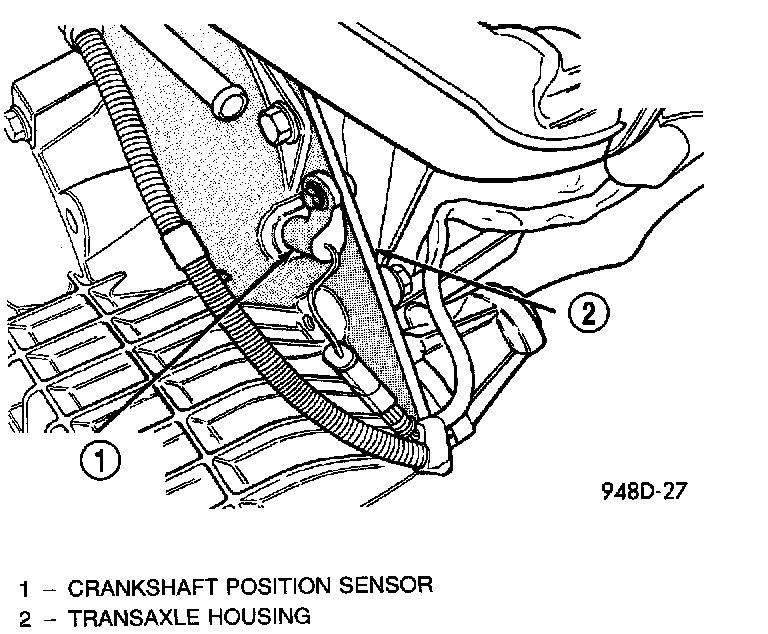

Crankshaft Position Sensor Location - Typical:




The crankshaft position sensor is located on the rear of the transmission housing, above the differential housing.
