Chime Inoperative With Seat Belt Unfastened

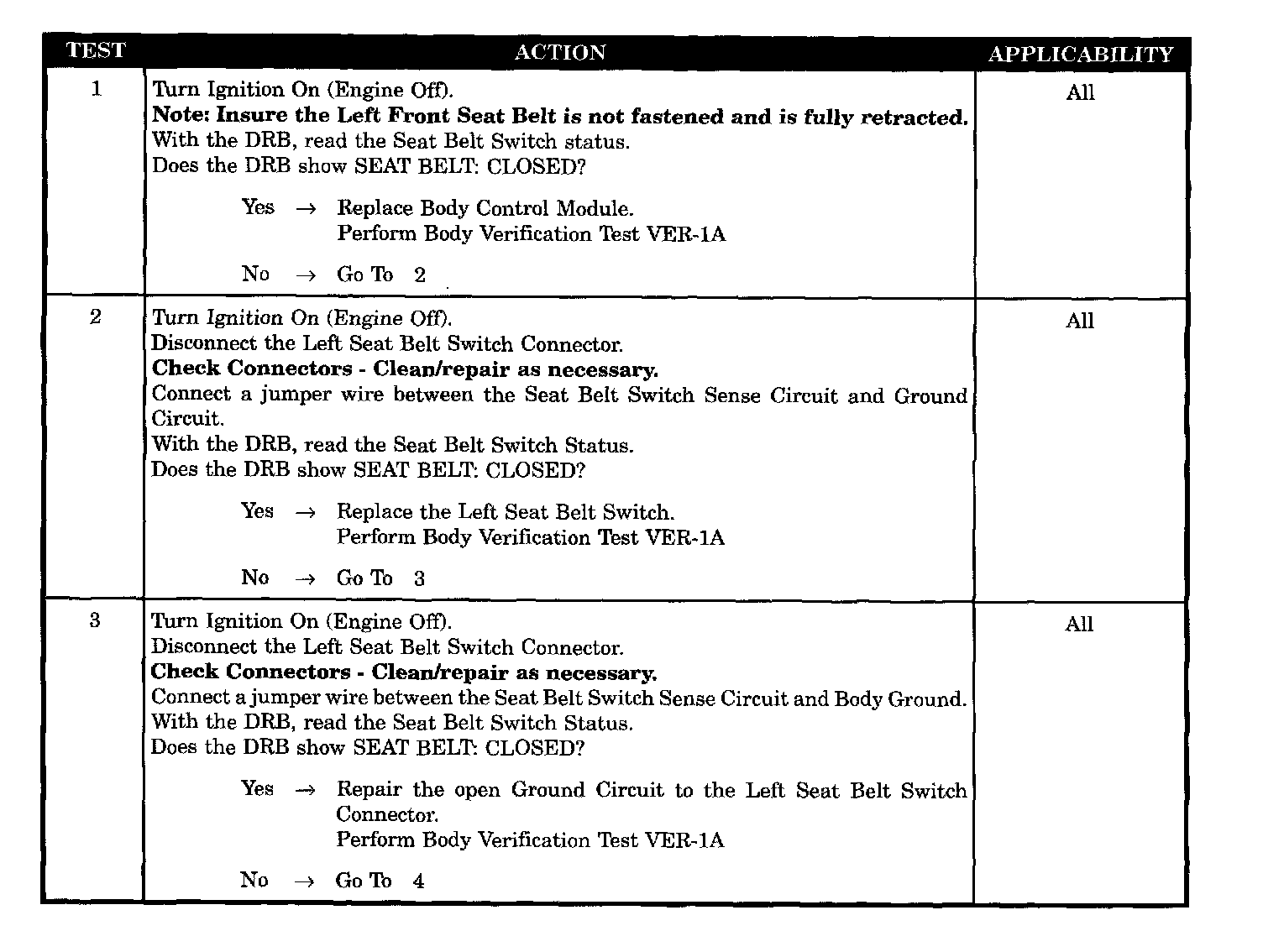

Test 1 - 3:




Test 4:




SYMPTOM
CHIME INOPERATIVE WITH SEAT BELT UNFASTENED

POSSIBLE CAUSES
- Ground circuit to left seat belt switch connector open
- Left seat belt switch open
- BCM not responding to belt SW
- Body control module seat belt switch sense open
- Seat belt switch sense circuit open
