Checking IAC Motor

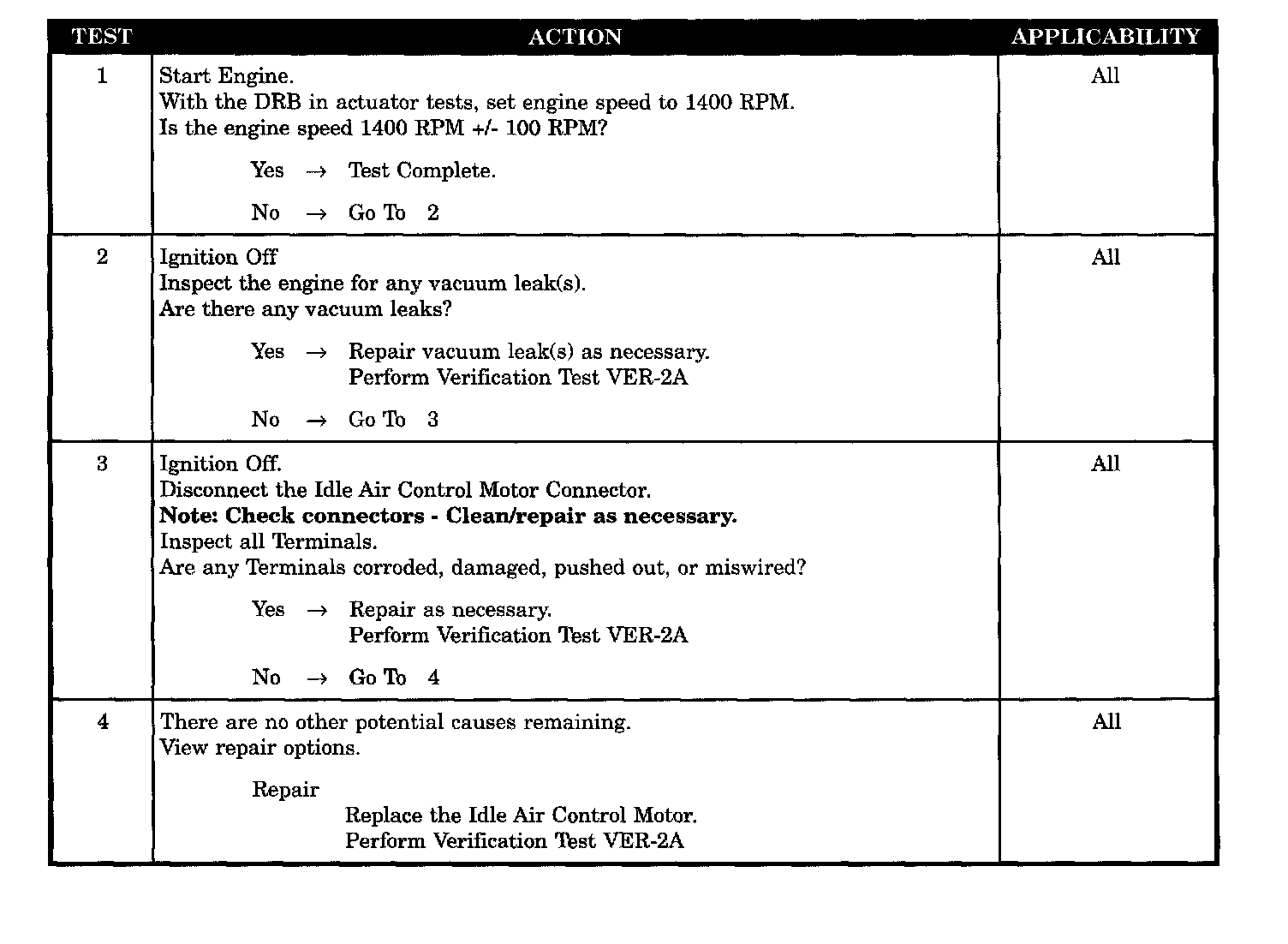

Tests 1 - 4:





SYMPTOM
CHECKING IAC MOTOR

POSSIBLE CAUSES
- IAC motor connector terminals observable defect
- Idle air control motor defective
- Engine has vacuum leaks
- Test passed
