Front Cross-Member: Service and Repair
REMOVAL SERVICE POINT

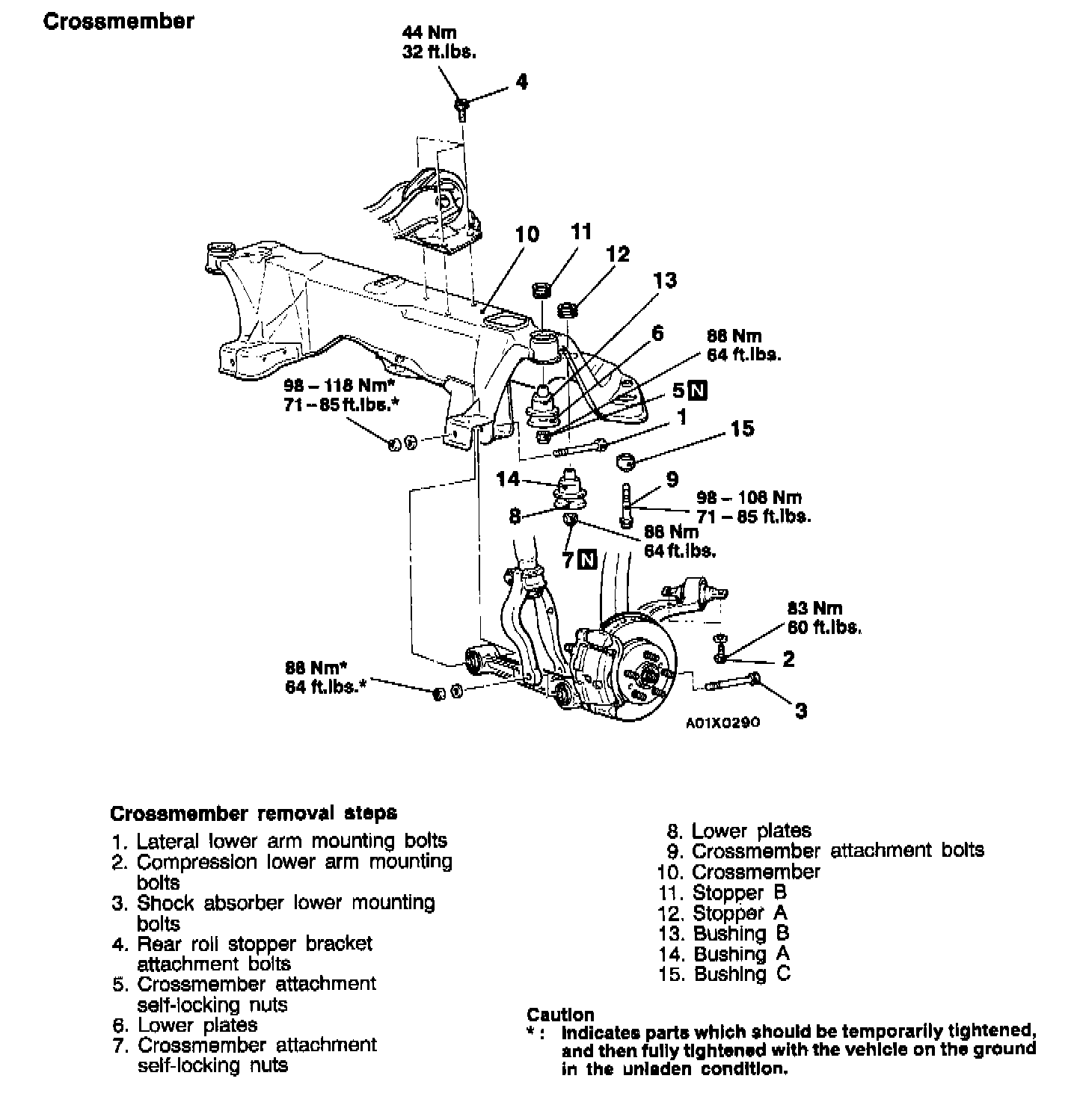

CENTERMEMBER ASSEMBLY REMOVAL
1. Set the special tool to the vehicle to support the engine assembly.
2. Remove the centermember assembly.
INSPECTION
- Check the crossmember for cracks or deformation.
- Check the bushings for cracks or deterioration.
