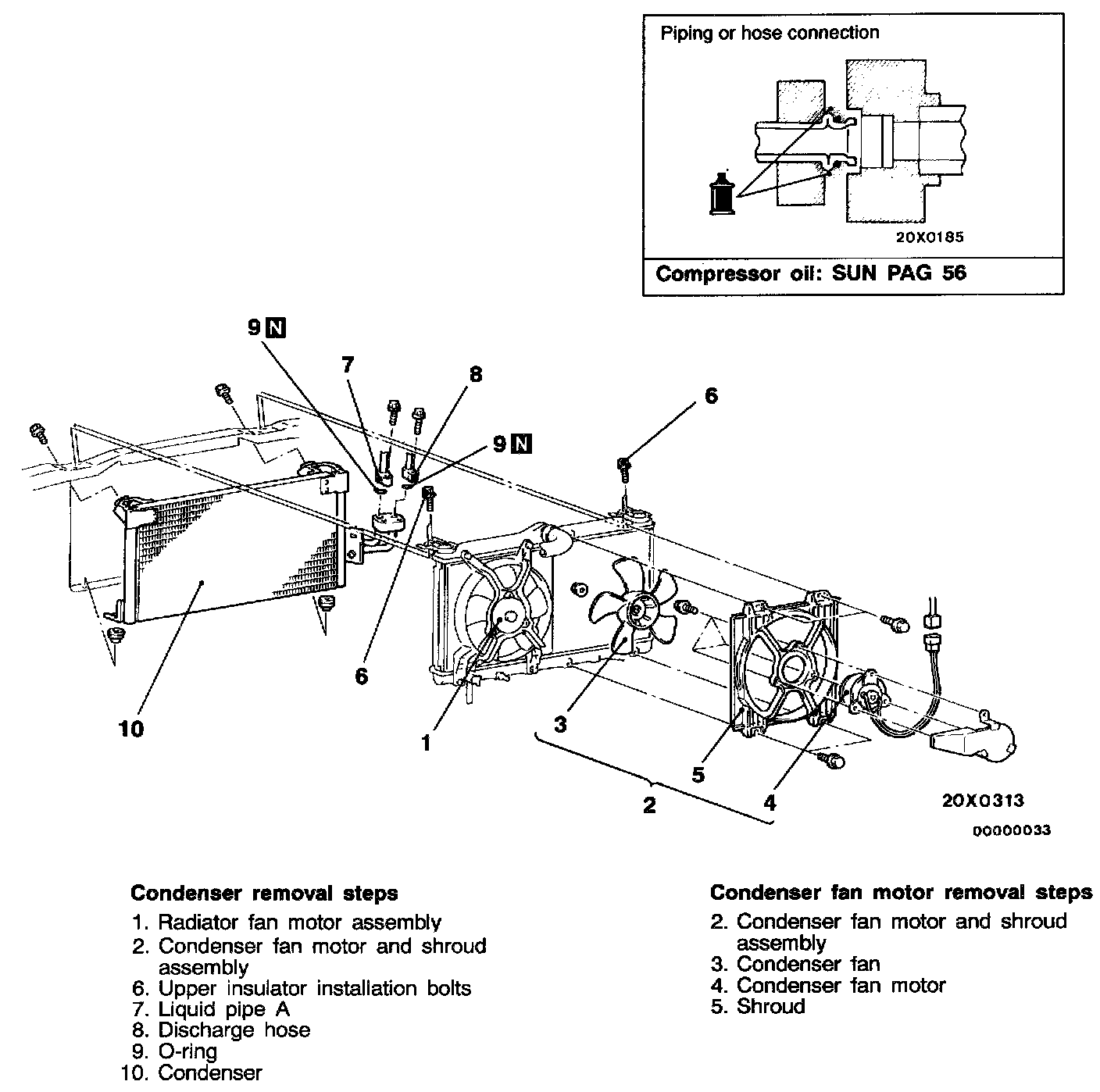

Condenser Fan: Service and Repair

CAUTION: Plug refrigerant lines to prevent air from mixing when disconnecting them.

REMOVAL SERVICE POINT




Condenser Removal
Move the radiator to the engine side and then lift up the condenser to remove it.

INSTALLATION SERVICE POINT
Condenser Installation
When replacing the condenser with a new one, refill the condenser with a specified amount of compressor oil.

Compressor oil: SUN PAG 56
Quantity: 15 cm3 (0.51 fl.oz.)
