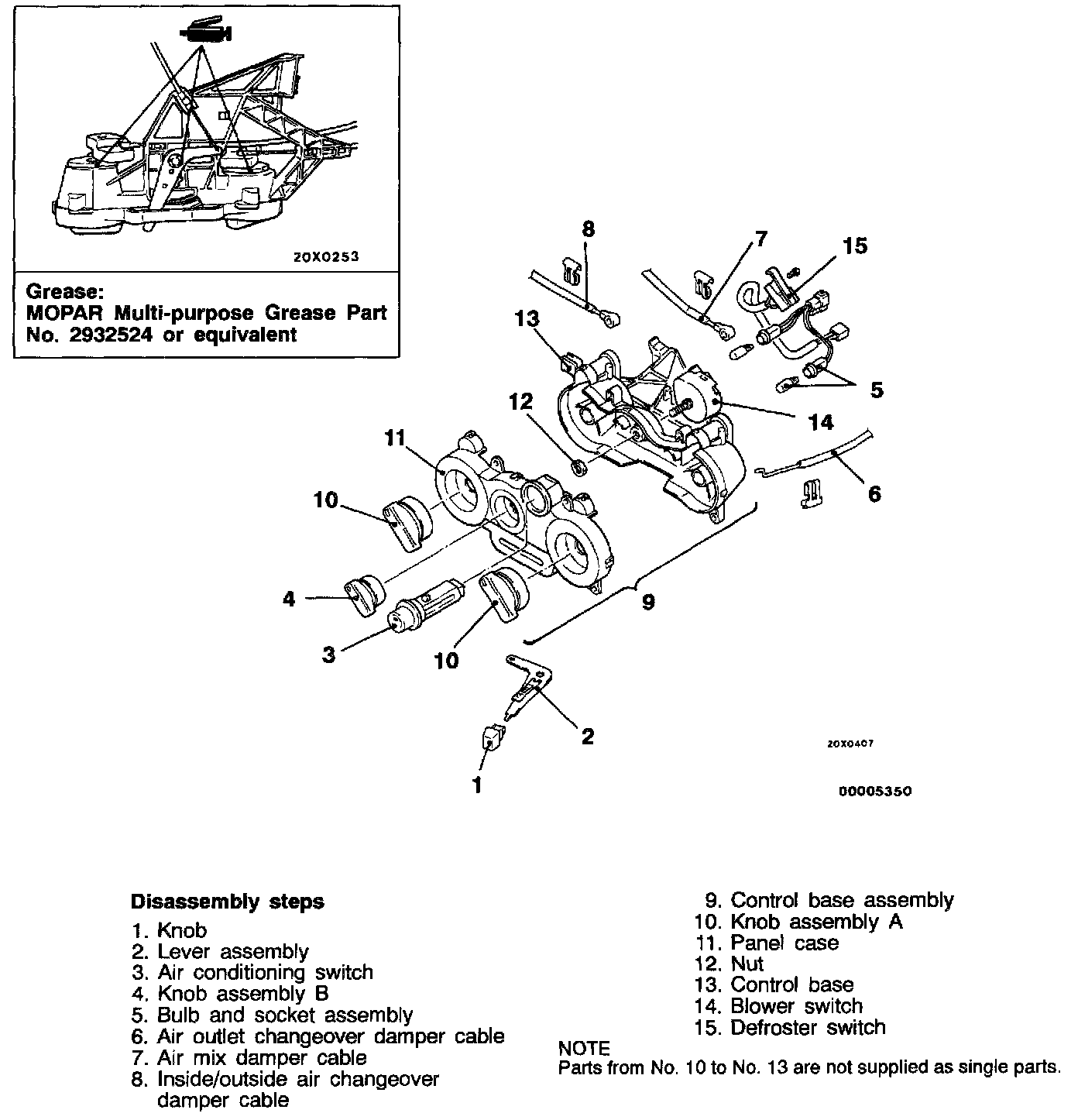

Disassembly and Reassembly

DISASSEMBLY SERVICE POINT




Air Outlet Changeover Damper Cable/air Mixing Damper Cable/inside/outside Air Changeover Damper Cable Removal
Insert a flat-tipped screwdriver to disengage the claws, and then remove the cables.

REASSEMBLY
To reassemble reverse the steps listed.
