Manifold Pressure/Vacuum Sensor: Locations

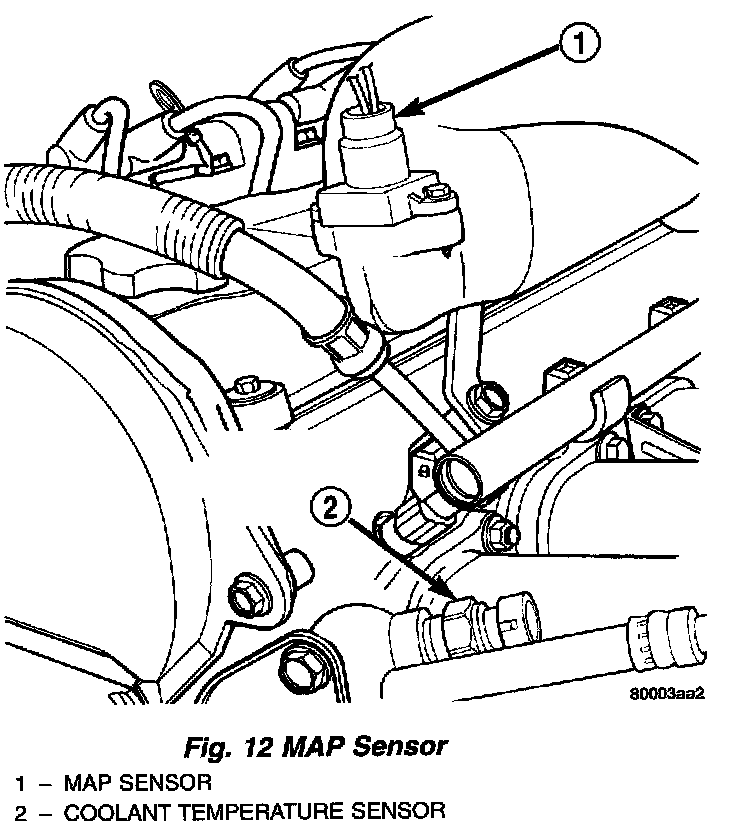

Fig. 12 MAP Sensor:

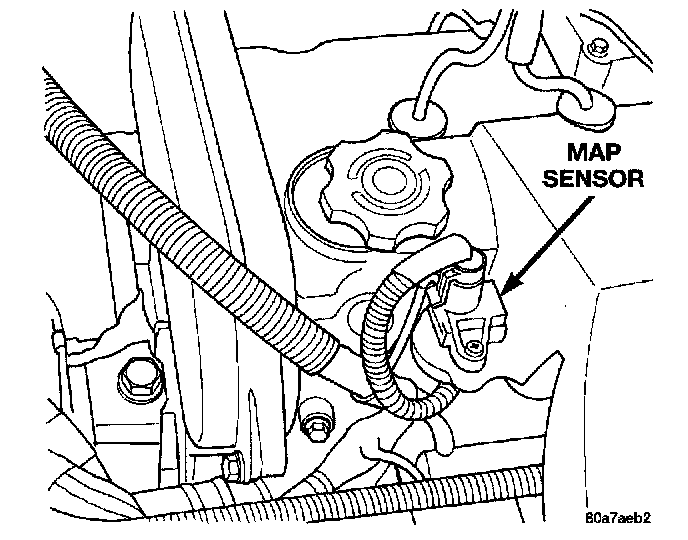

MAP Sensor:

The MAP sensor mounts to the intake manifold near the throttle body inlet to the manifold. The sensor connects electrically to the PCM.
