Camshaft Bearing Cap

Camshaft Bearing Cap Identification

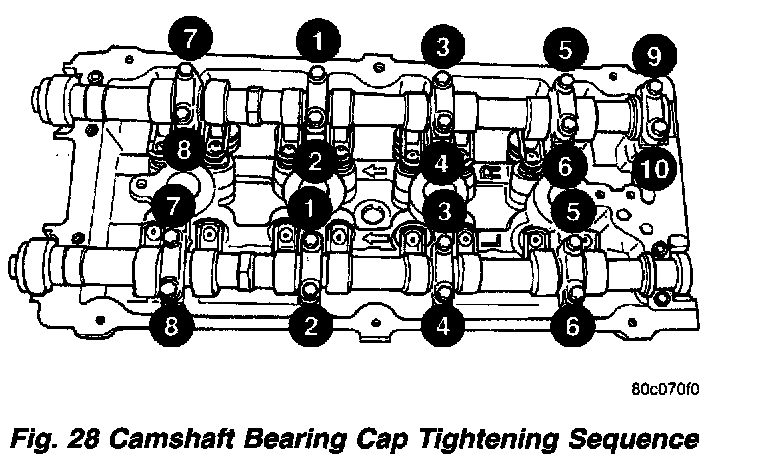

Camshaft Bearing Cap Tightening Sequence


- Tighten M6 fasteners on right camshaft bearing caps Nos. 2 - 6 in sequence shown to 12 Nm (105 in. lbs.).
- Tighten M6 fasteners on left camshaft bearing caps Nos. 2 - 5 in sequence shown to 12 Nm (105 in. lbs.).
- Tighten M8 fasteners on No. 1 camshaft bearing cap and left camshaft bearing cap No. 6 to 28 Nm (250 in. lbs.).
