Checking Speed Control Brake Switch Output

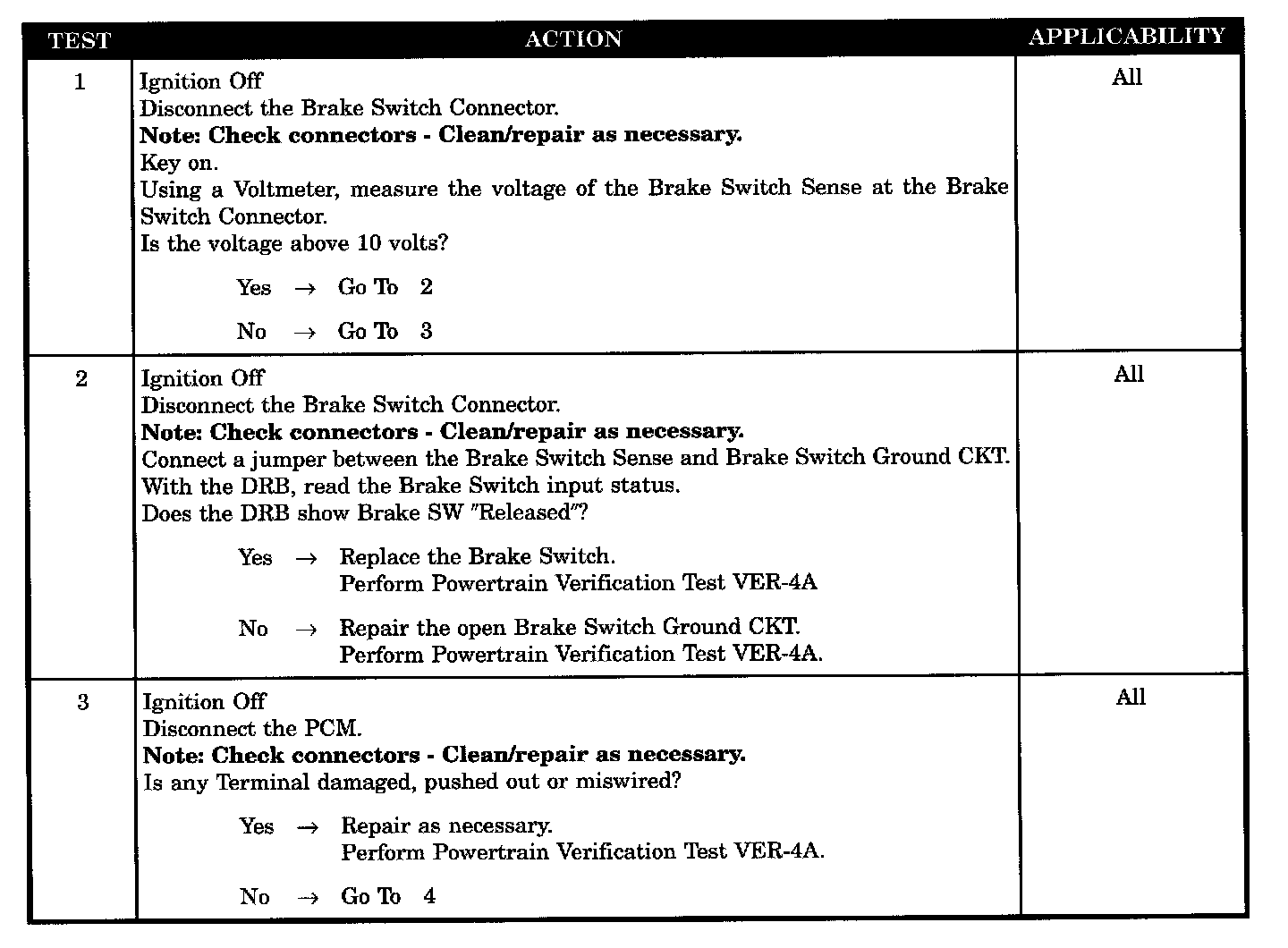

Tests 1 - 3:

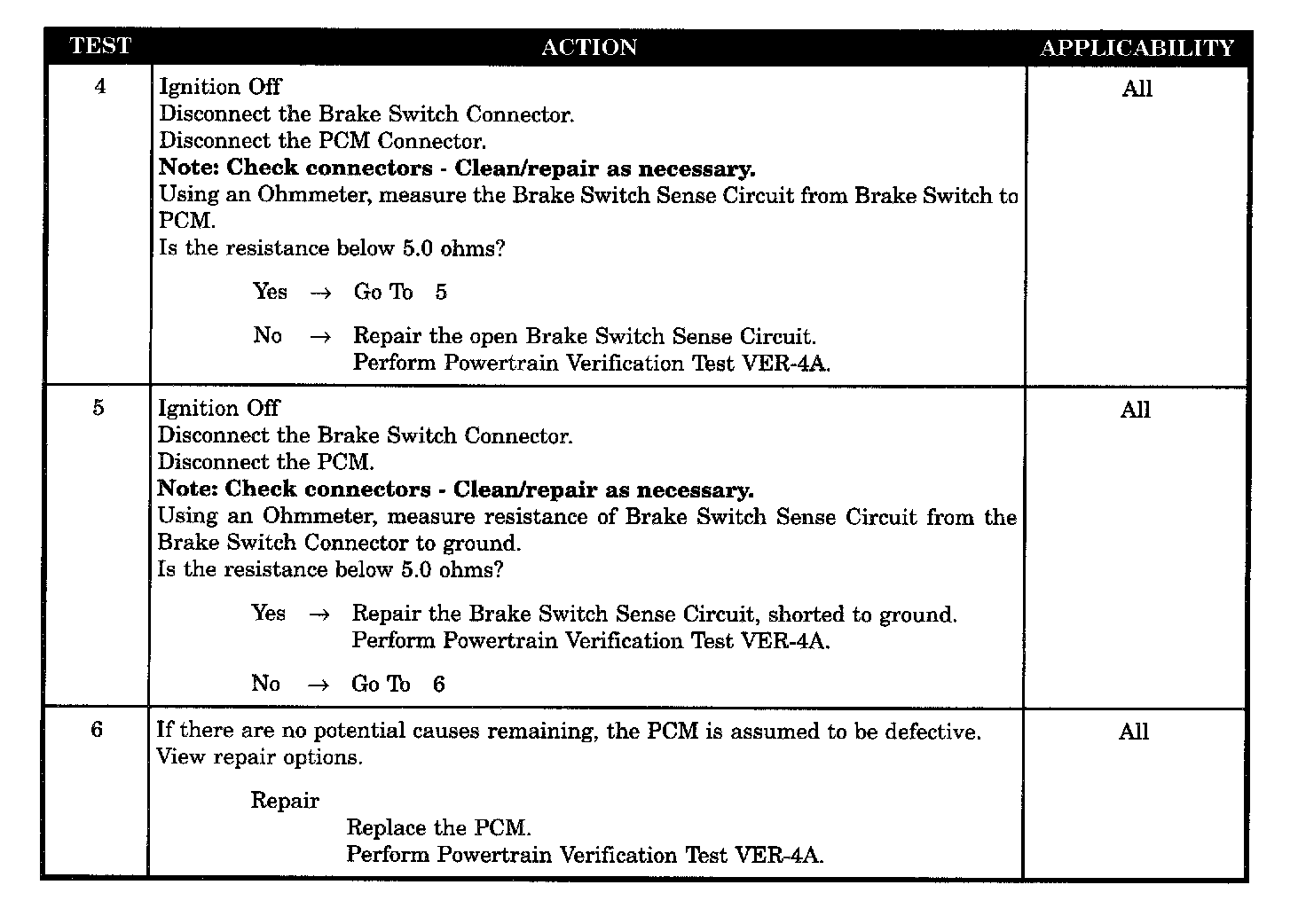

Tests 4 - 6:




SYMPTOM
SPEED CONTROL BRAKE SWITCH OUTPUT

POSSIBLE CAUSES
- Ground circuit open
- PCM connector observable defect
- Brake switch defective
- Brake switch sense circuit open
- Brake switch sense circuit shorted to ground
- PCM defective
