Electrical Diagrams

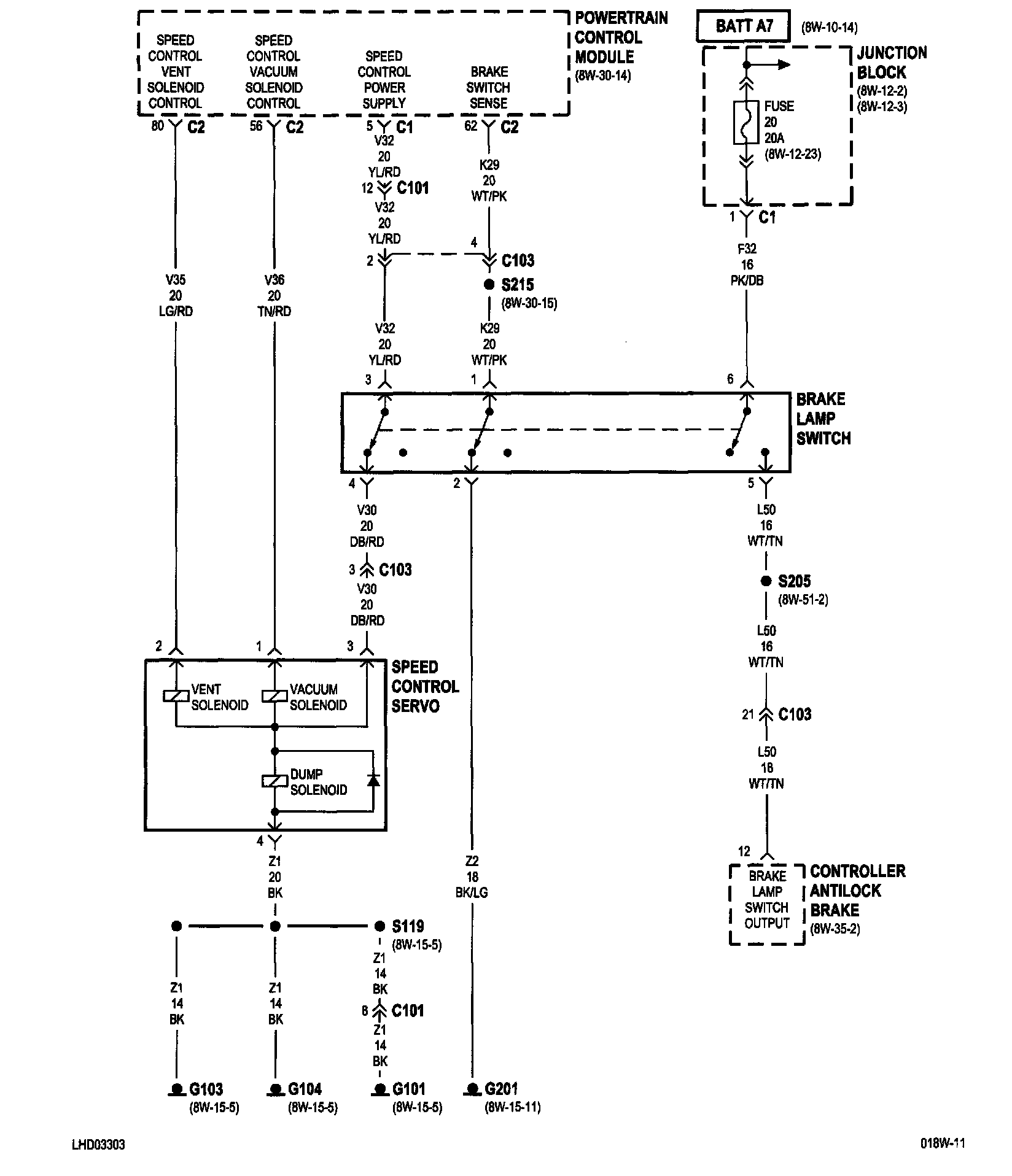

8w-33-2:

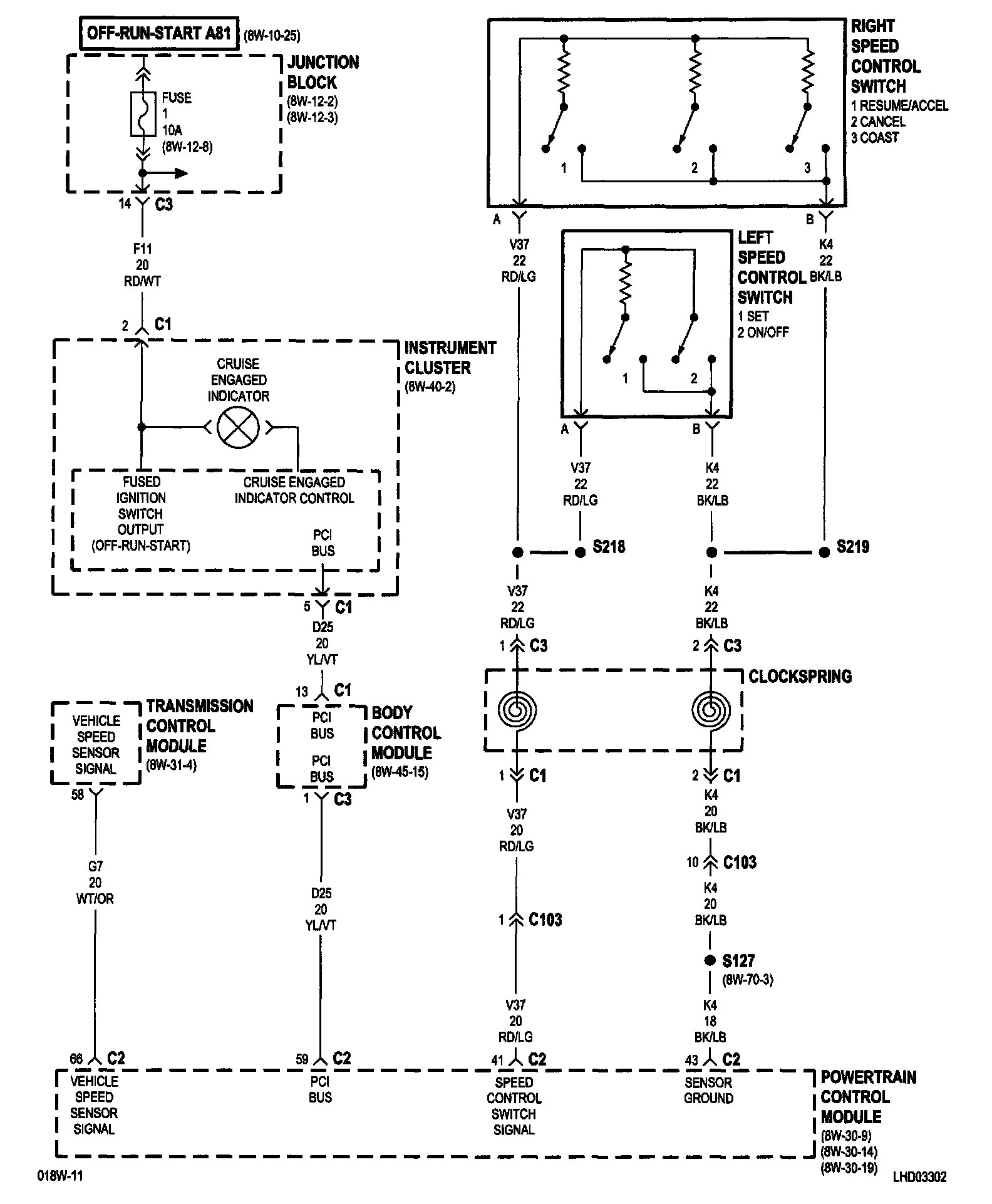

8w-33-3:






NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams. Electrical Diagrams
