Compressor Clutch Relay: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.

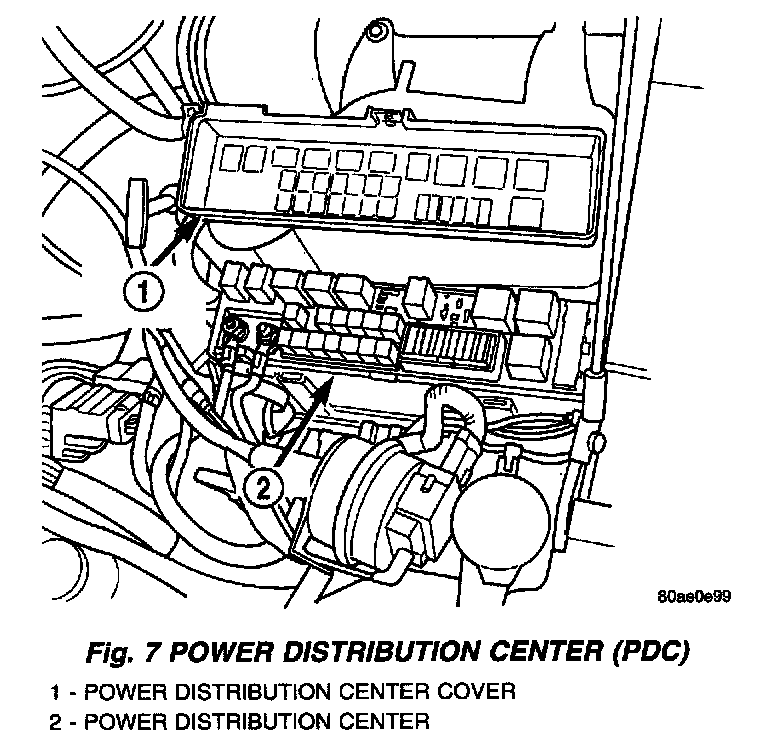

Fig.7 Power Distribution Center (PDC):

2. Remove the cover from the Power Distribution Center (PDC).
3. Refer to the label on the PDC for compressor clutch relay identification and location.
4. Unplug the compressor clutch relay from the PDC.

INSTALLATION
1. Install the compressor clutch relay by aligning the relay terminals with the cavities in the PDC and pushing the relay firmly into place.
2. Install the PDC cover.
3. Connect the battery negative cable.
4. Test the relay operation.
