Procedures

REMOVAL

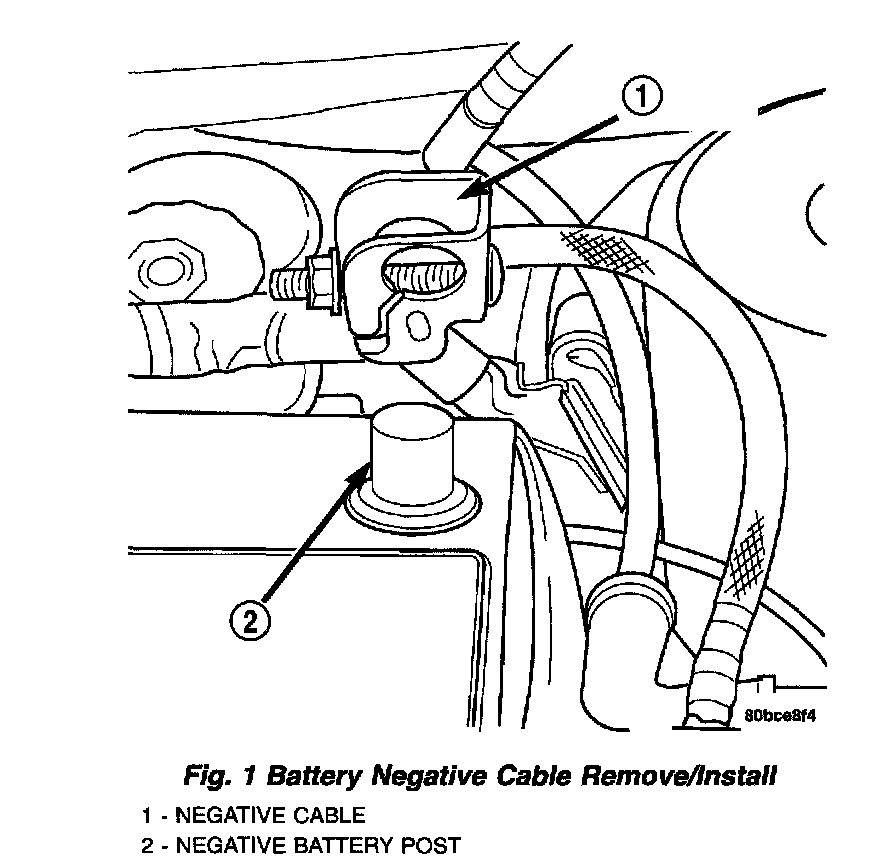

Fig.1 Battery Negative Cable Remove/Install:

1. Disconnect and isolate the battery negative cable.
2. Disconnect wiring connector.

Fig.2 Mirror/Reading Lamps:

3. Loosen mirror set screw.
4. Lift mirror from mounting button.

INSTALLATION
1. Install mirror to the mounting button.
2. Tighten set screw.
3. Reconnect the wire connector.
4. Reconnect the battery negative cable.
