Engine Compartment/Exhaust System

Fig. 26 Types Or O2 Sensors:

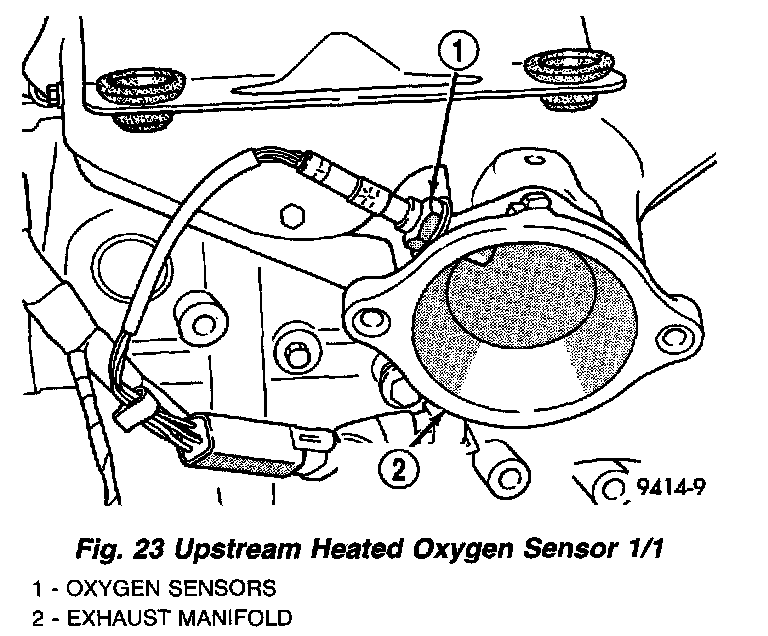

Fig. 23 Upstream Heated Oxygen Sensor 1/1:

The upstream oxygen sensor threads into the outlet flange of the exhaust manifold.

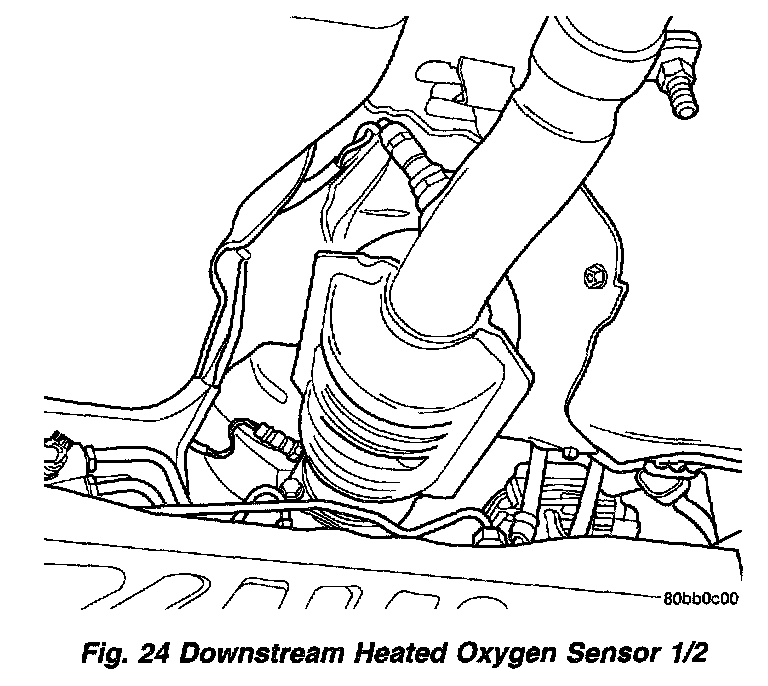

Fig. 24 Downstream Heated Oxygen Sensor 1/2:

The downstream heated oxygen sensor threads into the system depending on emission package.
