Component Locations

COMPONENT LOCATIONS

Component Location
Data Link Connector (DLC) Lower Left Side Of Instrument Panel
Powertrain Control Module (PCM) Left Front Side Of Engine Compartment
Control Servo (1) Right Side Of Engine Compartment
Vacuum Reservoir Right Front Fenderwell
(1) See Fig 1 .

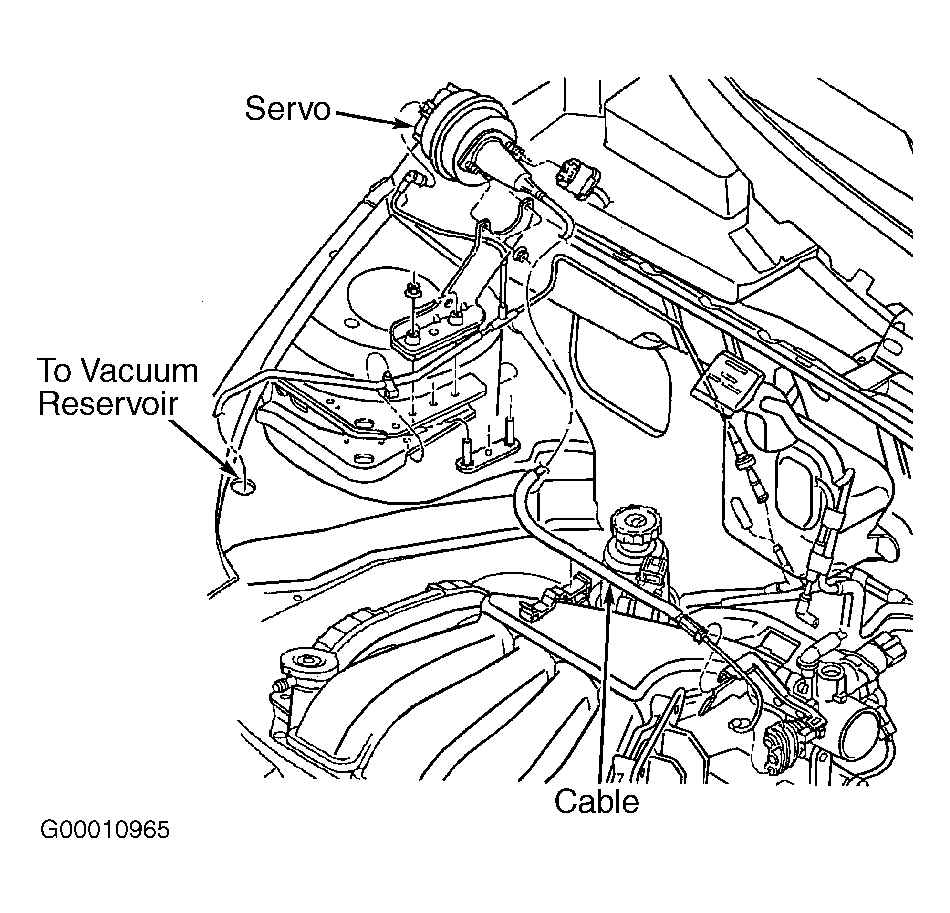

Fig 1: Identifying Cruise Control Components
G00010965Courtesy of CHRYSLER CORP.
