Power Distribution Module

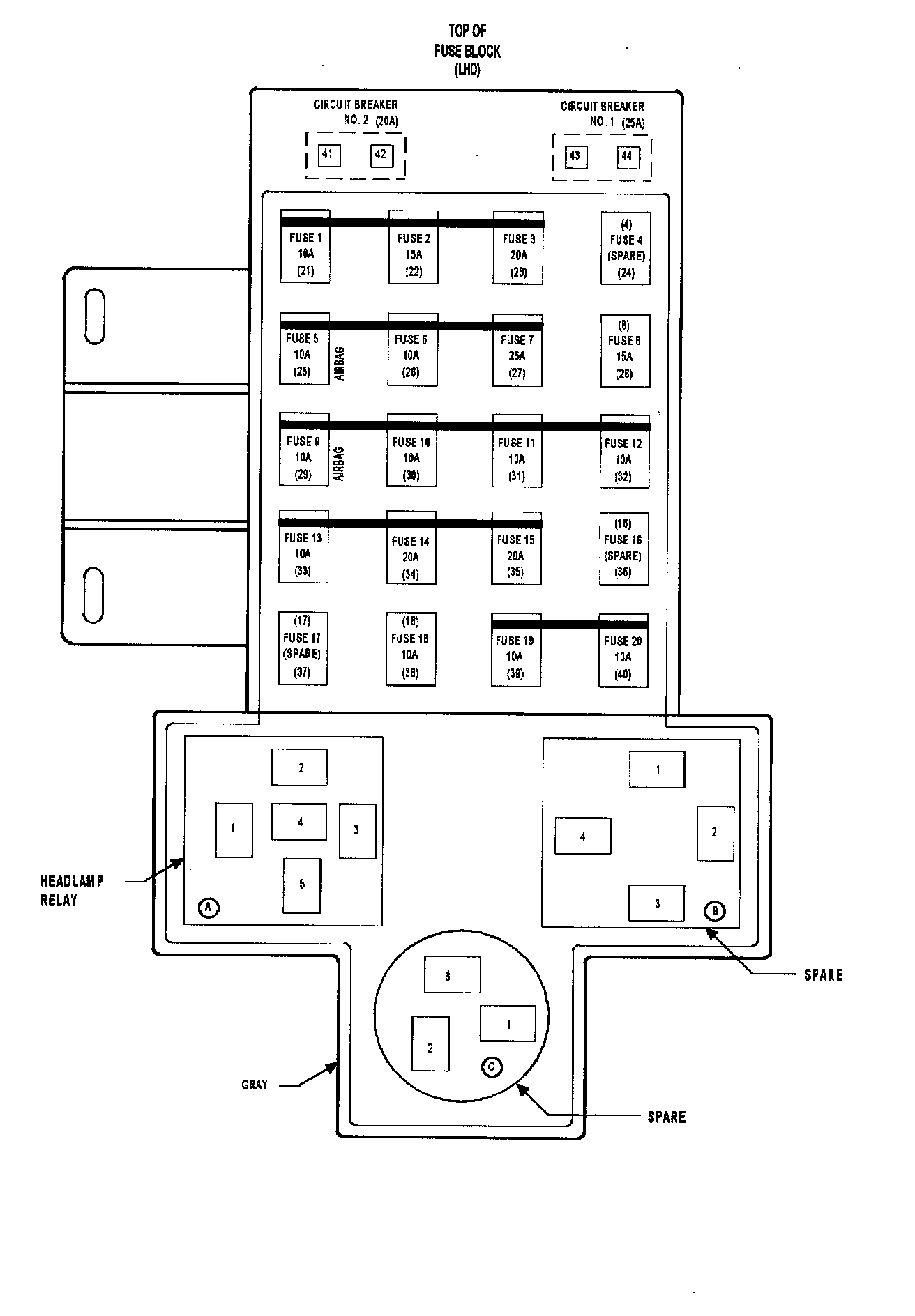

Fuse block part 1 of 2





Fuse Block part 2 of 2

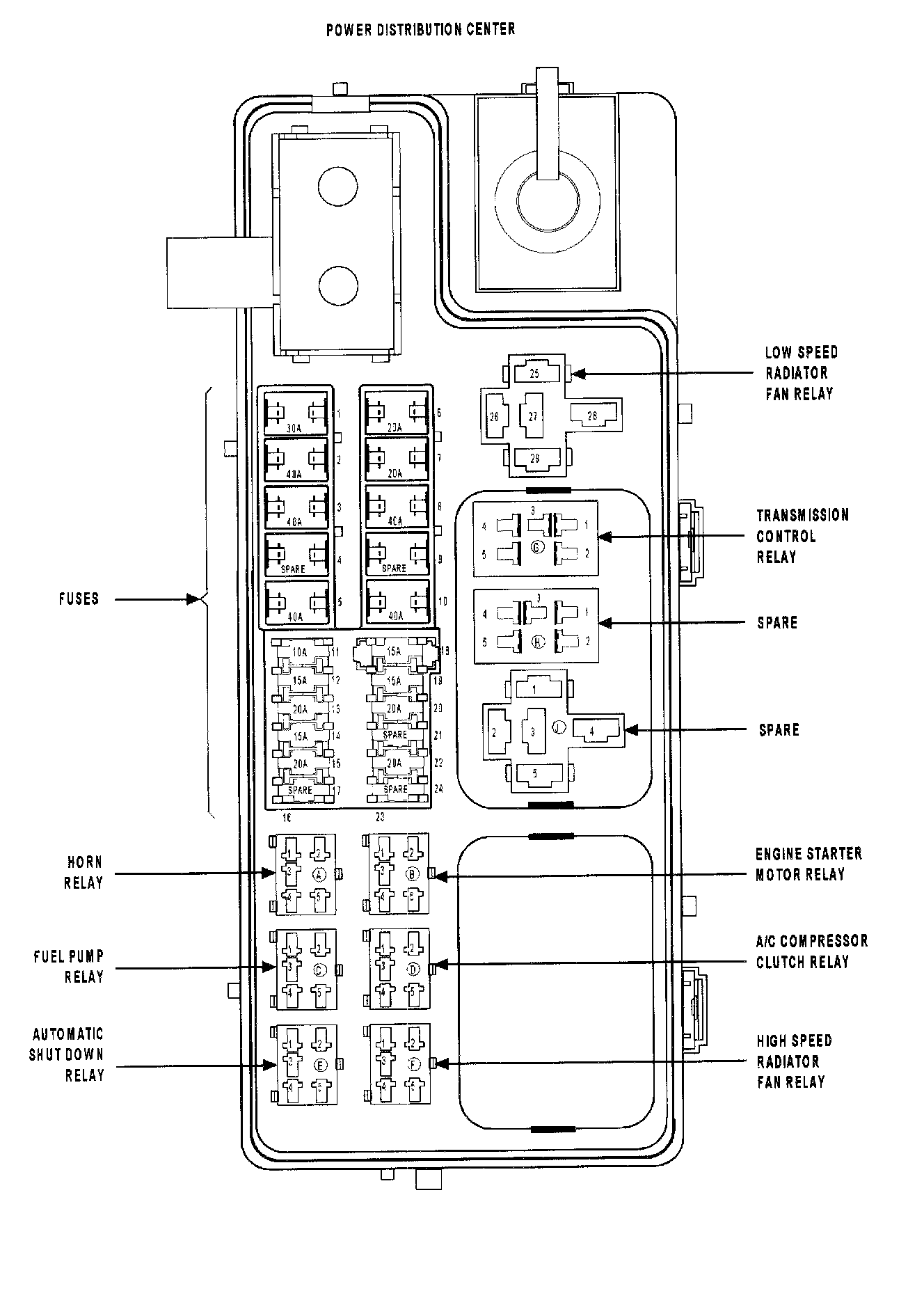

Power Distribution Center

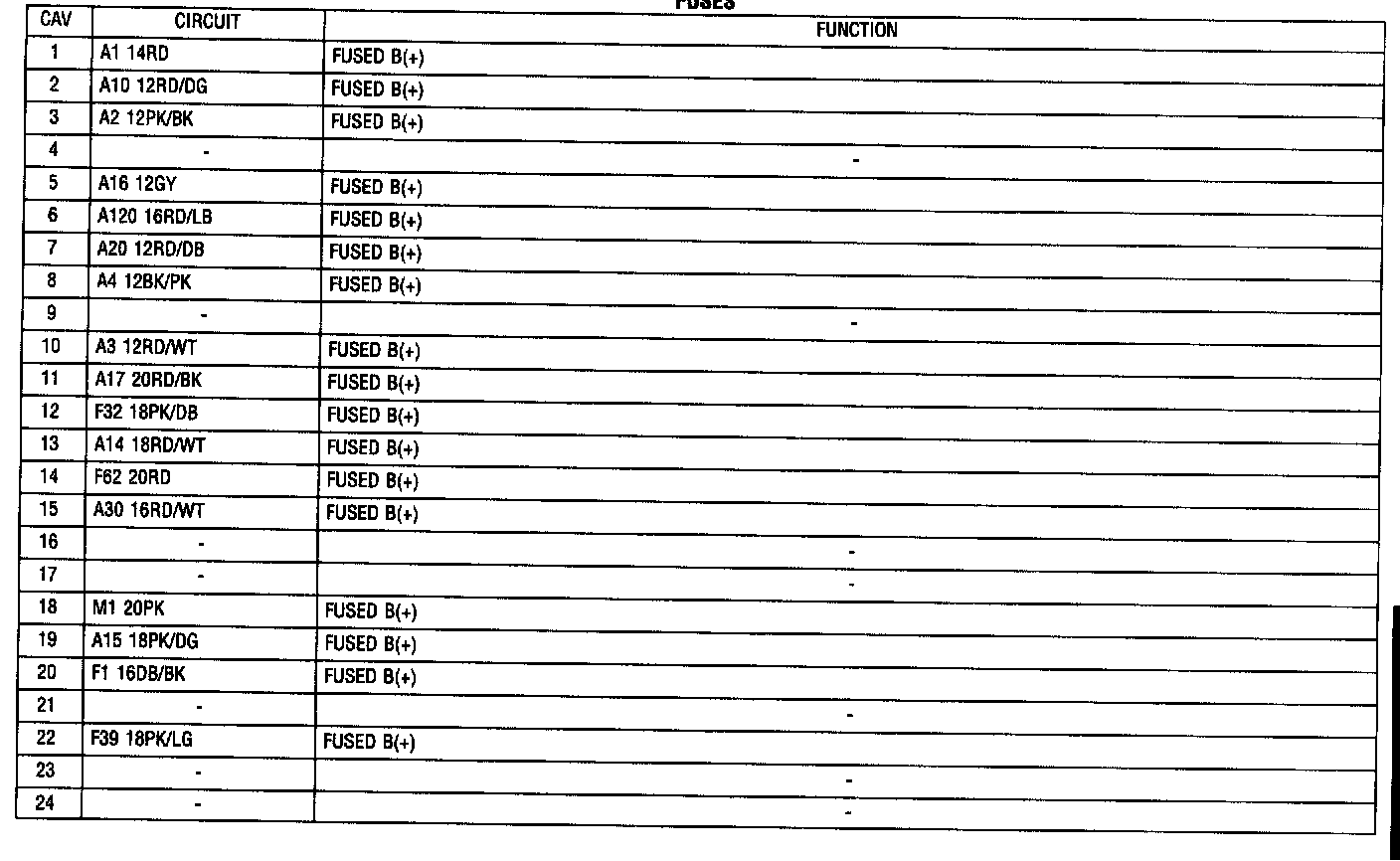

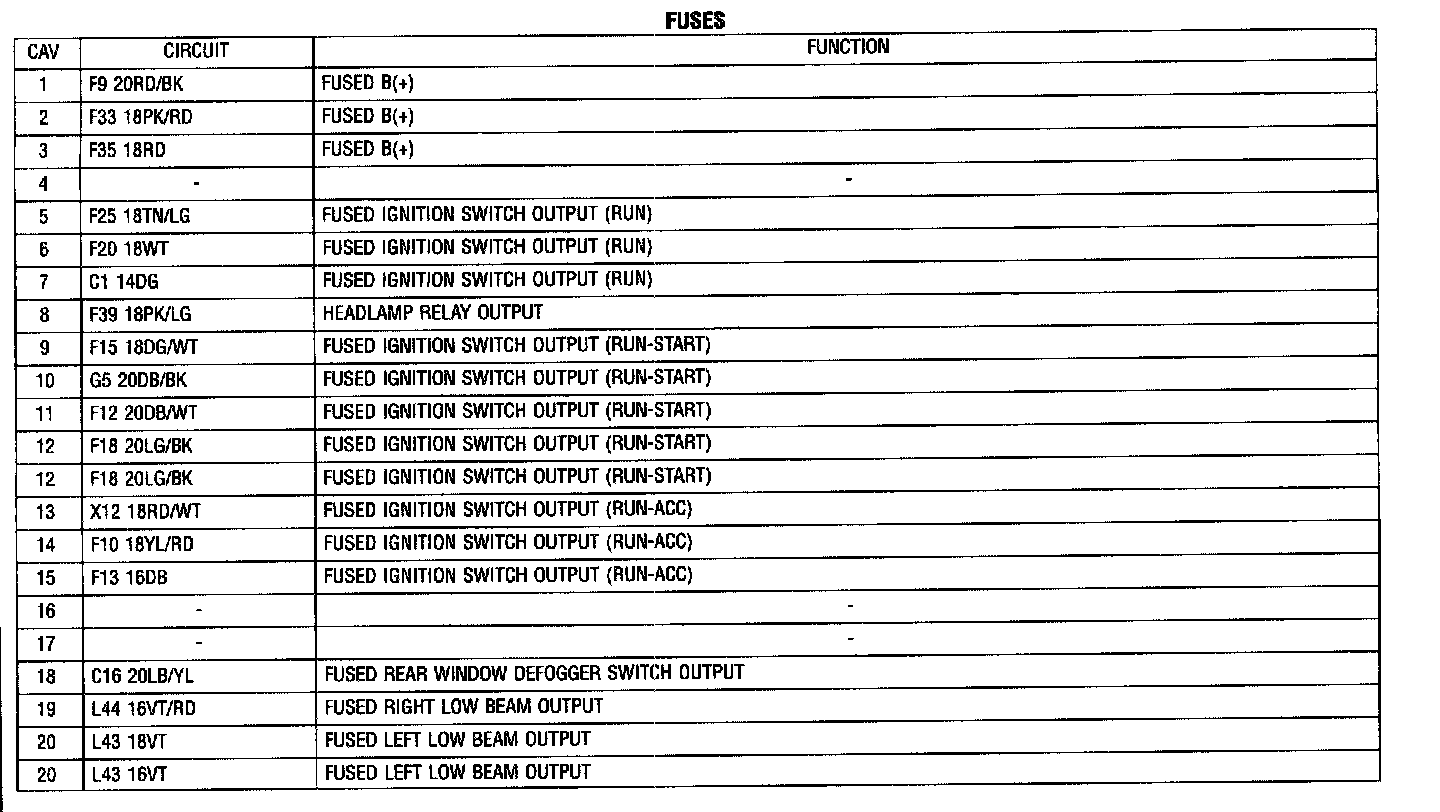

Fuses





A/C Compressor Clutch Relay





Automatic Shutdown Relay





Engine Starter Motor Relay





Fuel Pump Relay





High Speed Radiator Fan Relay





Horn Relay





Low Speed Radiator Fan Relay





Transmission Control Relay
