Camshaft Position Sensor: Locations

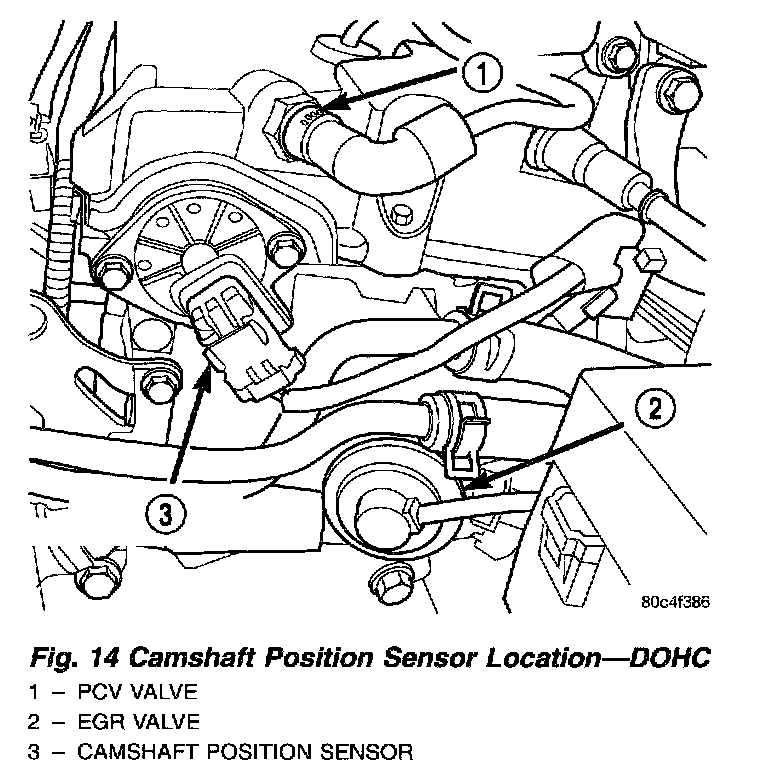

Fig.14 Camshaft Position Sensor Location - DOHC:




The camshaft position sensor is mounted to the rear of the cylinder head.
