Engine Compartment/Exhaust System

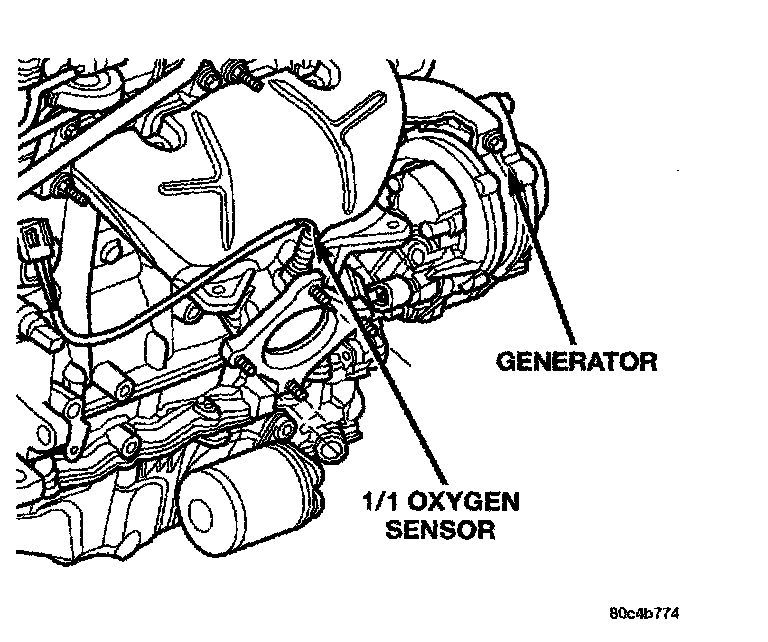

Fig.4 Oxygen Sensor 1/1 Upstream And 1/2 Downstream:

The upstream oxygen sensor threads into the outlet flange of the exhaust manifold.

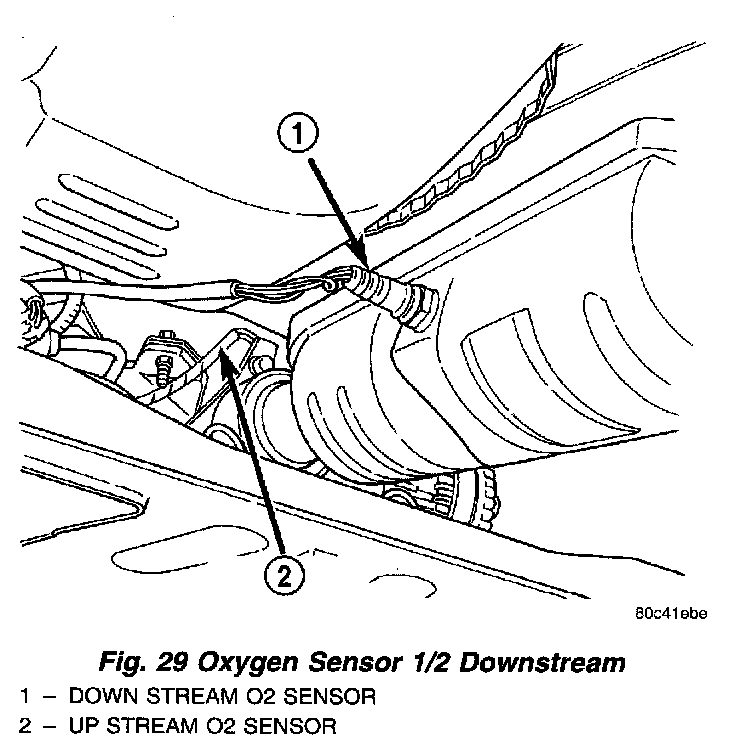

Fig.29 Oxygen Sensor 1/2 Downstream:

The downstream heated oxygen sensor threads into the exhaust pipe behind the catalytic convertor.
