Checking Intake Air Temperature Sensor

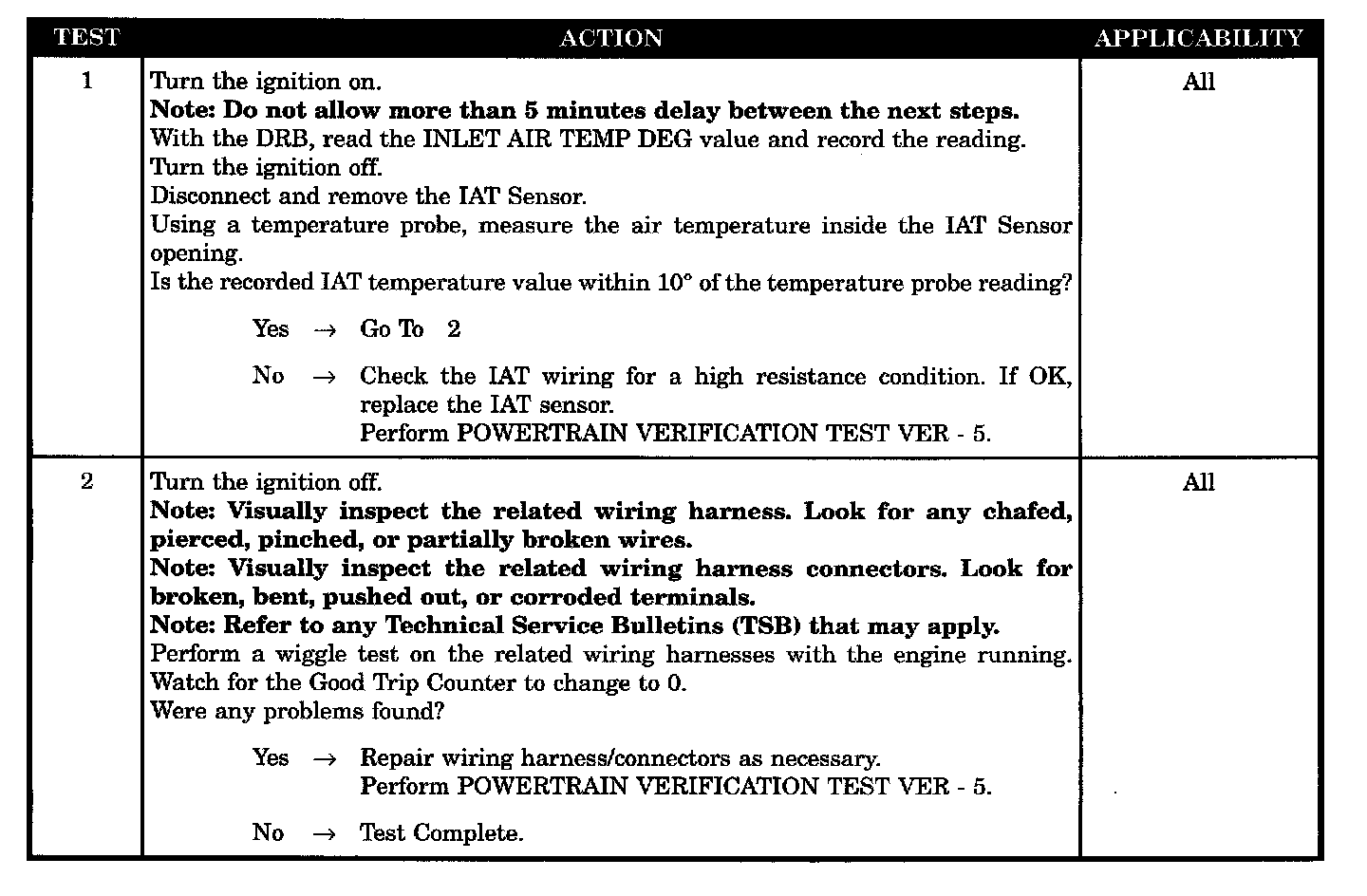

Tests 1 - 2:




SYMPTOM
CHECKING THE INLET AIR TEMPERATURE SENSOR

POSSIBLE CAUSES
- IAT sensor (out of calibration) wiring harness intermittent
