Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Data Link Connector (DLC) | Below Lower Left Edge Of Instrument Panel |

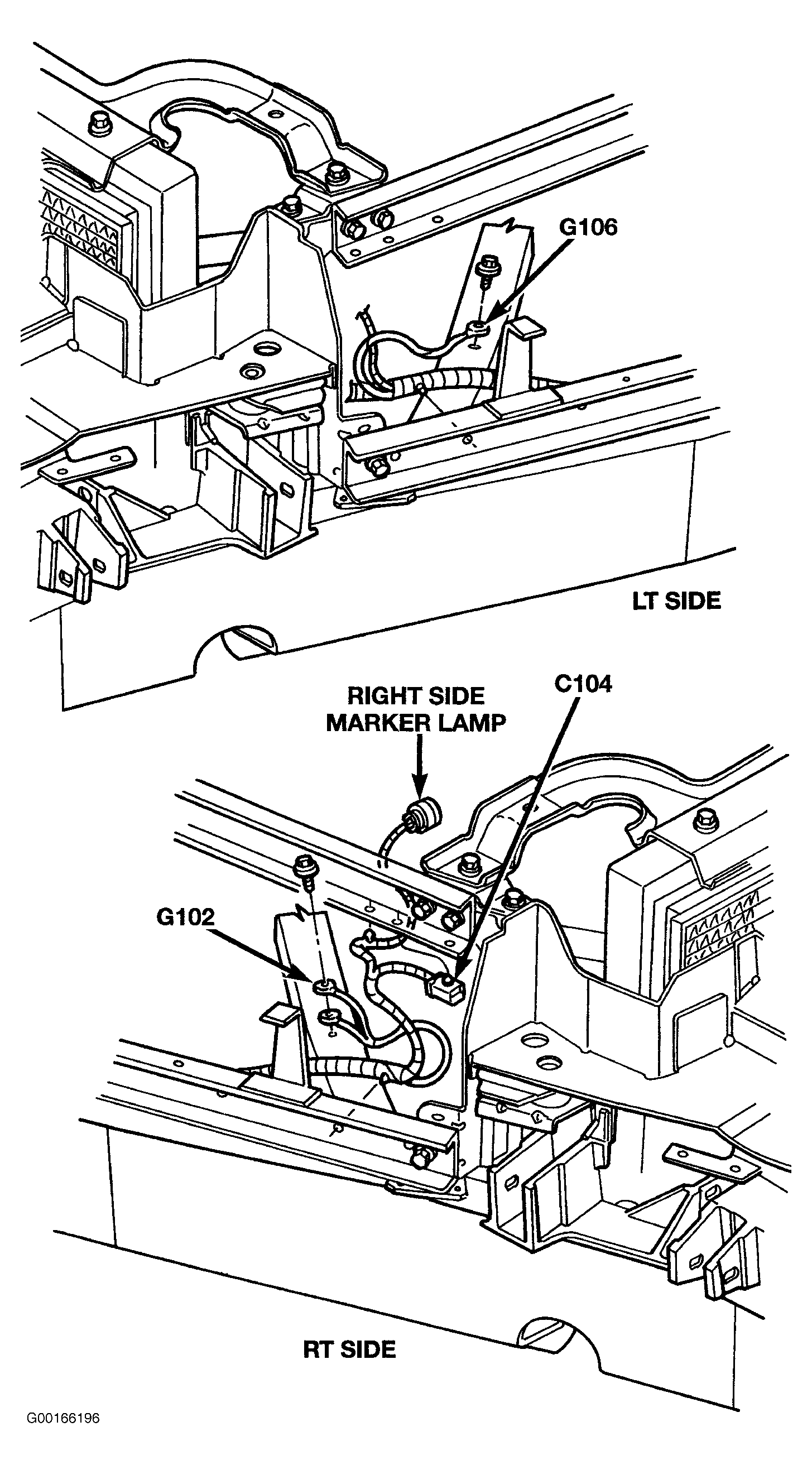

| Ground G106 | Left Front Corner Of Engine Compartment. See Fig 1 . |

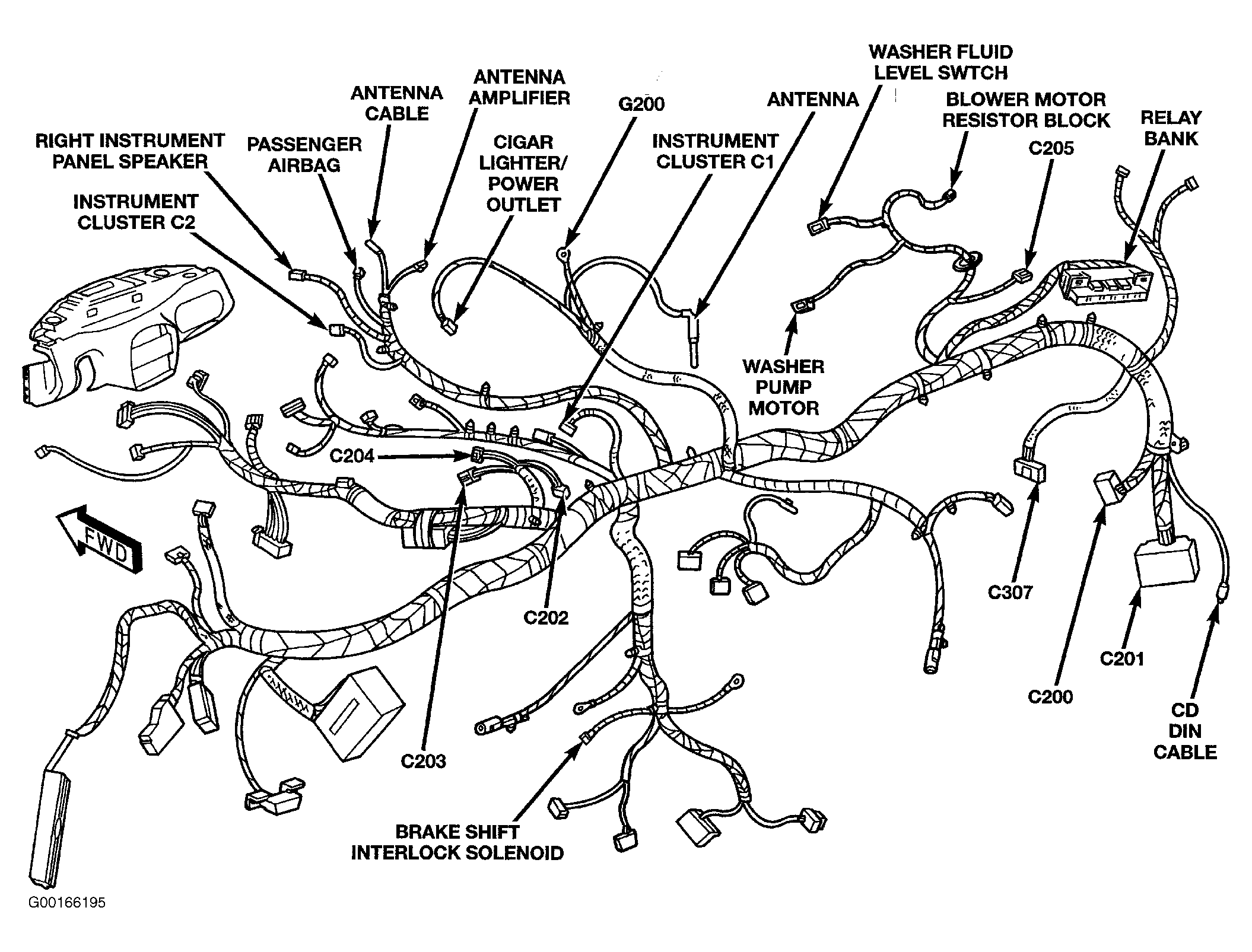

| Ground G200 | Behind Center Of Instrument Panel, Near Radio. See Fig 2 . |
| Ground G201 | Behind Center Of Instrument Panel, Near Radio. See Fig 3 . |
| Powertrain Control Module | In Engine Compartment On Driver's Side Under The Speed Control Servo. See Fig 4 . |

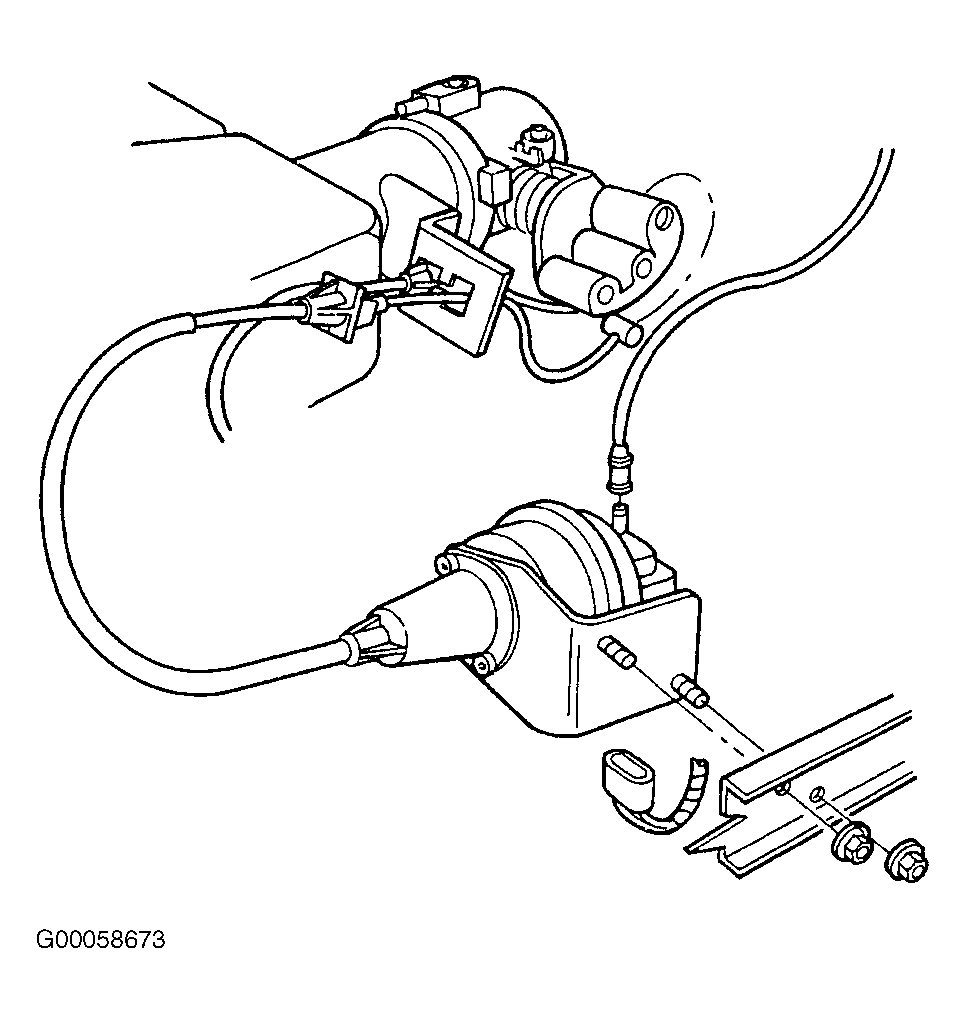

| Speed Control Servo | Attached To Throttle Linkage Through Speed Control Servo Cable. See Figure . |
| Speed Control Servo Cable | Connected Between Speed Control Vacuum Servo Diaphragm & Throttle Body Control Linkage See Figure . |

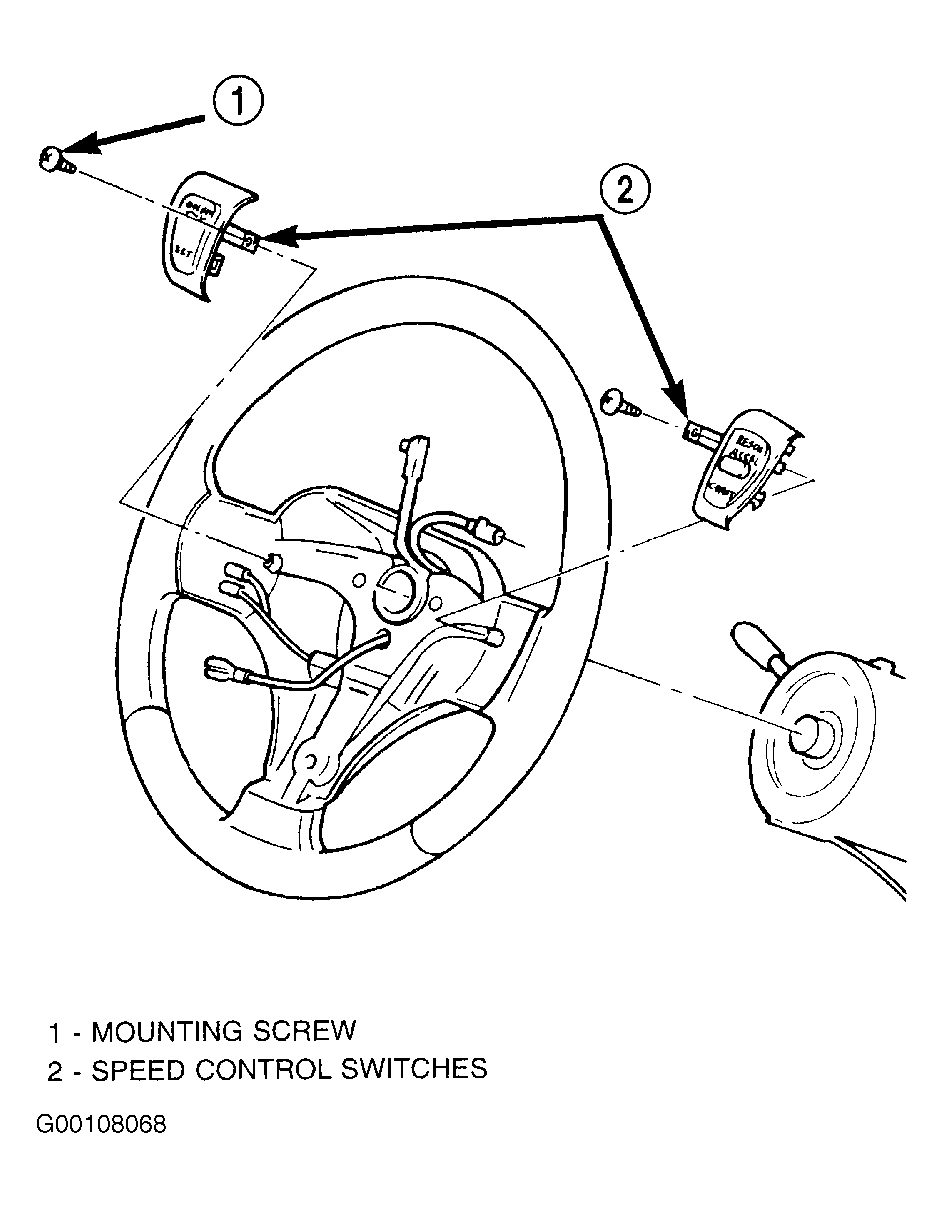

| Speed Control Switches | On Steering Wheel. See Figure . |

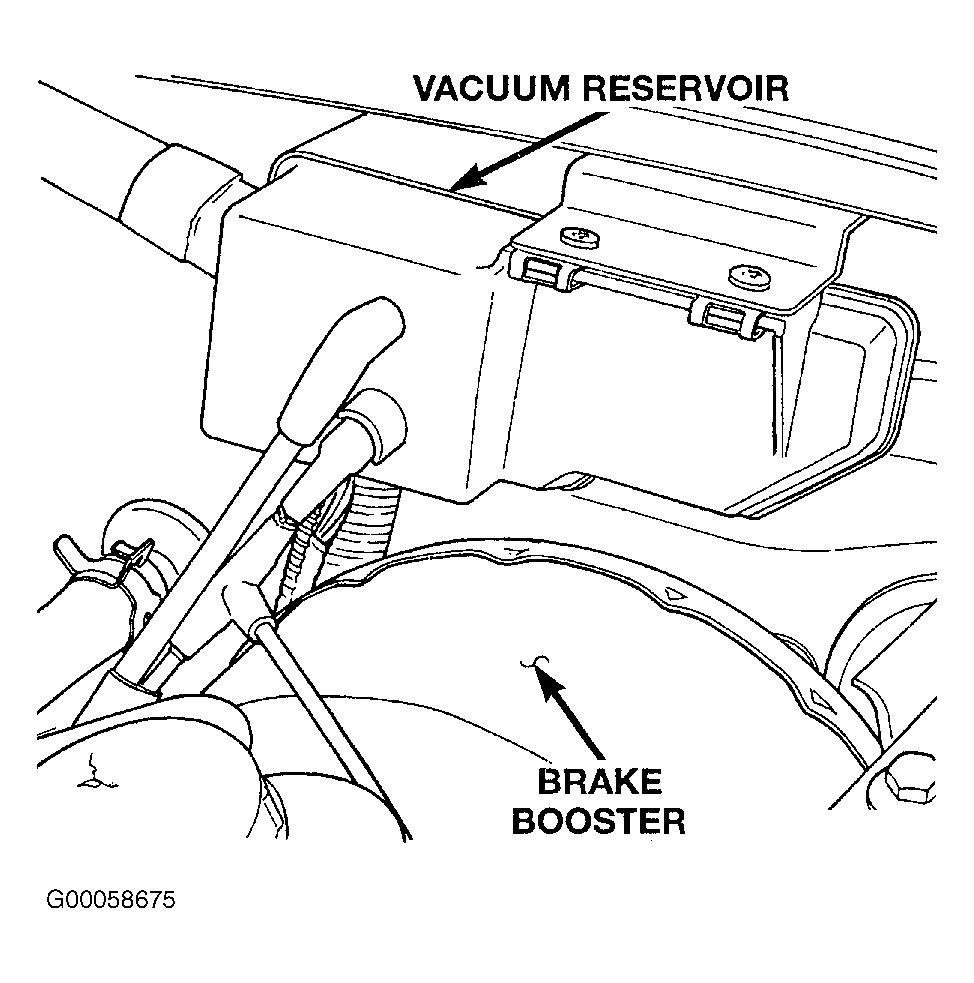

| Vacuum Reservoir | In Engine Compartment, On Fire Wall, Behind Brake Booster. See Figure . |
