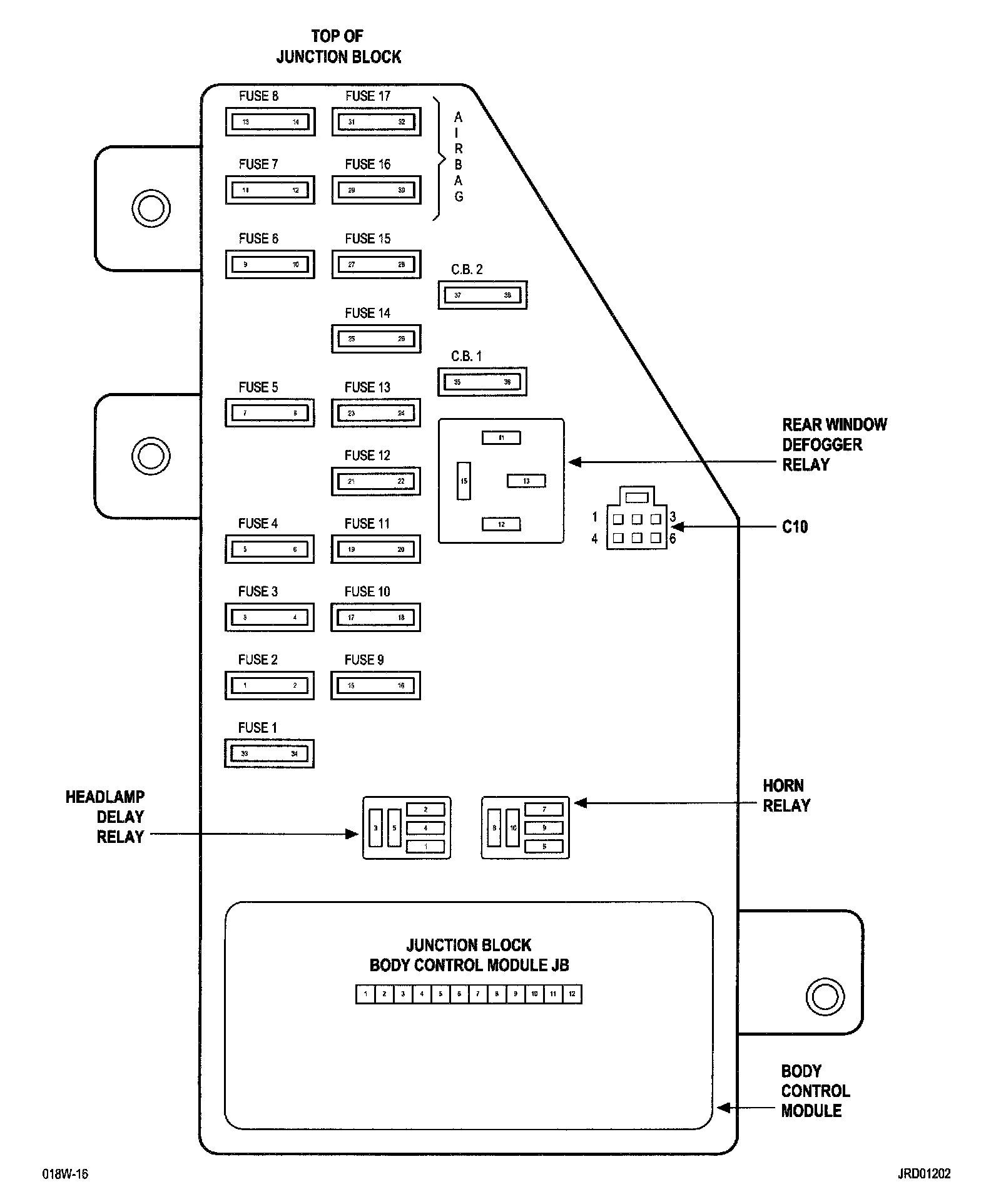

Fuse Block

8w-12-2:

8w-12-3:

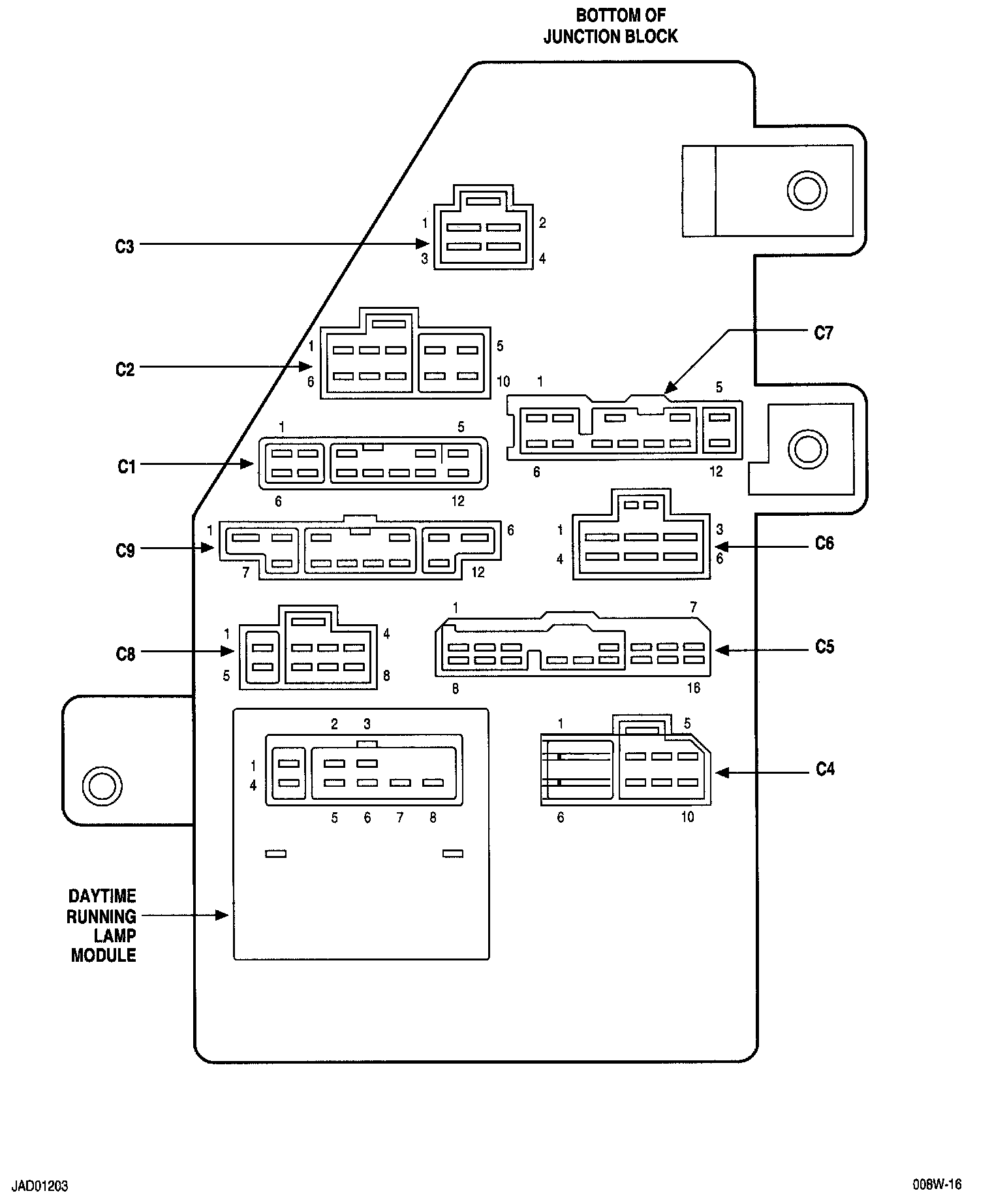

Junction Block/Body Control Module - 12 Way:

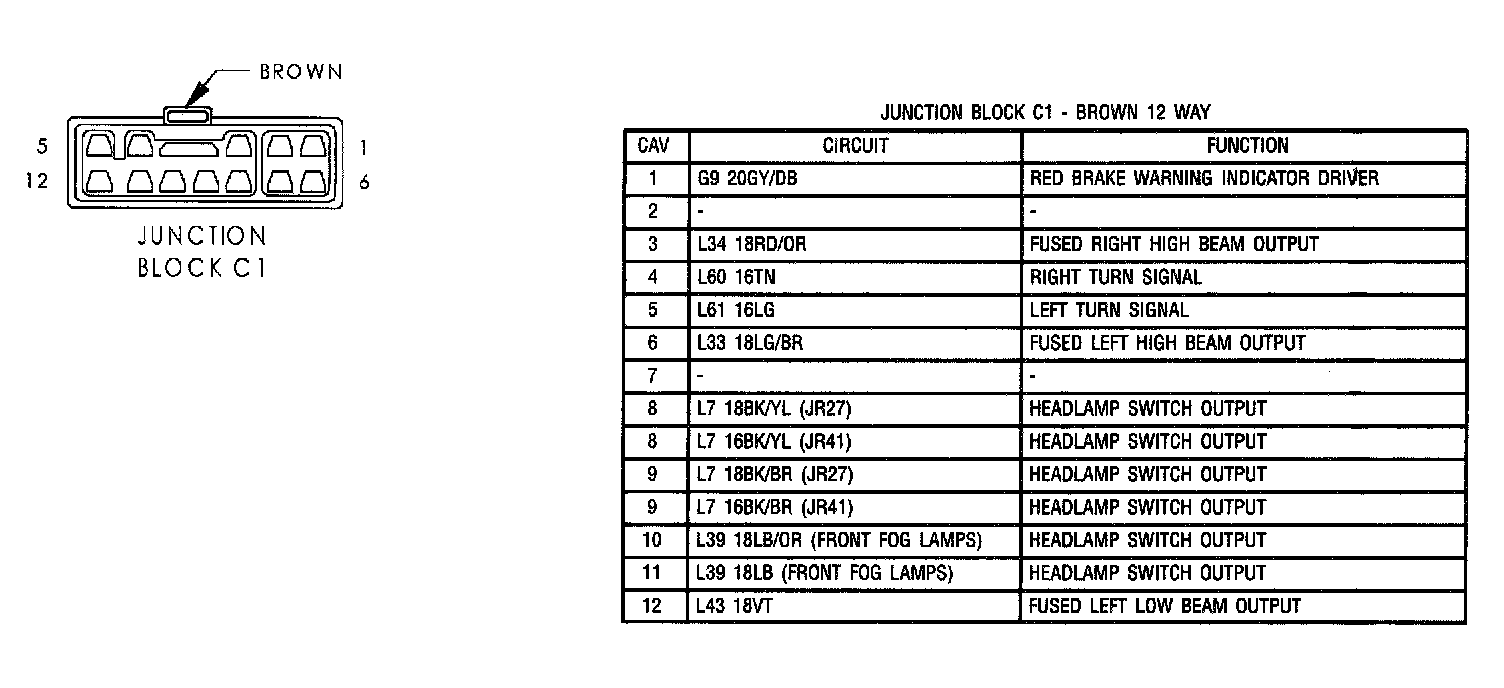

Junction Block C1:

Junction Block C2:

Junction Block C3:

Junction Block C4:

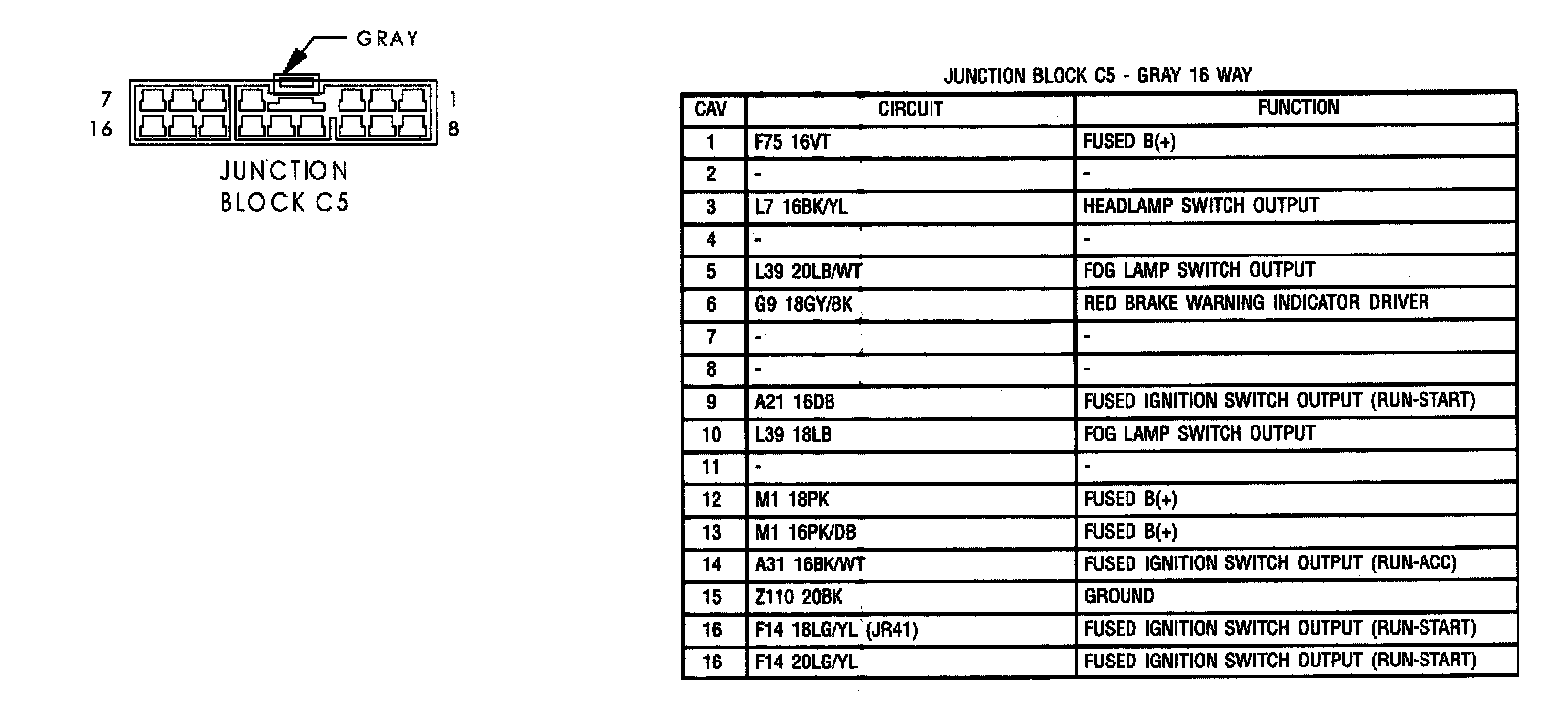

Junction Block C5:

Junction Block C6:

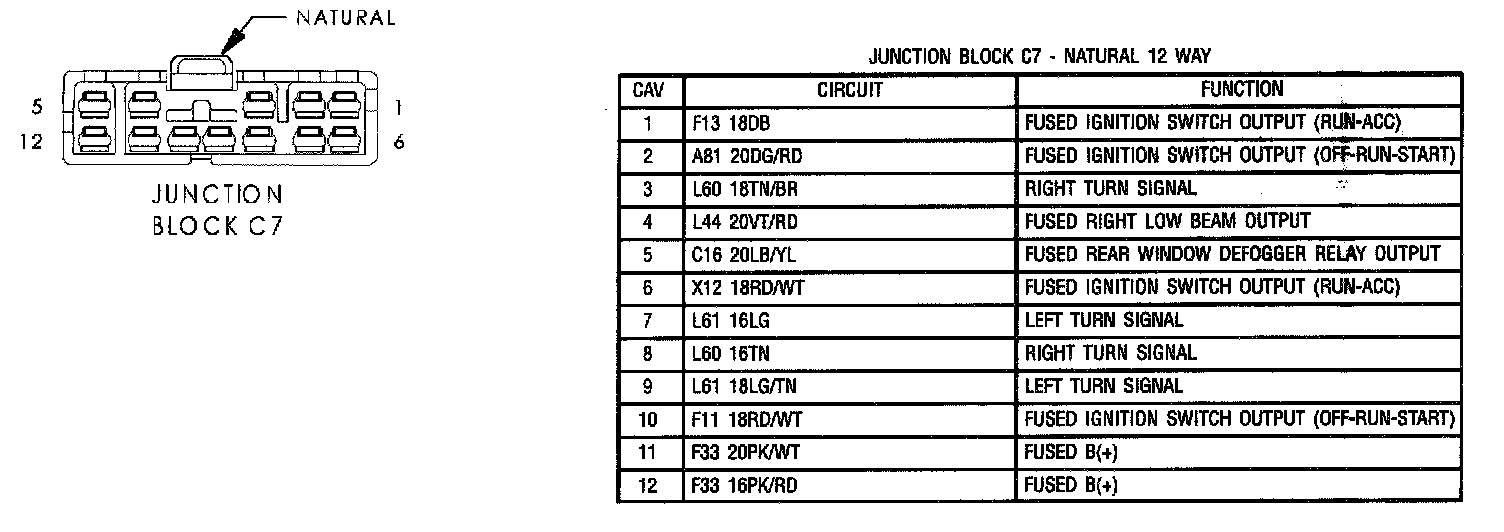

Junction Block C7:

Junction Block C8:

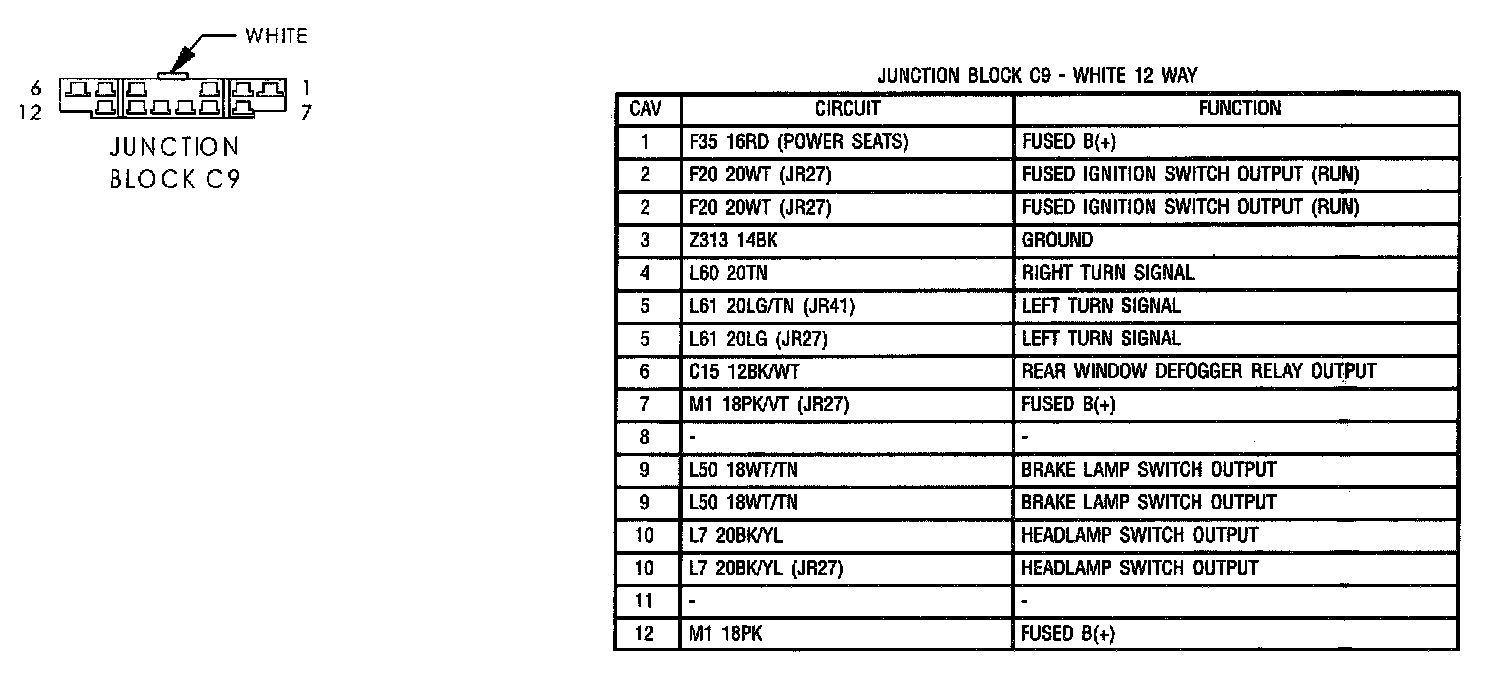

Junction Block C9:

Junction Block C10:
