Side Impact Airbag Control Module

The content of this article reflects the changes called out by TSB 26-12-00.

SIDE IMPACT AIRBAG CONTROL MODULE

REMOVAL
1. Disconnect and isolate the battery negative cable remote terminal.
2. Remove the lower B-pillar trim from the appropriate side of the vehicle.

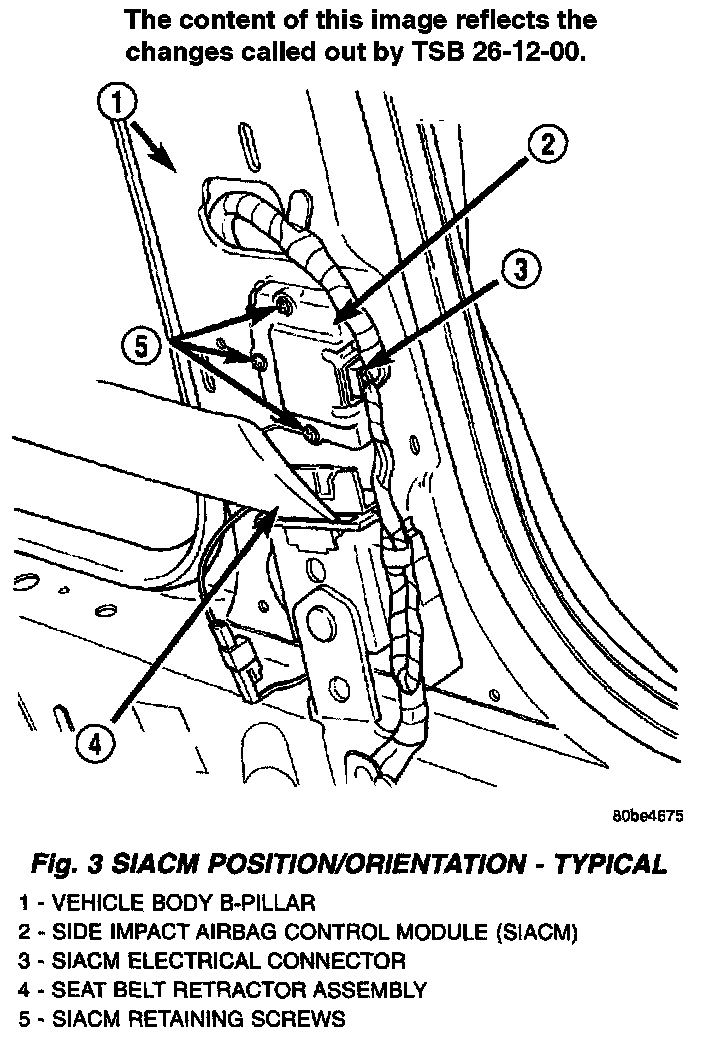

Fig. 3:

3. Disconnect the side impact airbag control module electrical connector.
4. Remove the SIACM retaining screws and remove the module from the vehicle.


INSTALLATION
1. Position the SIACM in B-pillar and install the retaining screws. Torque the screws to 12 Nm (105 in. lbs.).
2. Connect the SIACM electrical connector.
3. Install the lower B-pillar trim.

WARNING: DO NOT CONNECT THE BATTERY NEGATIVE CABLE REMOTE TERMINAL. REFER TO RESTRAINT SYSTEMS / AIRBAG SYSTEMS / TESTING AND INSPECTION FIRST.
