System Specifications





GENERAL SPECIFICATIONS





GEAR RATIOS





BEARING SETTINGS (END PLAY & TURNING TORQUE)





CLUTCH CLEARANCE





OIL PUMP CLEARANCES





INPUT SHAFT

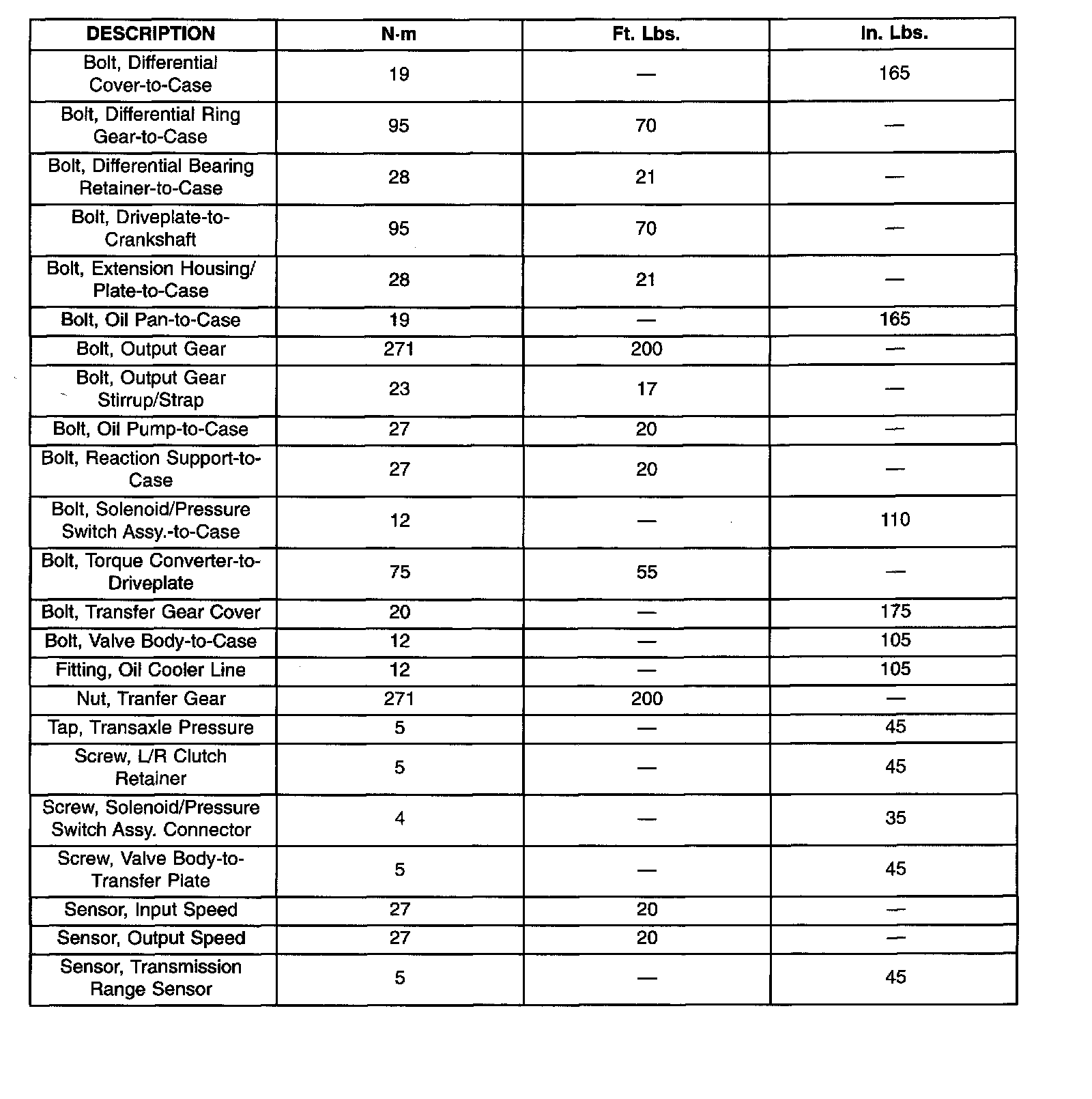

TORQUE SPECIFICATIONS
