System Diagram

Automatic Day/Night Mirror:




Driver Power Mirror (Except Memory):

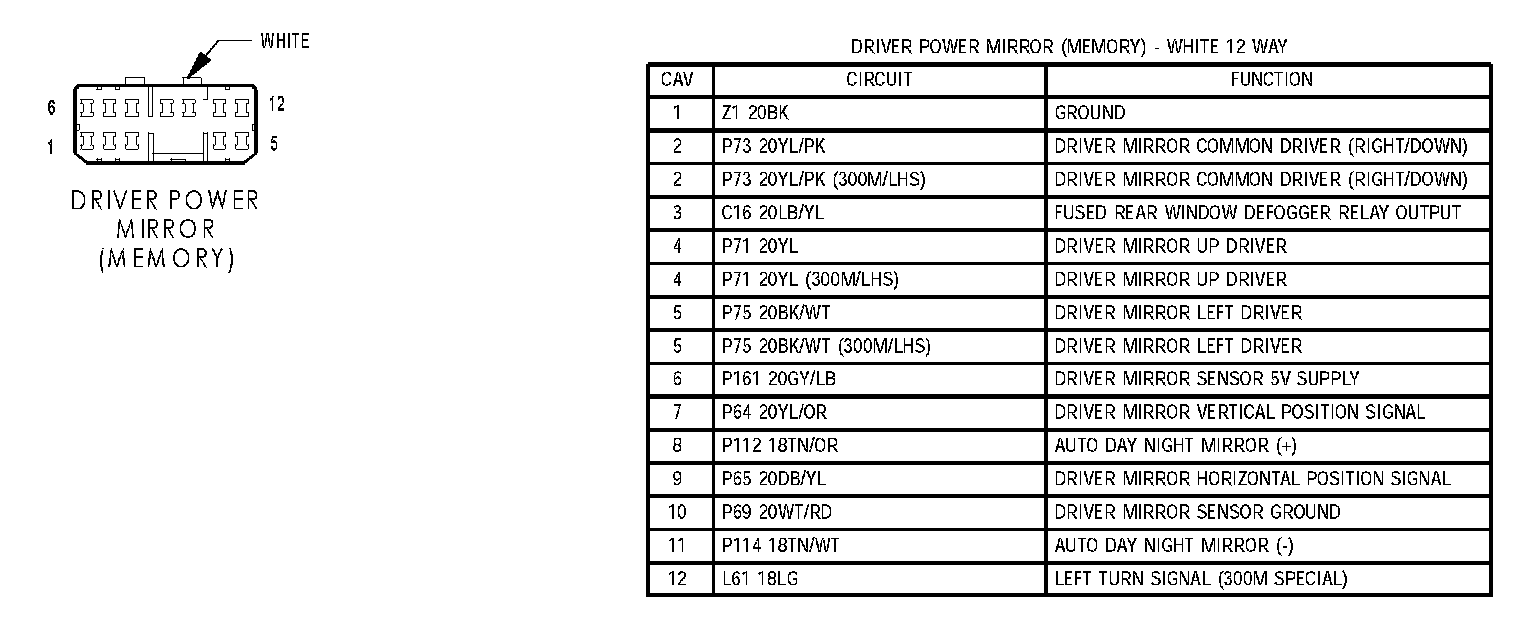

Driver Power Mirror (Memory):




Passenger Power Mirror (Except Memory):




Passenger Power Mirror (Memory):
