Combination Switch: Service and Repair

REMOVAL
1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
2. Remove tilt lever.
3. Remove both upper and lower steering column shrouds. Refer to Body Instrument Panel, Steering Column Shrouds, REMOVAL.

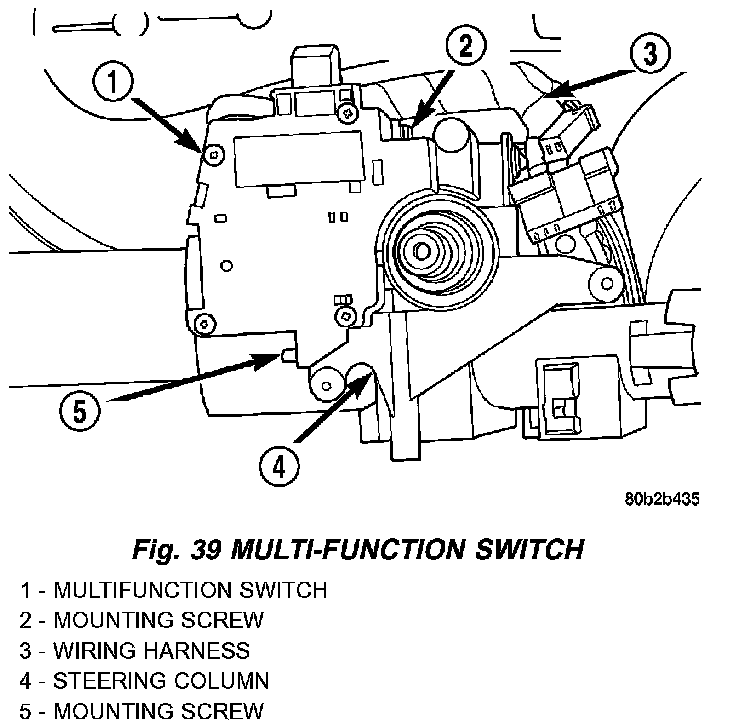

Fig. 39 Multi-Function Switch:

4. Remove multi-function switch mounting screws and connectors.

INSTALLATION
1. Install the multi-function switch connectors and mounting screws.
2. Tighten multi-function switch retaining screws to 17 in. lbs. (2 Nm) torque.
3. Install both upper and lower steering column shrouds. Refer to Body Instrument Panel, Steering Column Shrouds, INSTALLATION.
4. Install the tilt lever.
5. Connect the negative battery cable remote terminal to the remote battery post.
