Harness Routing

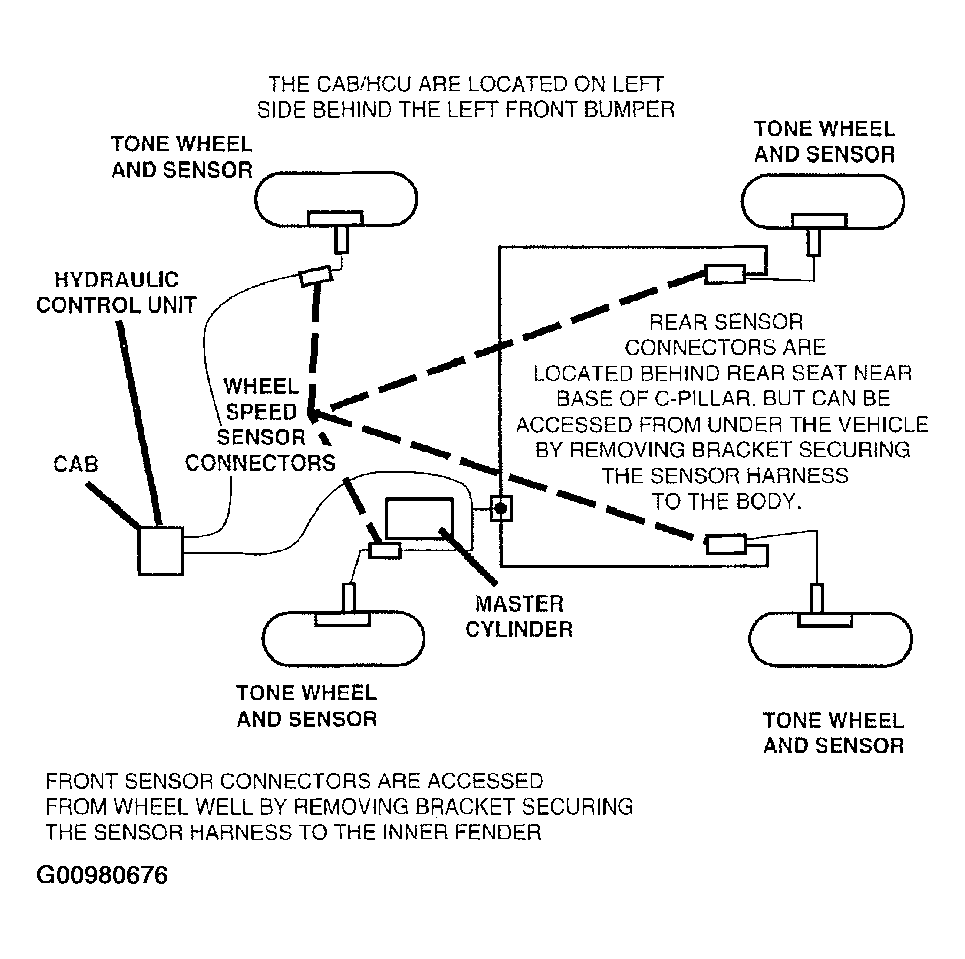

Fig 1: Identifying Harness Routing
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
