A/C Pressure Transducer Connector End View

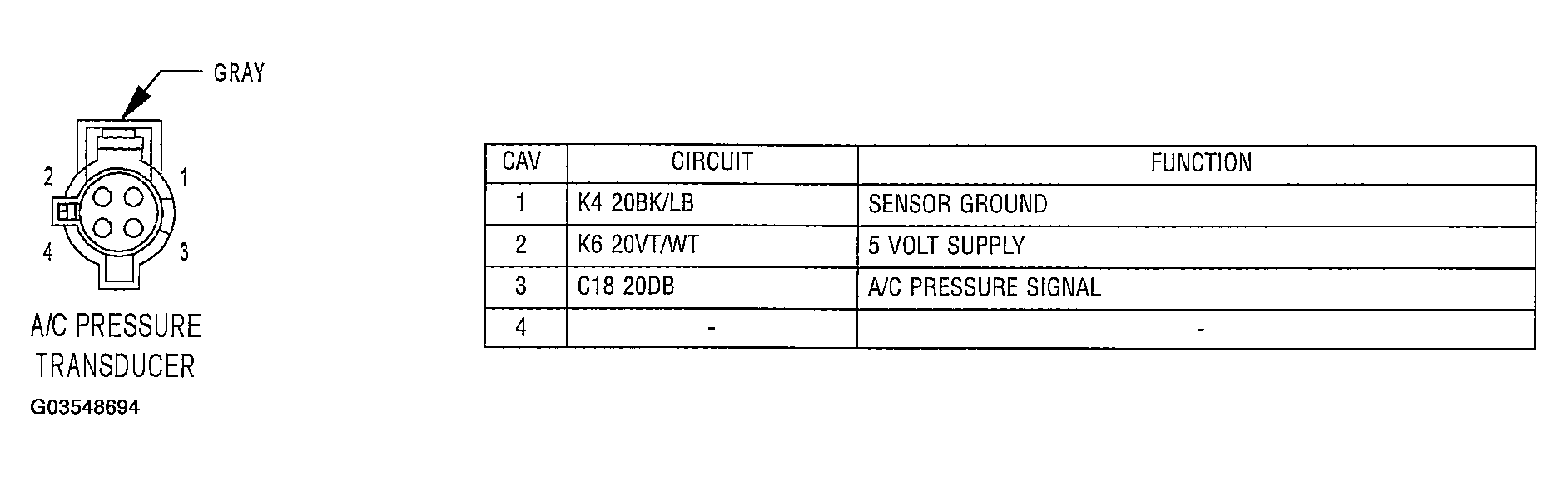

Fig 1: A/C Pressure Transducer
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
