Engine Side Inline Connector End View (C101)

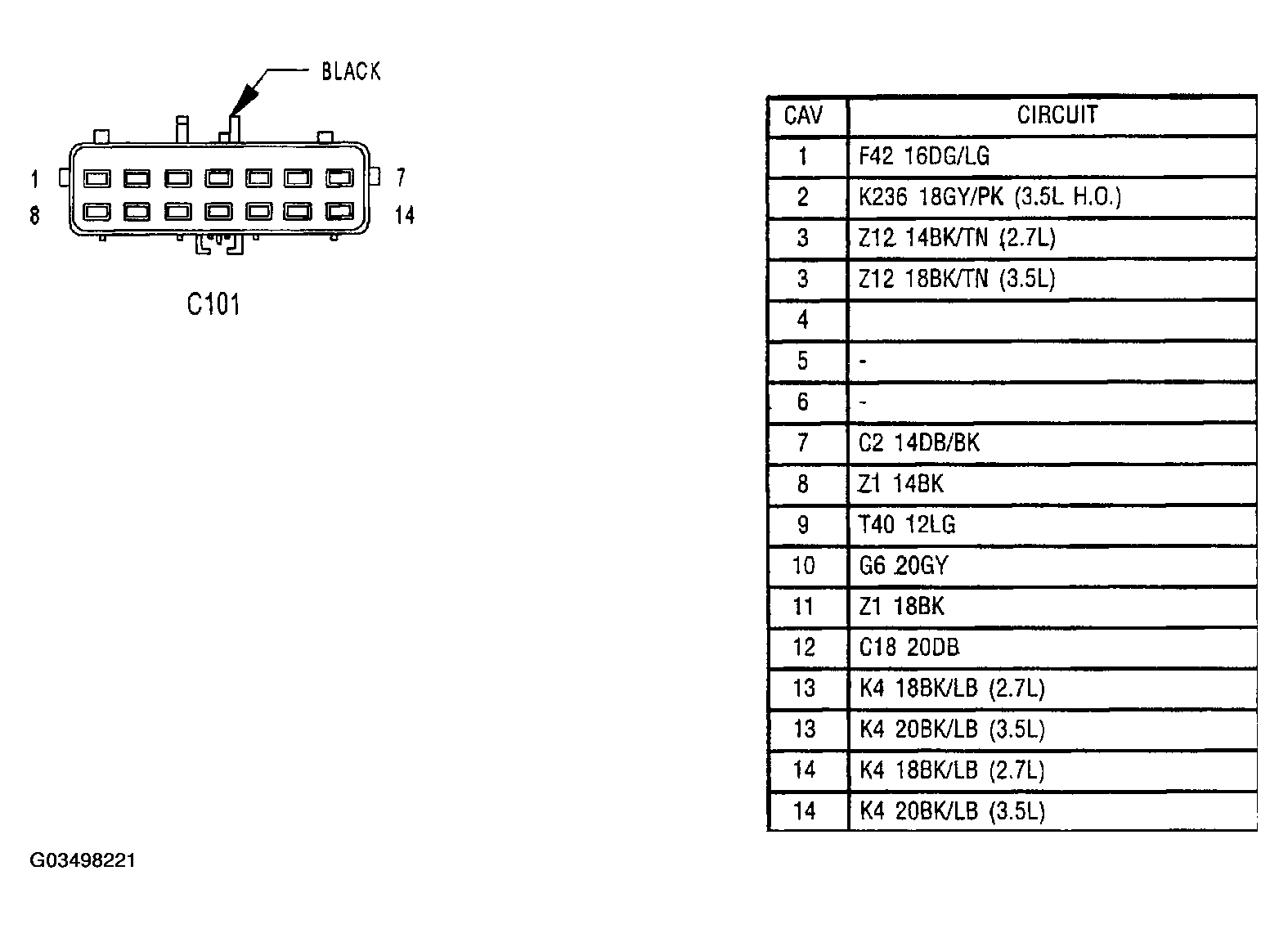

Fig 1: Engine Side Inline Connector End View (C101)
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
