Manifold Pressure/Vacuum Sensor: Locations

2.0L:

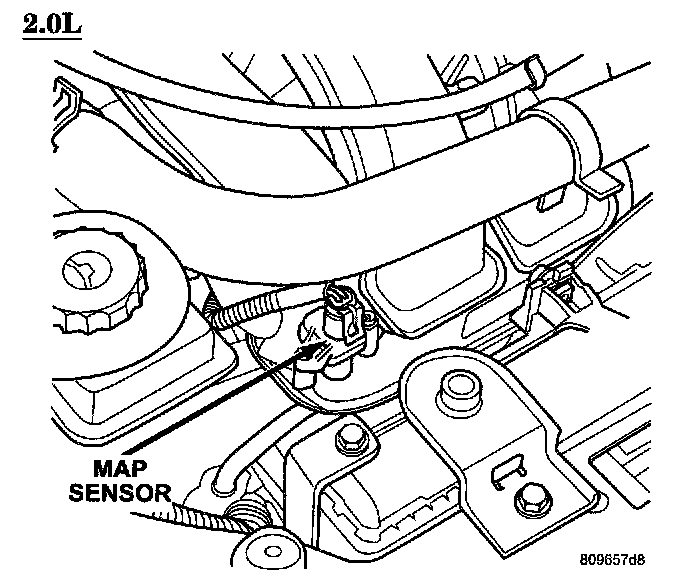

Fig.26 Intake Manifold/Map Sensor Location:




The MAP sensor mounts to the intake manifold.
