System Specifications




BEARING SETTINGS (END PLAY & TURNING TORQUE):




CLUTCH CLEARANCES:




OIL PUMP CLEARANCES:




INPUT SHAFT:

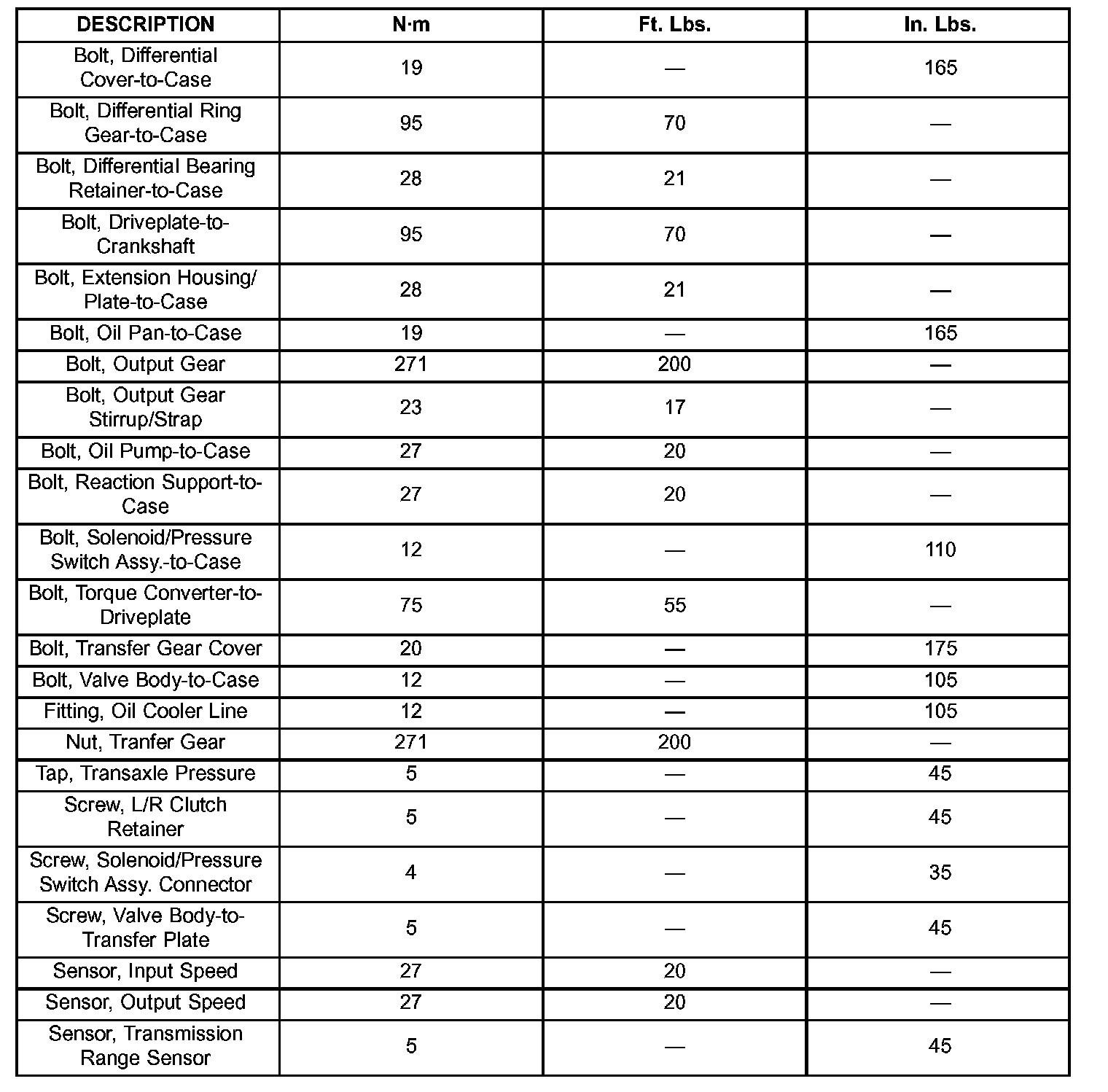

TORQUE SPECIFICATIONS:




GEAR RATIOS:




GENERAL SPECIFICATIONS:






SPECIFICATIONS - 41TE TRANSAXLE
