Windshield Washer Switch: Service and Repair

Wiper/Washer Switch Replacement

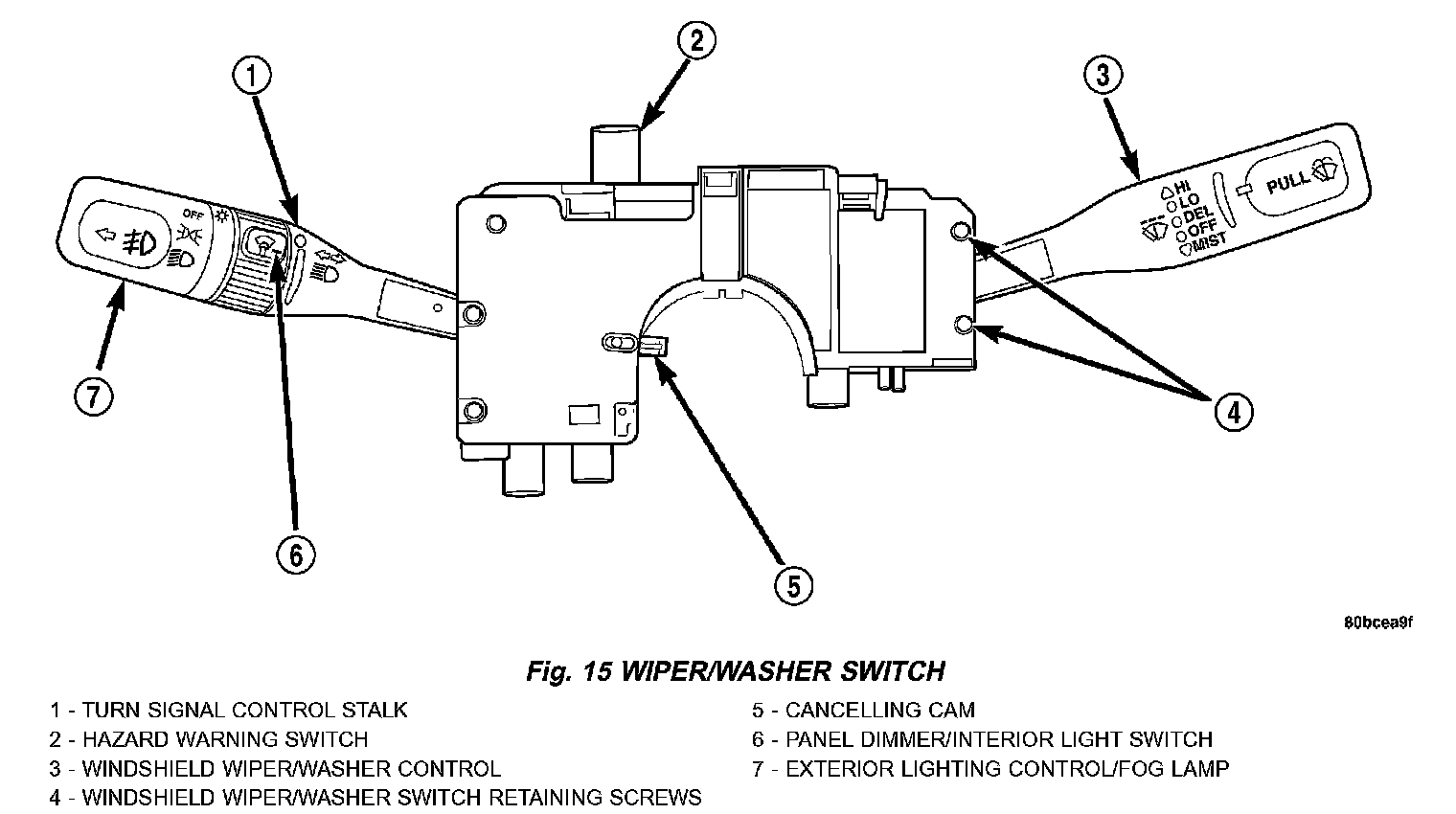

Fig.15 Wiper/Washer Switch:

REMOVAL
1. Remove the Multi-Function Switch from the vehicle Refer to Electrical, Lamps/Lighting - Exterior, Multi-Function Switch, Removal.
2. Remove the two retaining screws to the Wiper/Washer Switch.
3. Separate the two switches.

INSTALLATION
1. Attach the two switches.
2. Install the two retaining screws to the Wiper/ Washer Switch.
3. Install the Multi-Function Switch from the vehicle. Refer to Electrical, Lamps/Lighting - Exterior, Multi-Function Switch, Installation.
