Right Door Lock Switch Connector End View

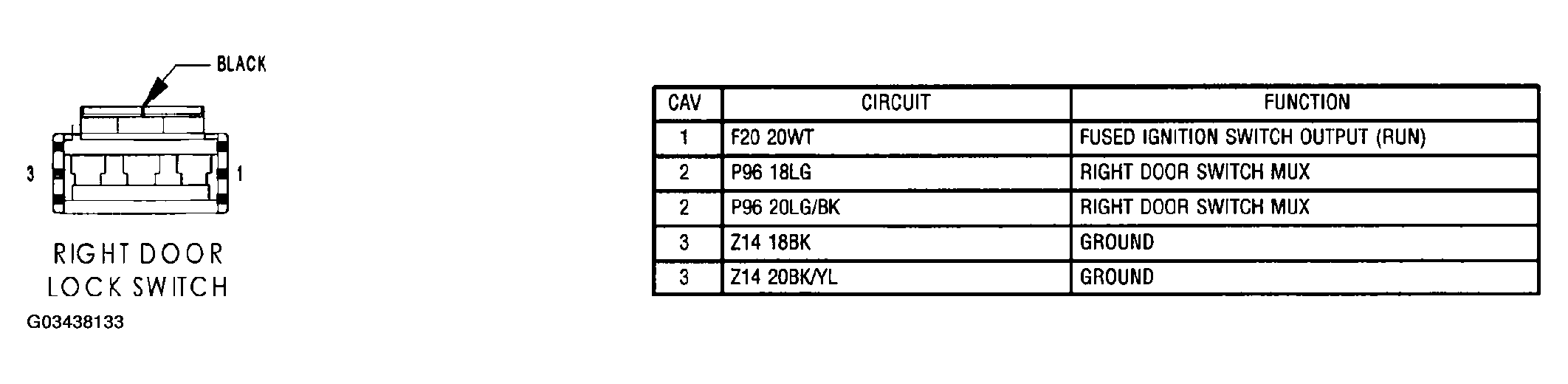

Fig 1: Right Door Lock Switch Connector End View
G03438133Courtesy of CHRYSLER GROUP, LLC
