Fan Motor

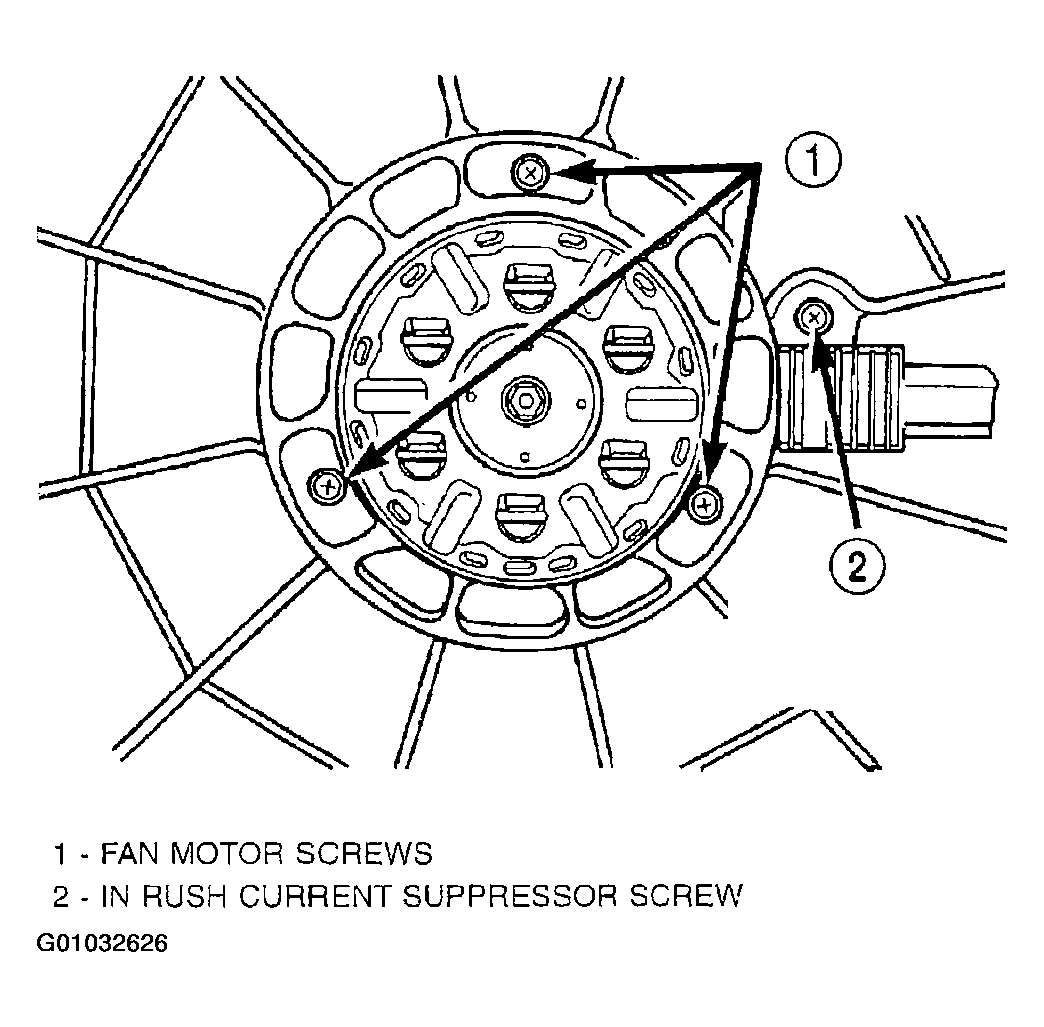

  1. Install the fan motor on shroud and tighten screws to 3.8 N.m (34 in. lbs.). (Figure).
  2. Install screw attaching the in-rush current suppressor and tighten to 2.6 N.m (23 in. lbs.). (Figure).
  3. Install the fan on motor shaft.
  4. Install the radiator fan assembly. Refer to INSTALLATION .
