Shift Crossover Shaft: Installation

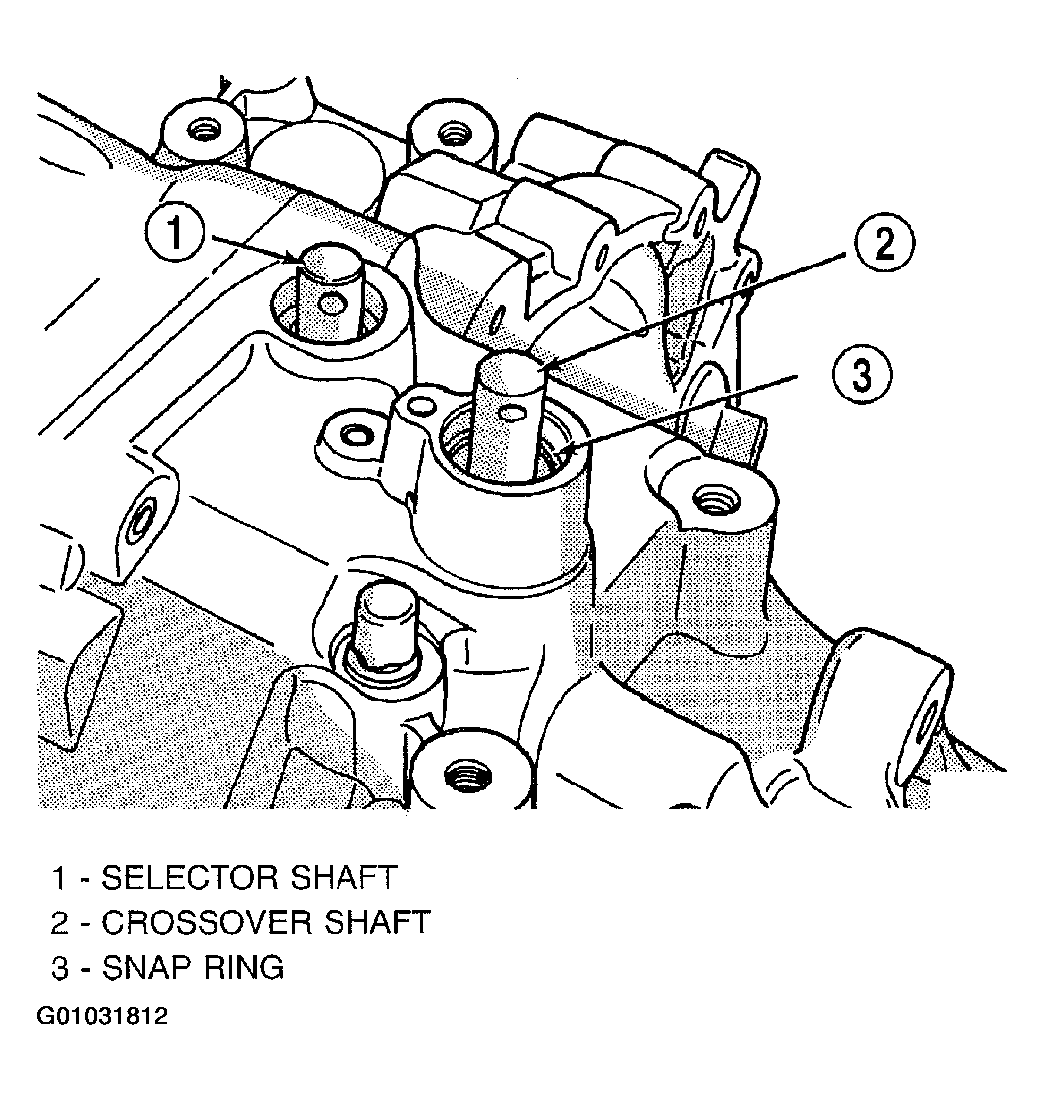

  1. Install crossover shaft to case and install snap ring. (Figure).
  2. Install the crossover shaft seal.
  3. Assemble transaxle.
