C105 Connector End View

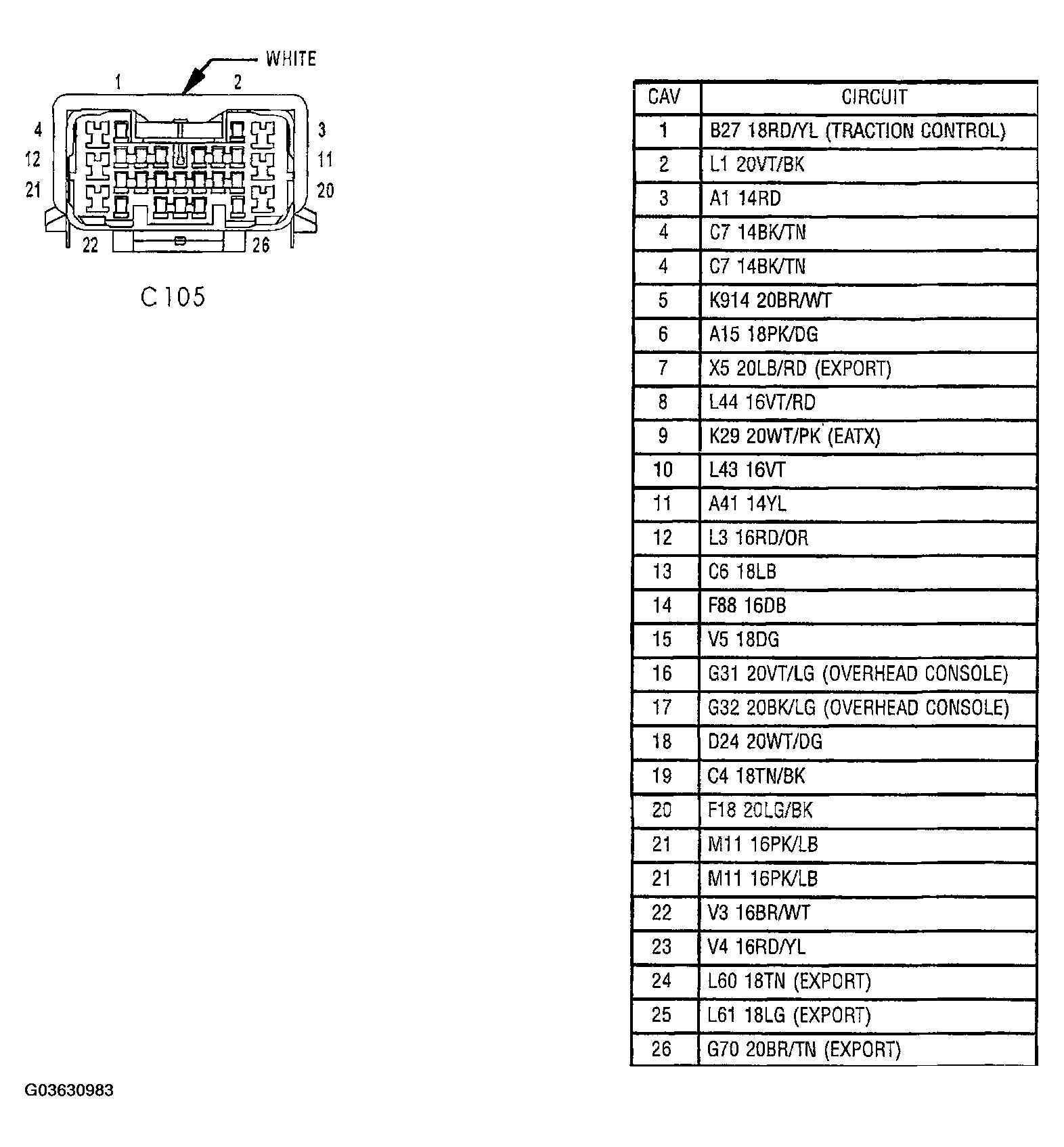

Fig 1: C105 Connector End View
G03630983Courtesy of CHRYSLER GROUP, LLC

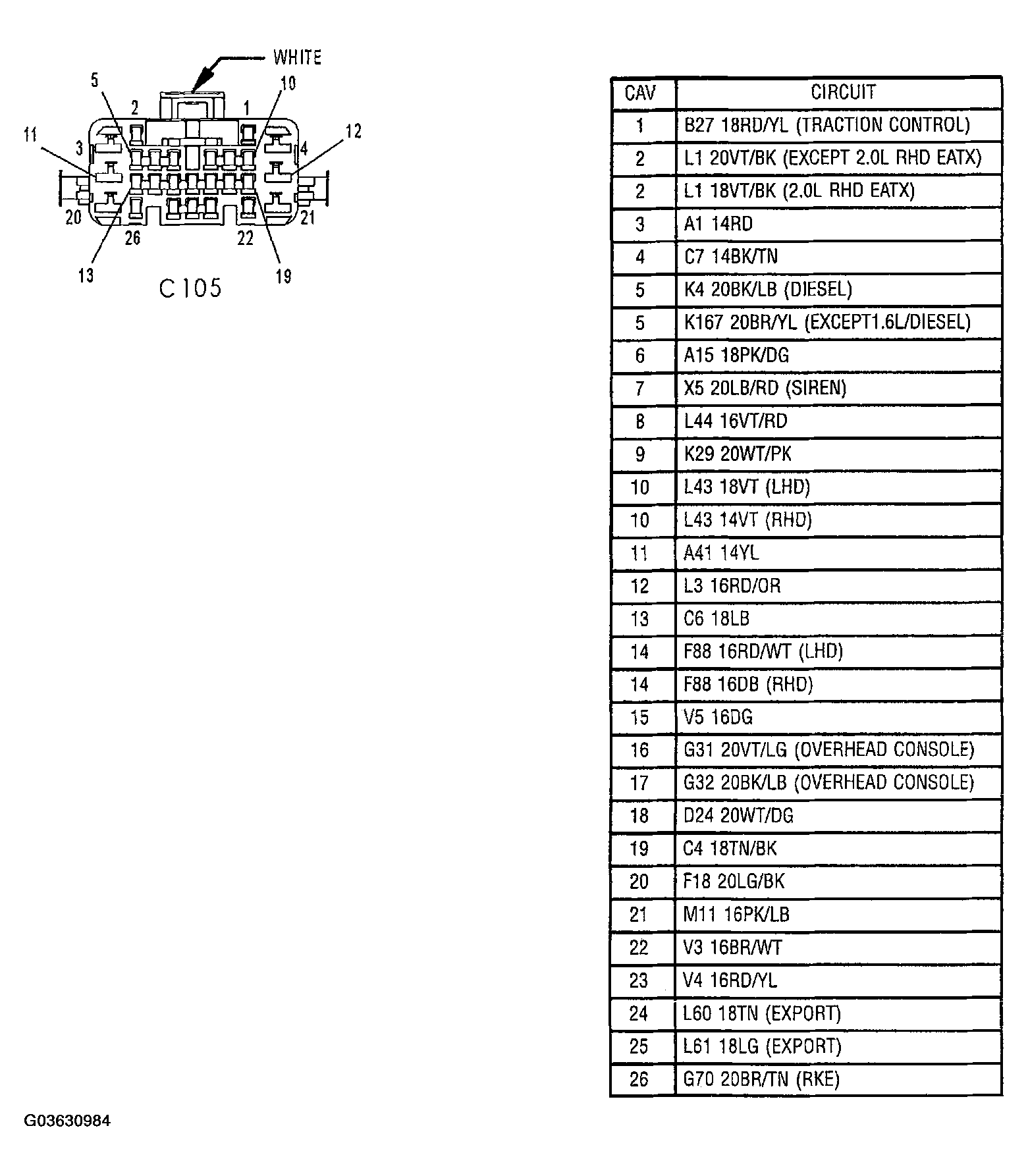

Fig 1: C105 Connector End View
G03630984Courtesy of CHRYSLER GROUP, LLC
