Removal & Installation

WARNING: This page is about a different car, the 2002 Dodge Ram Wagon, 2002 Dodge Ram Van, 2001 Dodge Ram Wagon, and 2001 Dodge Ram Van. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before removing Central Timer Module (CTM), use scan tool to view and record settings for programmable features. Use these settings to program replacement CTM.

Turn ignition off. Disconnect negative battery cable. Remove engine cover from passenger compartment. Remove 3 Central Timer Module (CTM) retaining screws from instrument panel left center support. See Fig 1 .
Slide CTM away from mounting enough to gain access to connectors. Disconnect connectors and remove CTM. To install, reverse removal procedure. Using scan tool, reset programmable features.

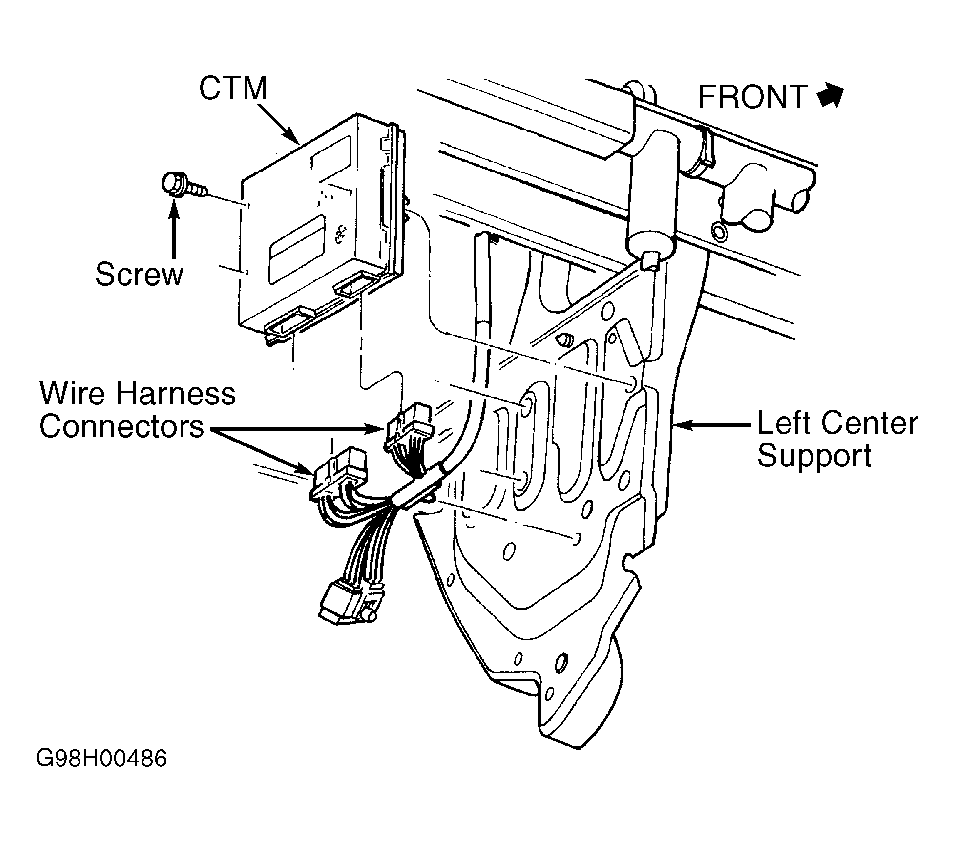

Fig 1: Removing Central Timer Module

Courtesy of DAIMLERCHRYSLER CORP.
