Chime Inoperative With Decklid Open

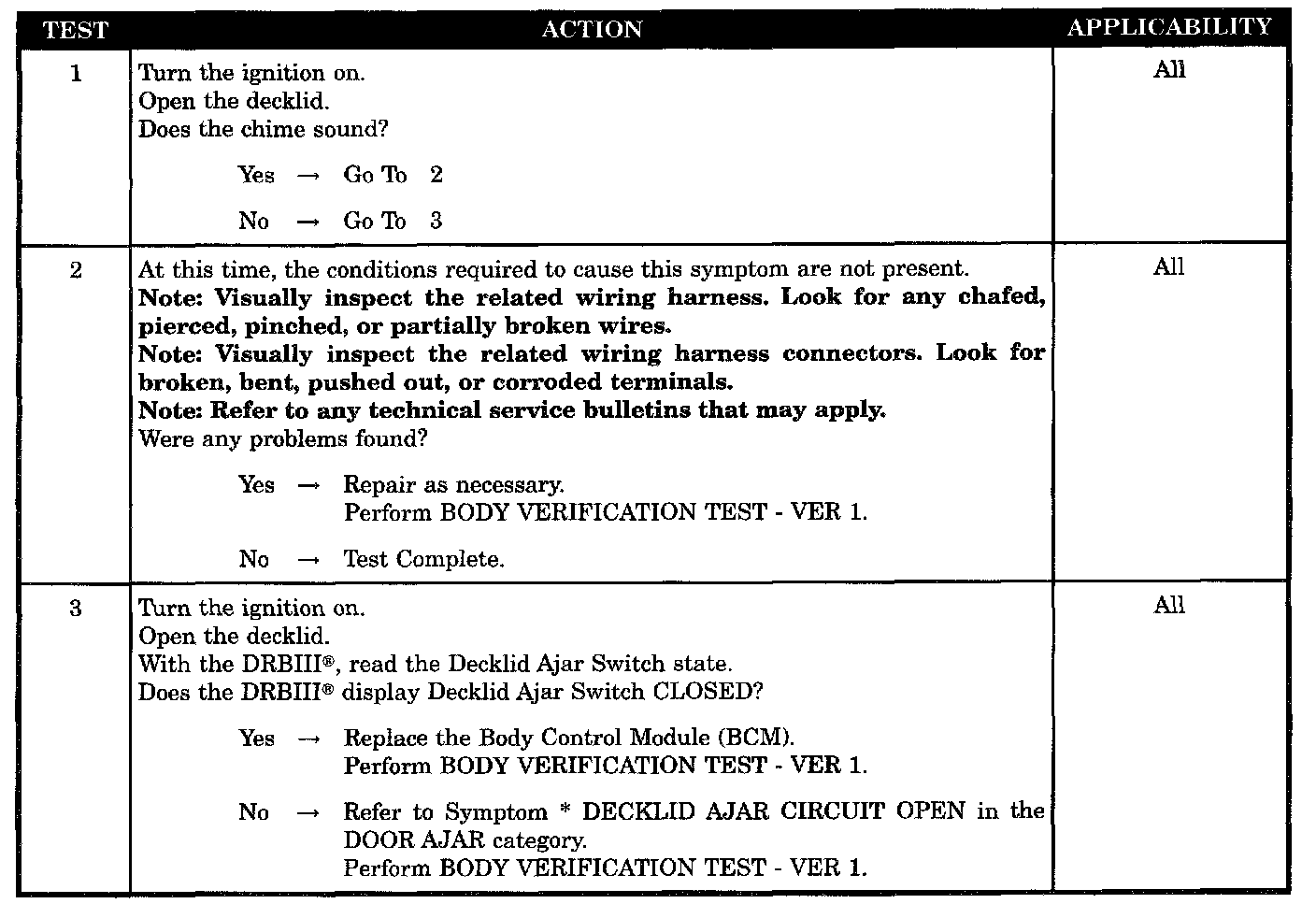

Tests 1 - 3:





SYMPTOM
CHIME INOPERATIVE WITH DECKLID OPEN

POSSIBLE CAUSES
- Intermittent problem
- Decklid ajar circuit open
- Read decklid ajar SW state with the DRB
