Chime Sounds With Driver Door Open

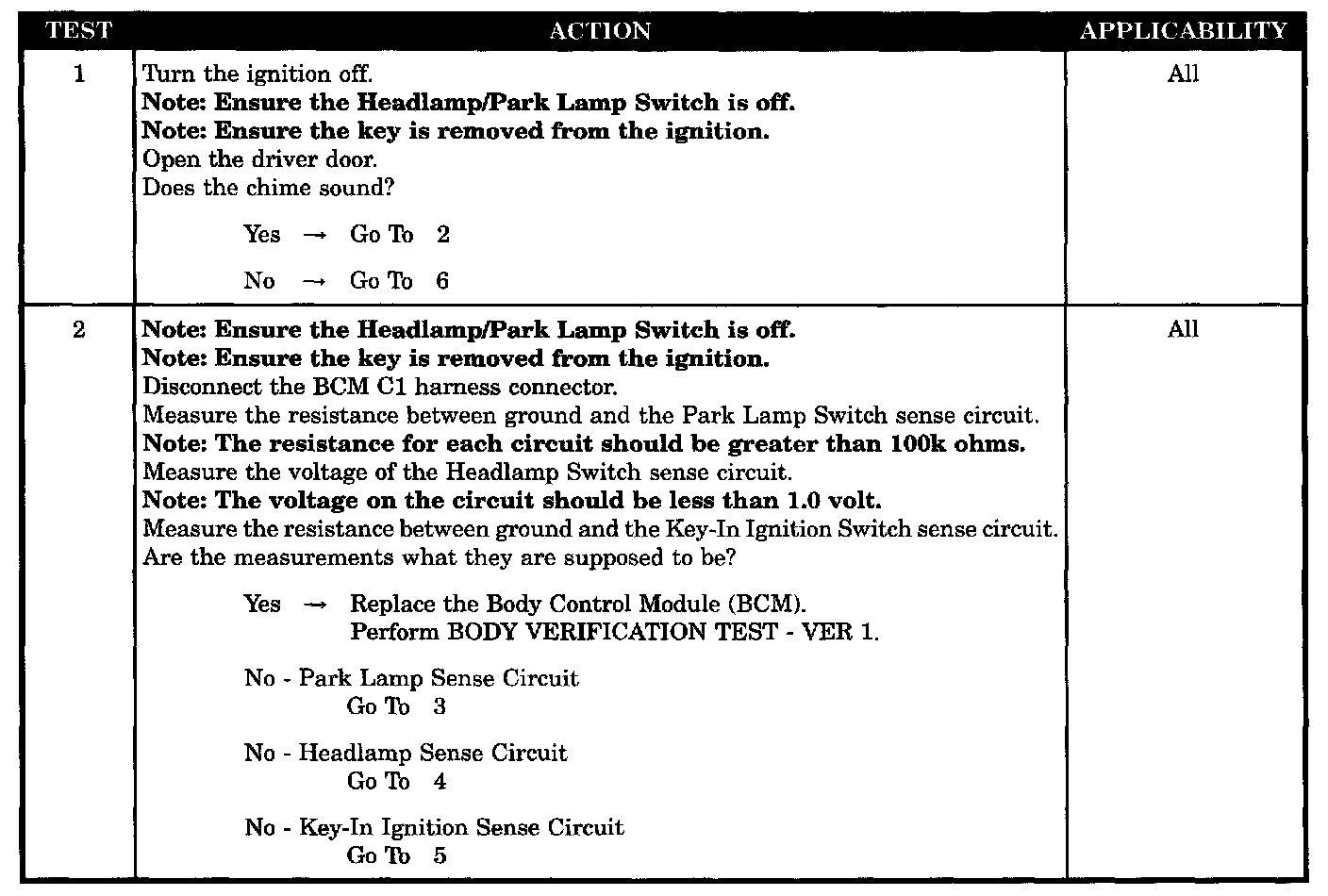

Tests 1 - 2:

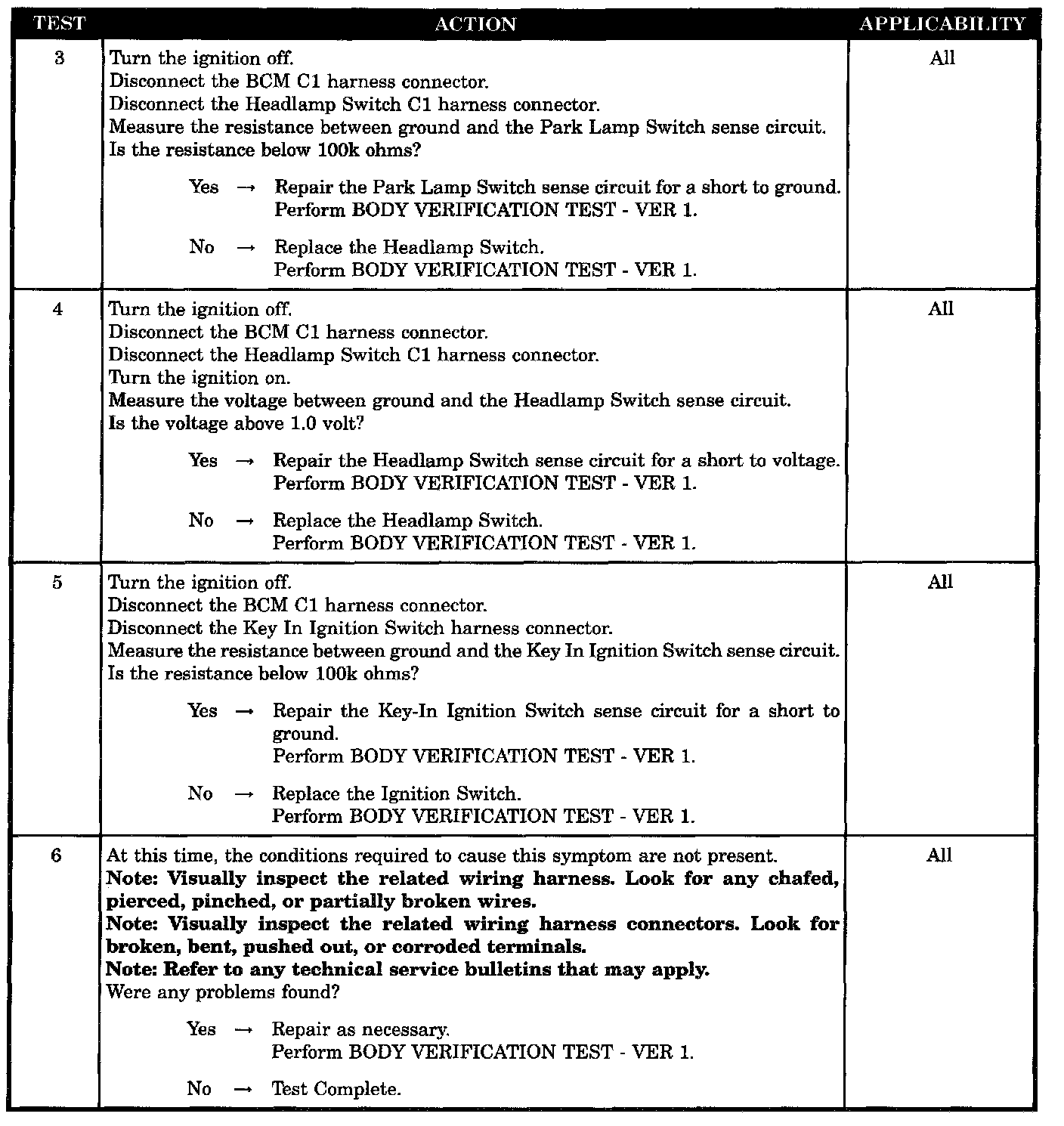

Tests 3 - 6:

SYMPTOM
CHIME SOUNDS WITH DRIVER DOOR OPEN

POSSIBLE CAUSES
- Body control module
- Park lamp switch sense circuit short to ground
- Headlamp switch sense circuit short to voltage
- Key in ignition switch sense circuit shorted to ground
- Intermittent problem
- Headlamp switch (shorted internally)
- Park lamp switch (shorted internally)
- Key in ignition switch (shorted internally)
