Body Control Module

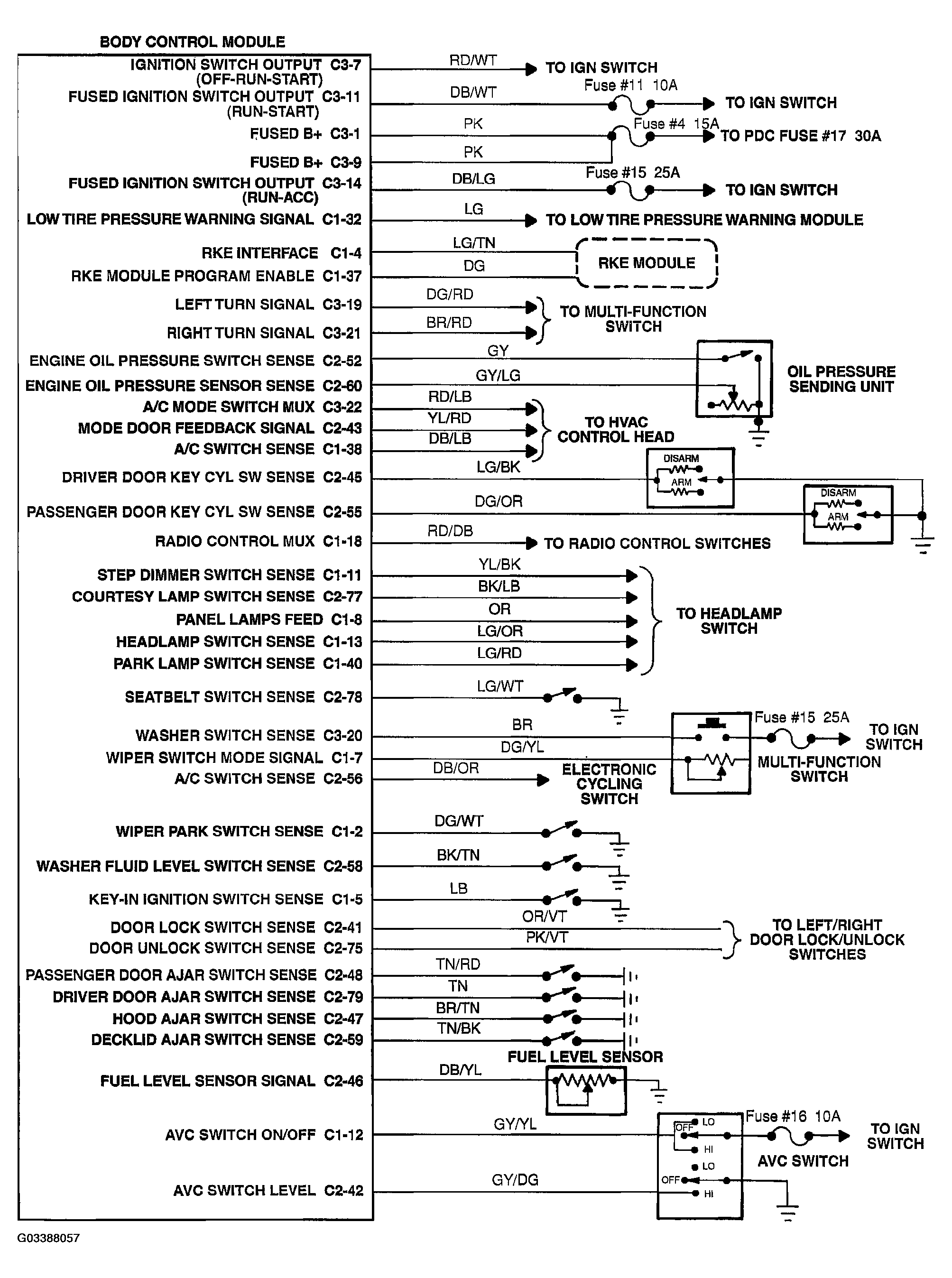

Fig 1: Body Control Module Schematic Diagram (1 Of 2)
G03388057Courtesy of DAIMLERCHRYSLER CORP.

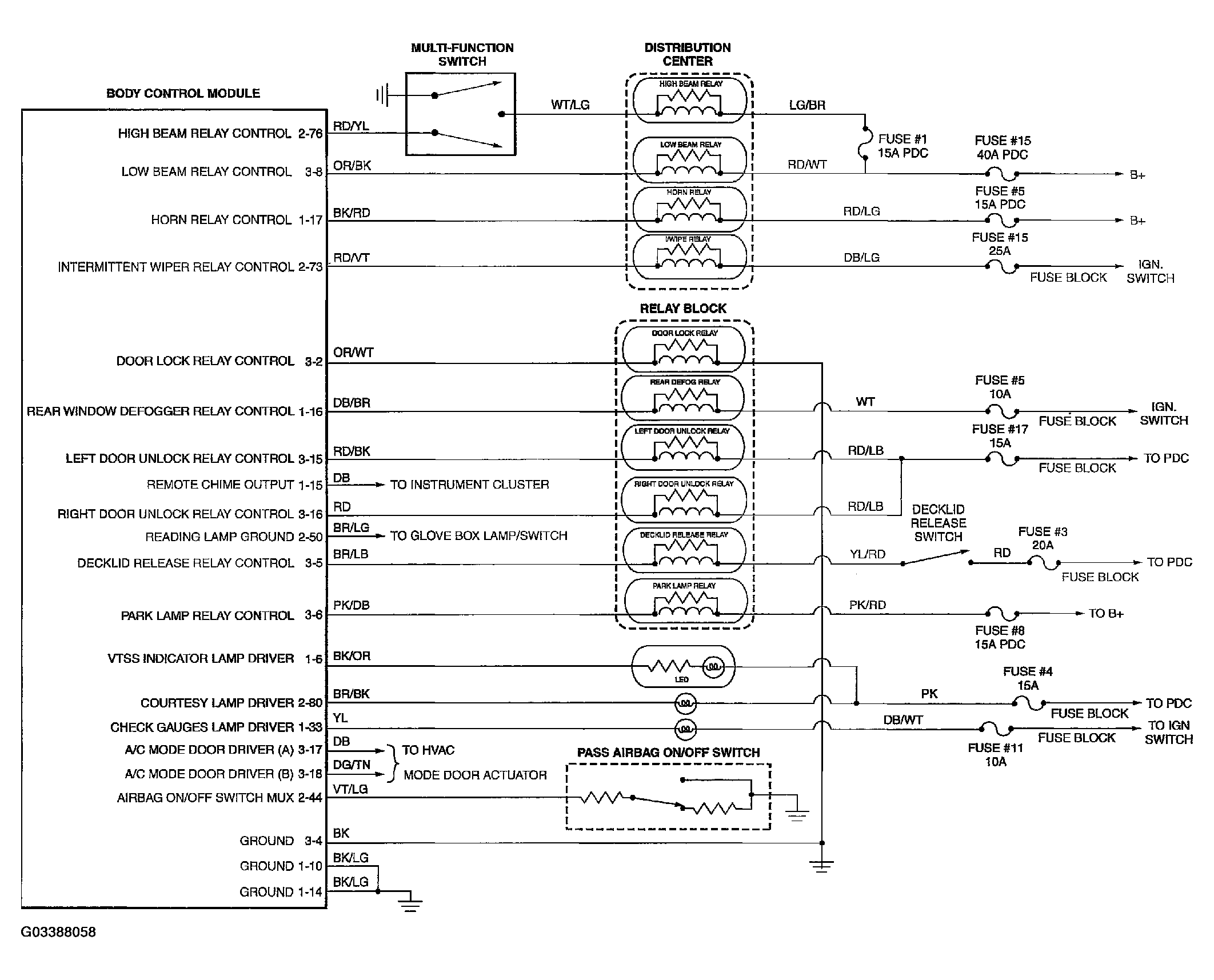

Fig 2: Body Control Module Schematic Diagram (2 Of 2)
G03388058Courtesy of DAIMLERCHRYSLER CORP.
