Air Bag Control Module Connector End View C2

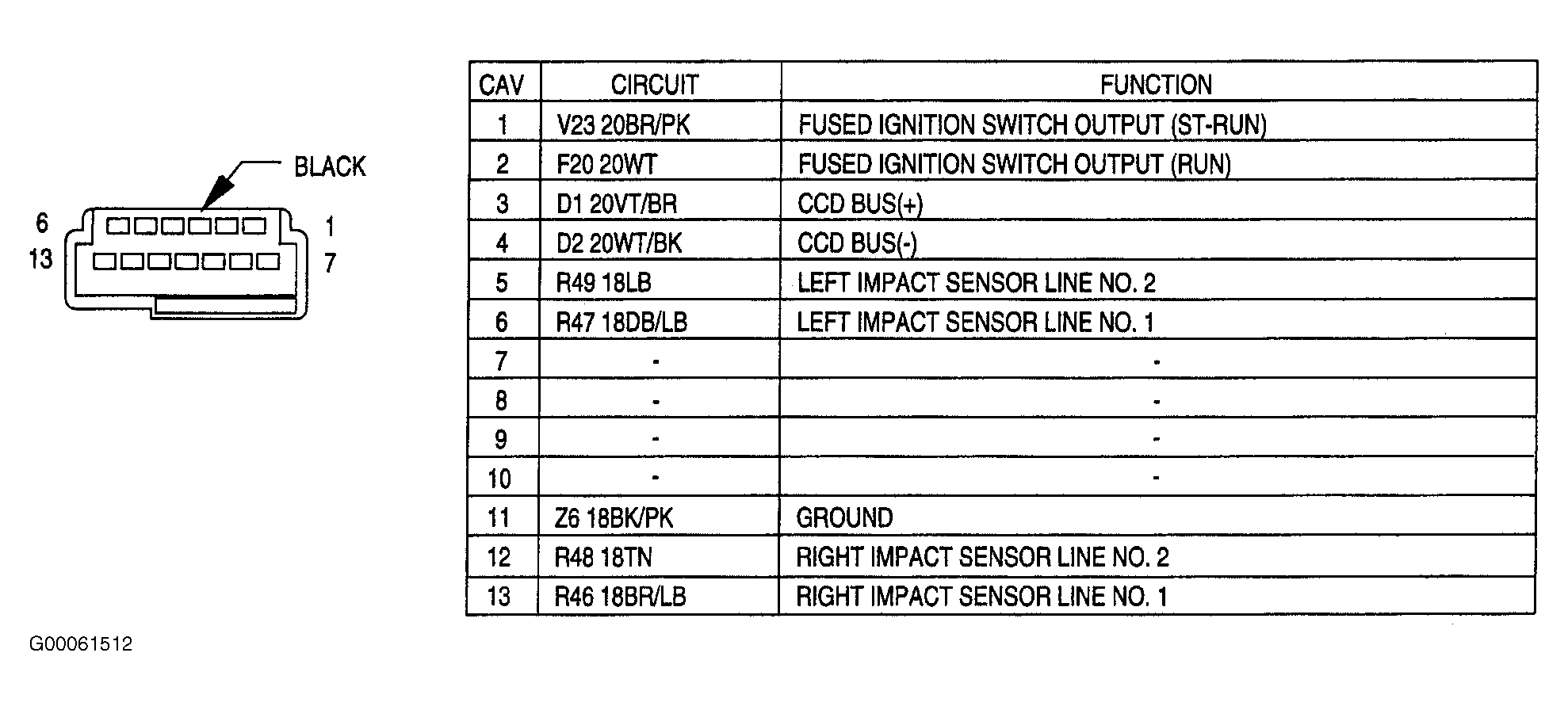

Fig 1: Air Bag Control Module Connector End View C2 Pin-Out 1997 & 1999
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
