Powertrain Control Module C2 Connector End View

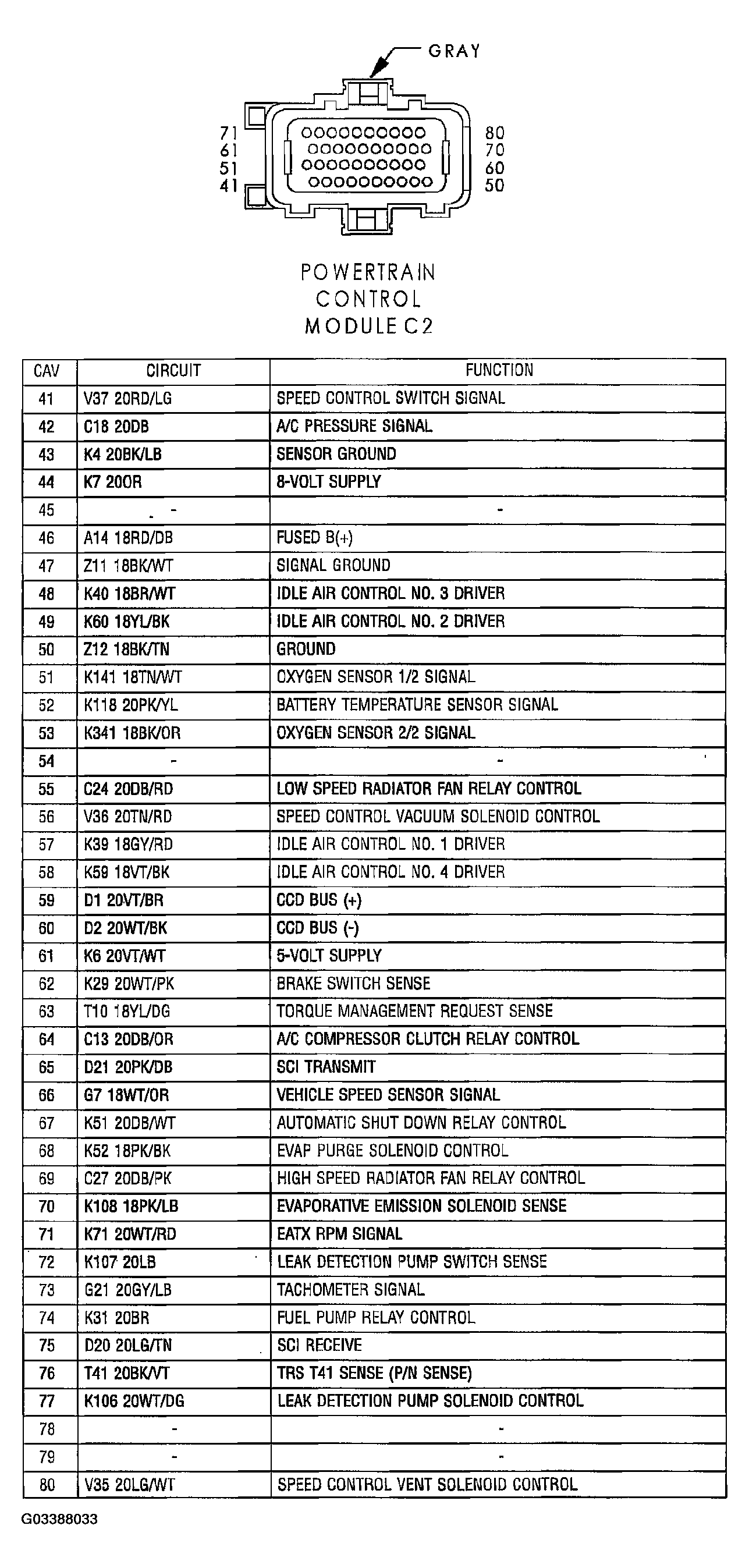

Fig 1: Powertrain Control Module C2 Connector End View
G03388033Courtesy of CHRYSLER GROUP, LLC


Fig 1: Powertrain Control Module C2 Connector End View
G03388152Courtesy of CHRYSLER GROUP, LLC
