Micro Relay Center

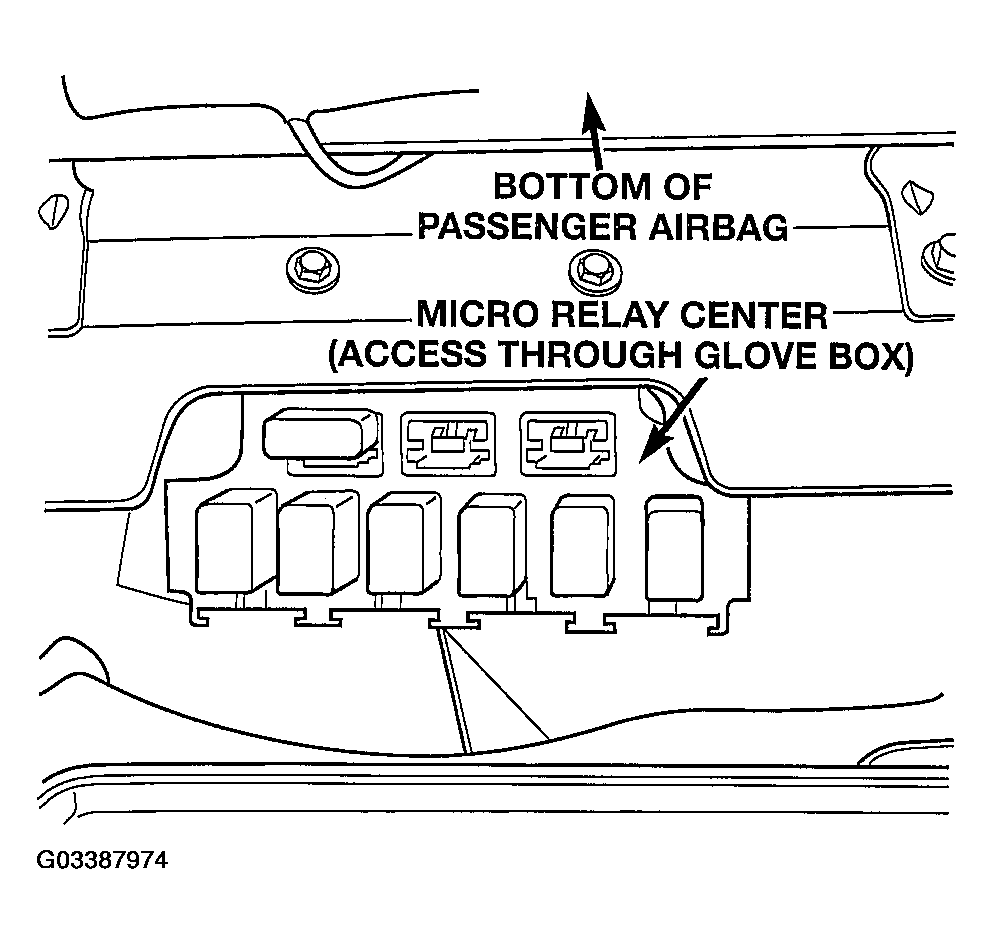

Fig 1: Identifying Micro Relay Center (1 Of 2)
G03387974Courtesy of DAIMLERCHRYSLER CORP.

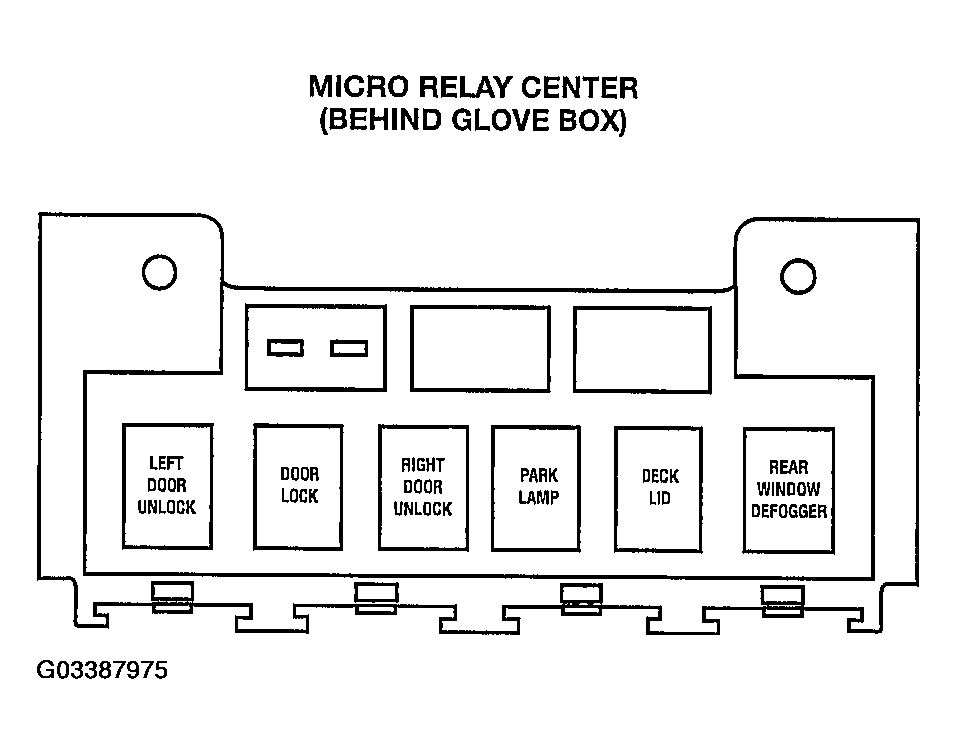

Fig 2: Identifying Micro Relay Center (2 Of 2)
G03387975Courtesy of DAIMLERCHRYSLER CORP.
