Battery Tray: Removal

  1. Remove battery (Refer to BATTERY - REMOVAL ).
  2. Remove nut and four bolts from battery tray (Fig. Fig 1).

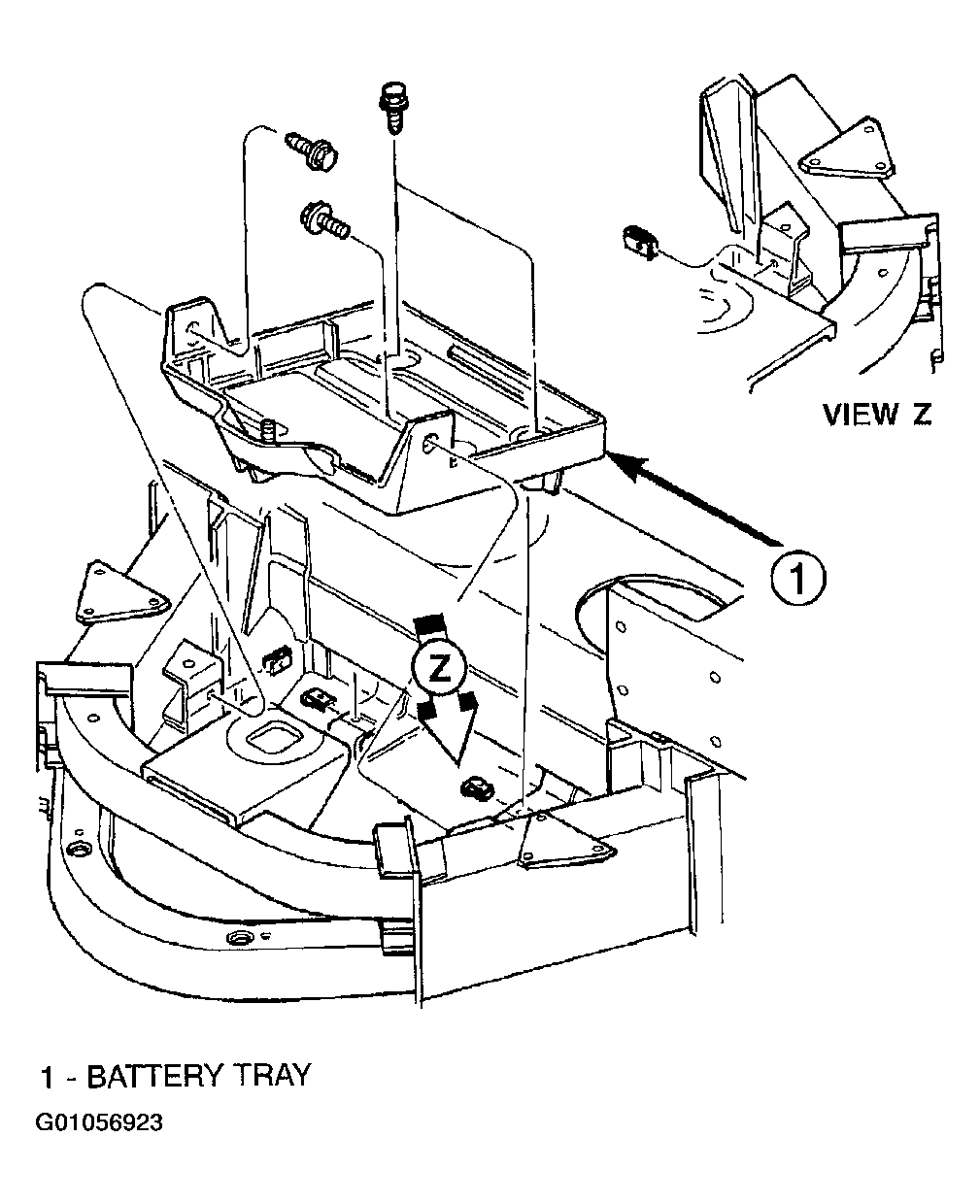

    Fig 1: Removing Battery Tray
    G01056923Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove battery tray from vehicle.
