A/C Mode Door Input Shorted To Battery

For testing procedures, see Fig 1 .

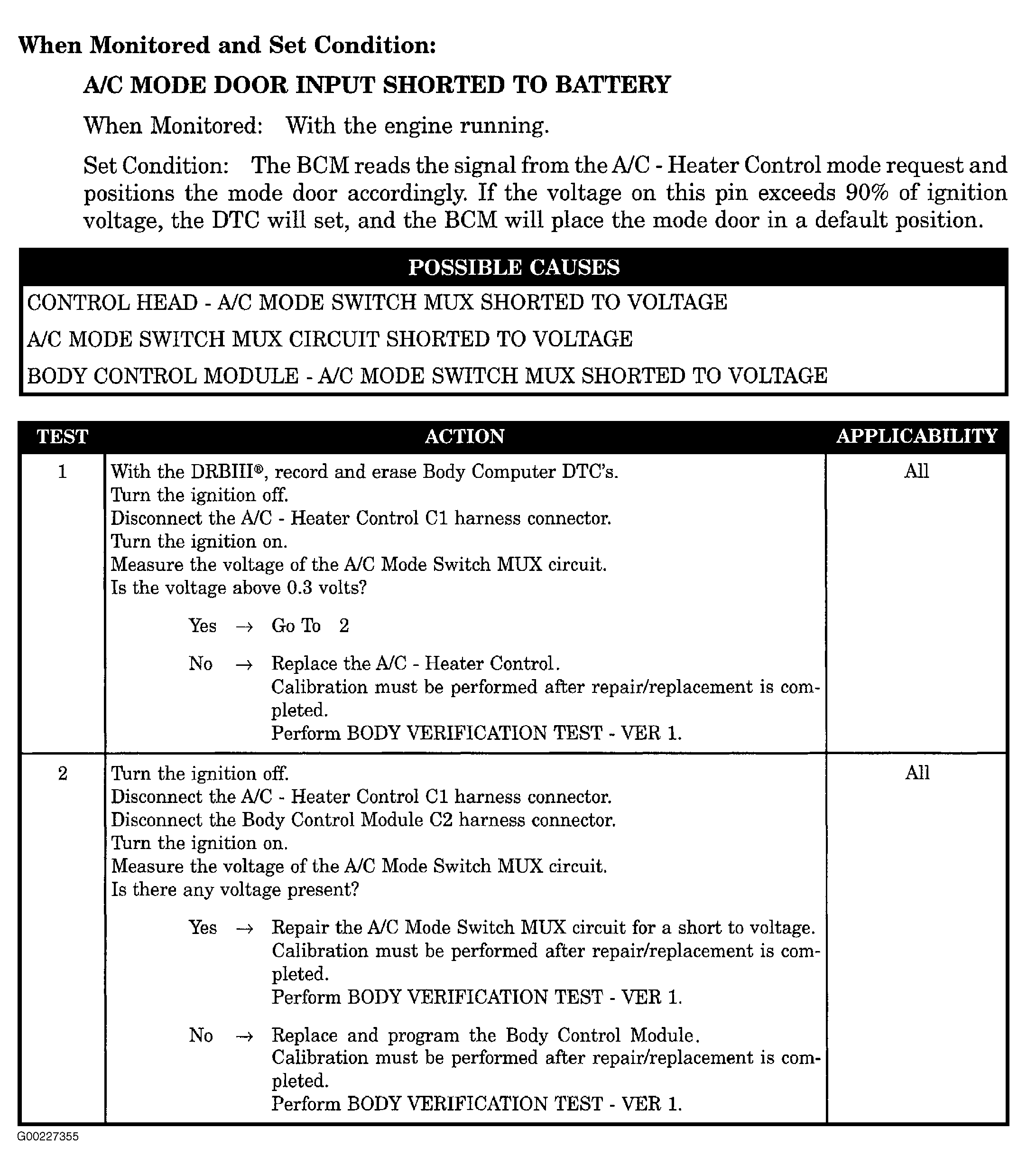

Fig 1: A/C Mode Door Input Shorted To Battery
G00227355Courtesy of CHRYSLER CORP.
