System Specifications

Engine Specifications

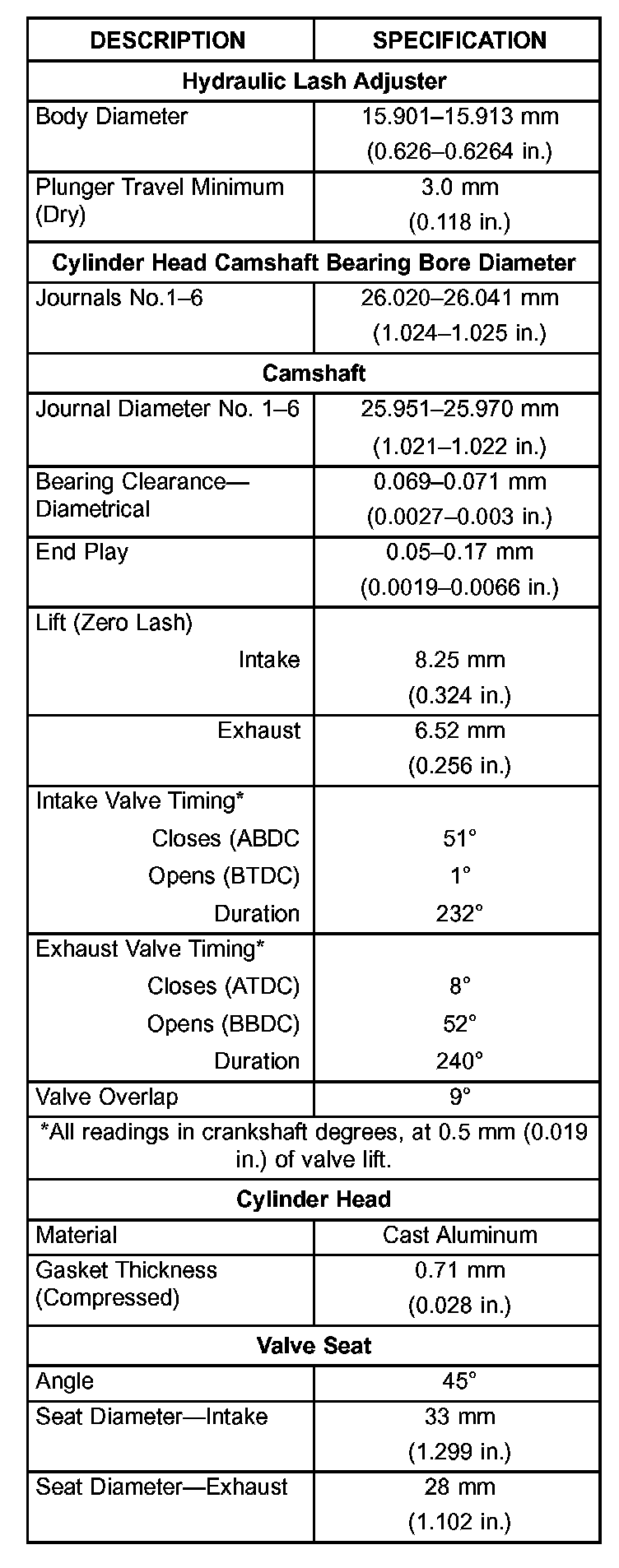

Part 1 of 7

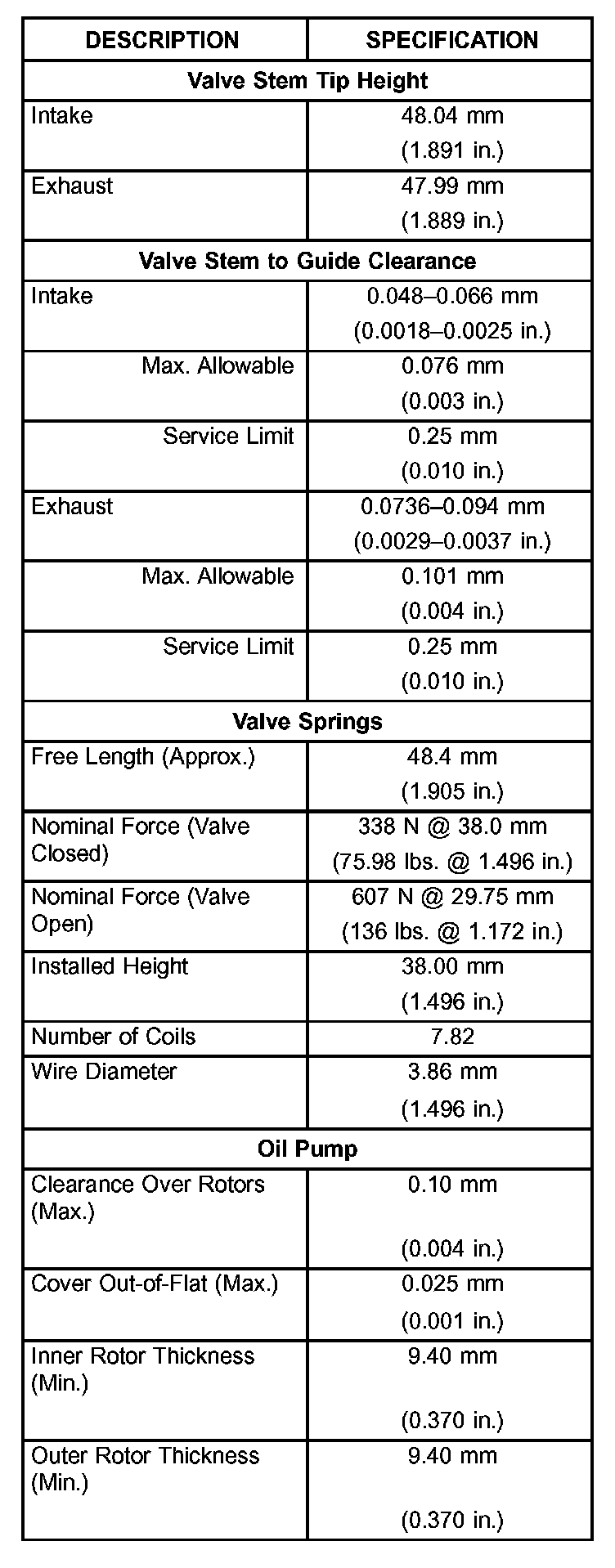

Part 2 of 7

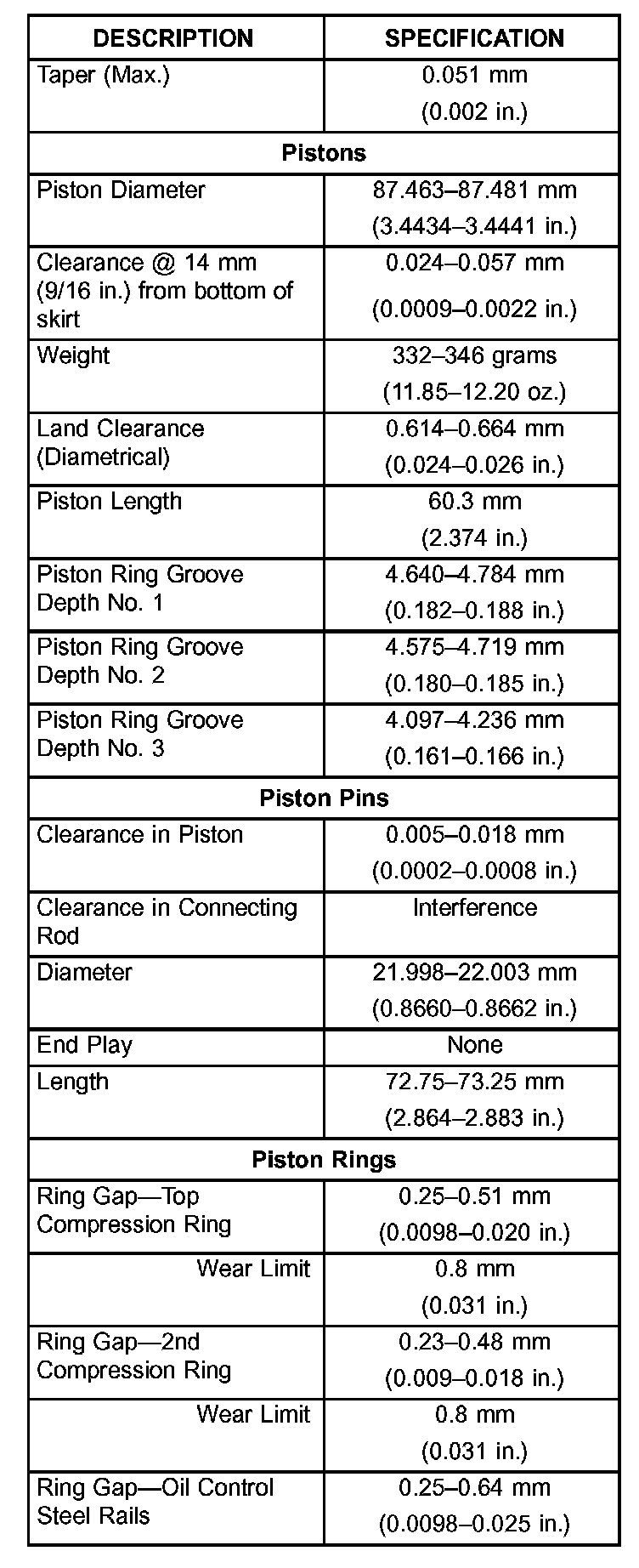

Part 3 of 7

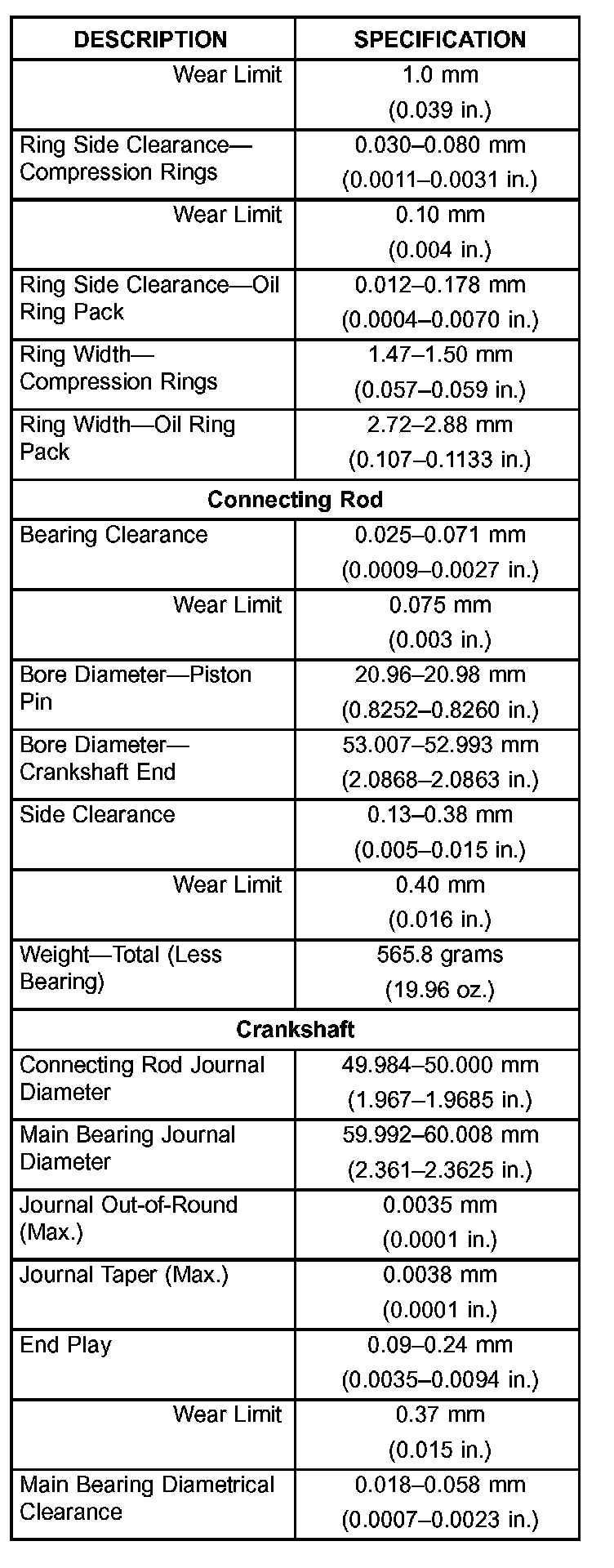

Part 4 of 7

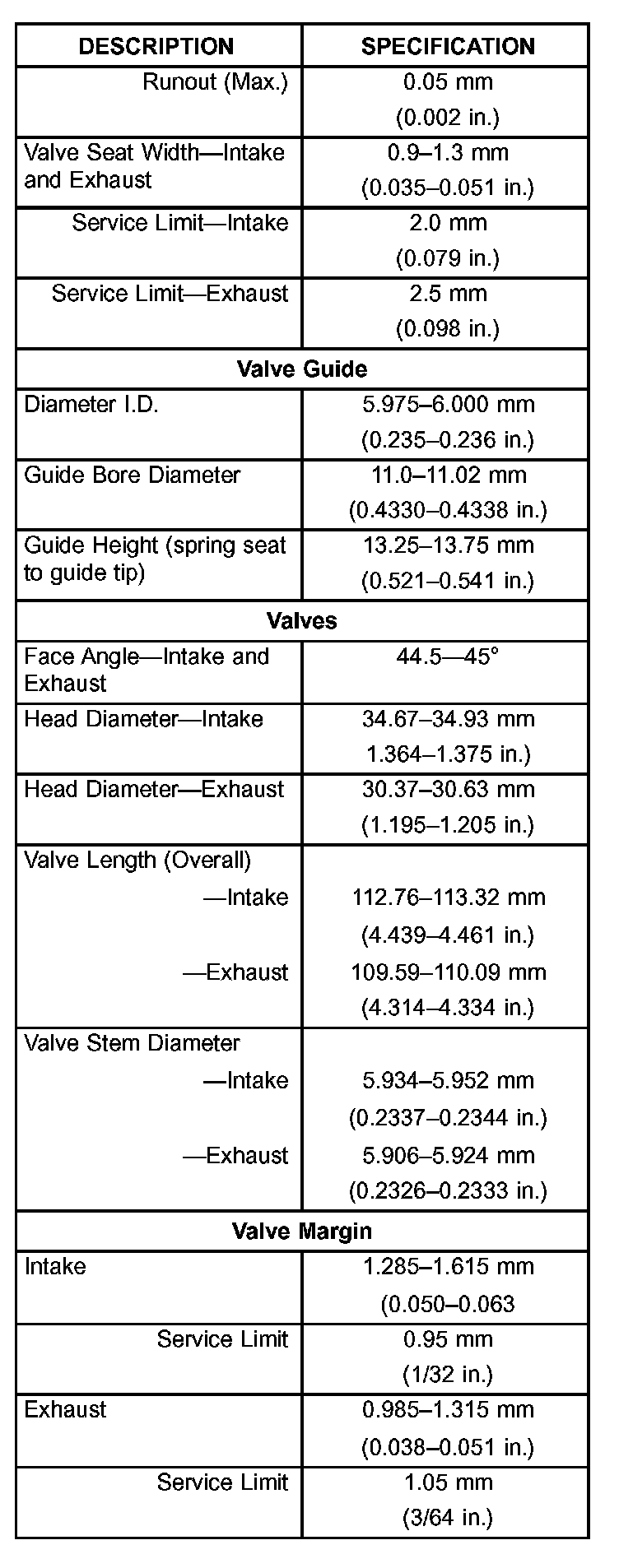

Part 5 of 7





Part 6 of 7





Part 7 of 7

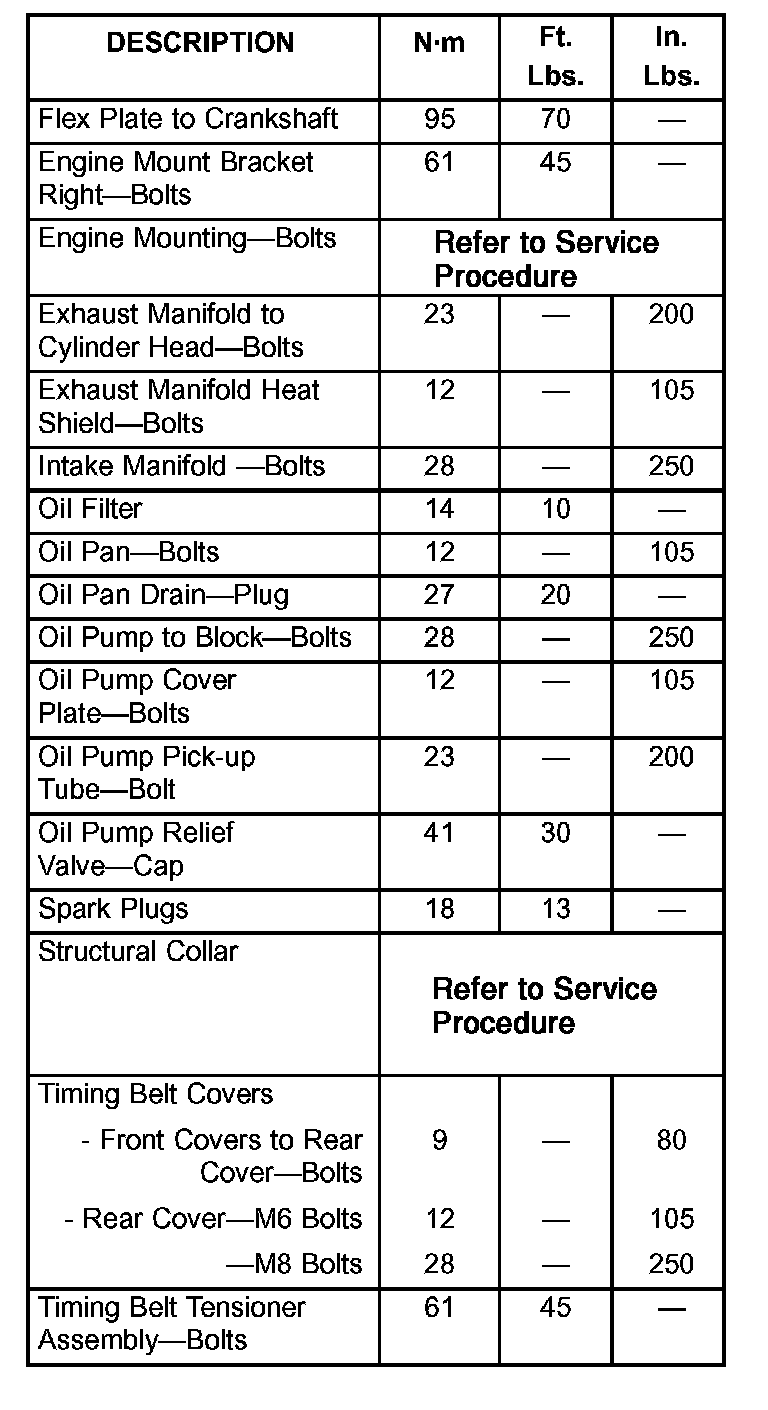

Torque Mechanical





Part 1 of 2





Part 2 of 2
