Emission Control Systems: Service and Repair









VACUUM HOSE INSTALLATION
1. When connecting the vacuum hoses, they should be securely inserted onto the nipples.

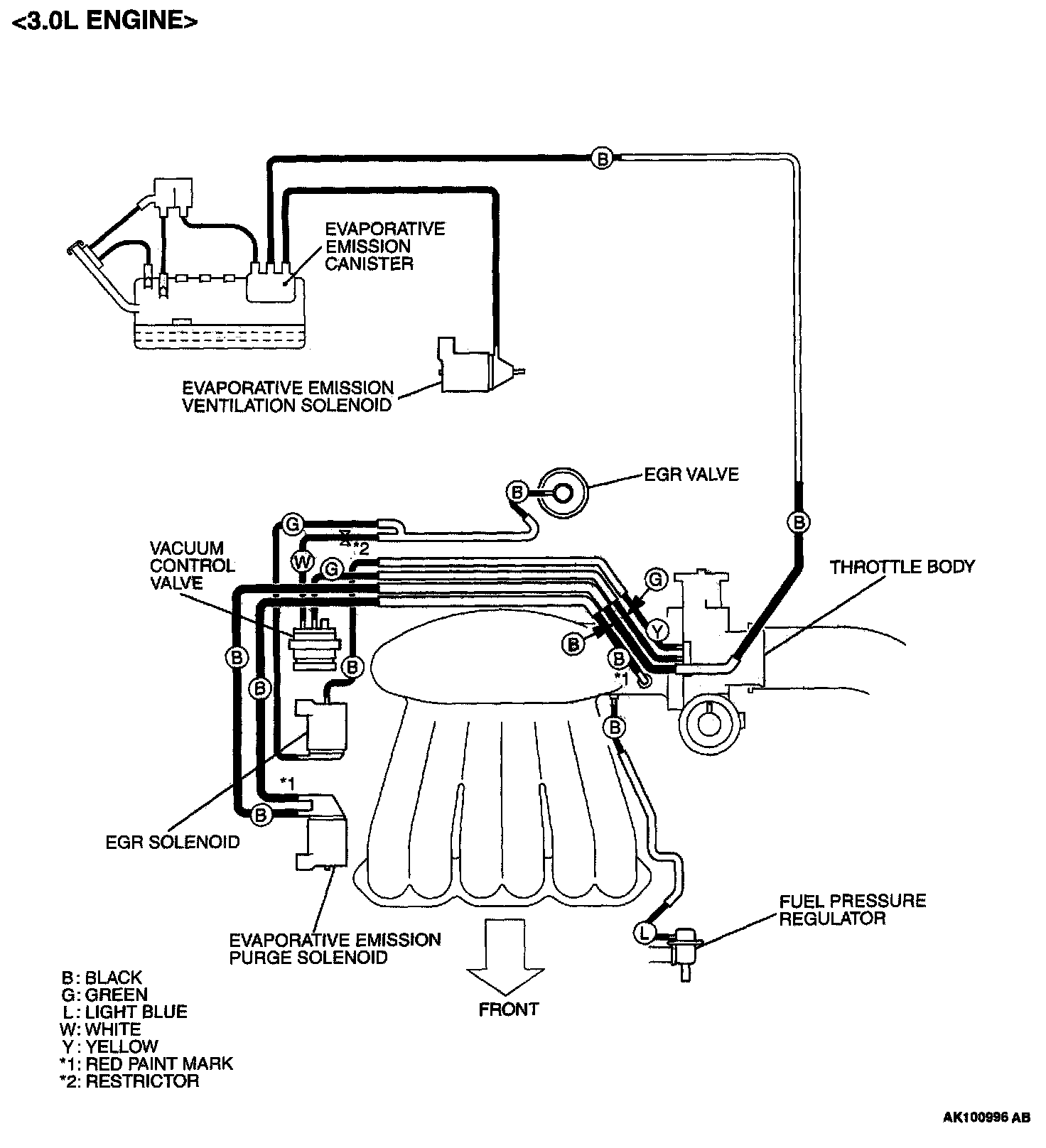

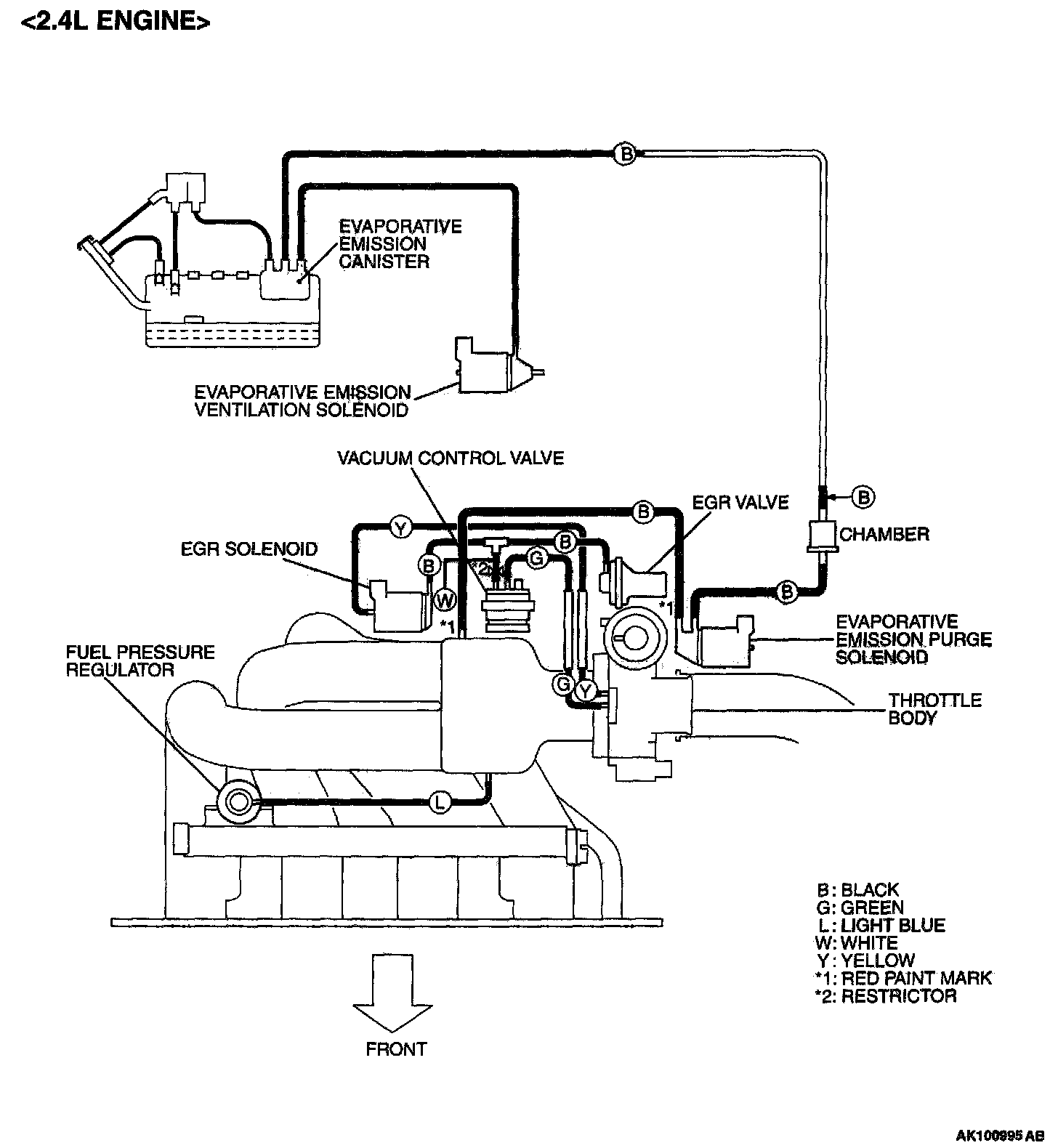

2. Connect the hoses correctly, using the VACUUM HOSE ROUTING as a guide.
