Inspection Procedure Using an Oscilloscope
Waveform Example:

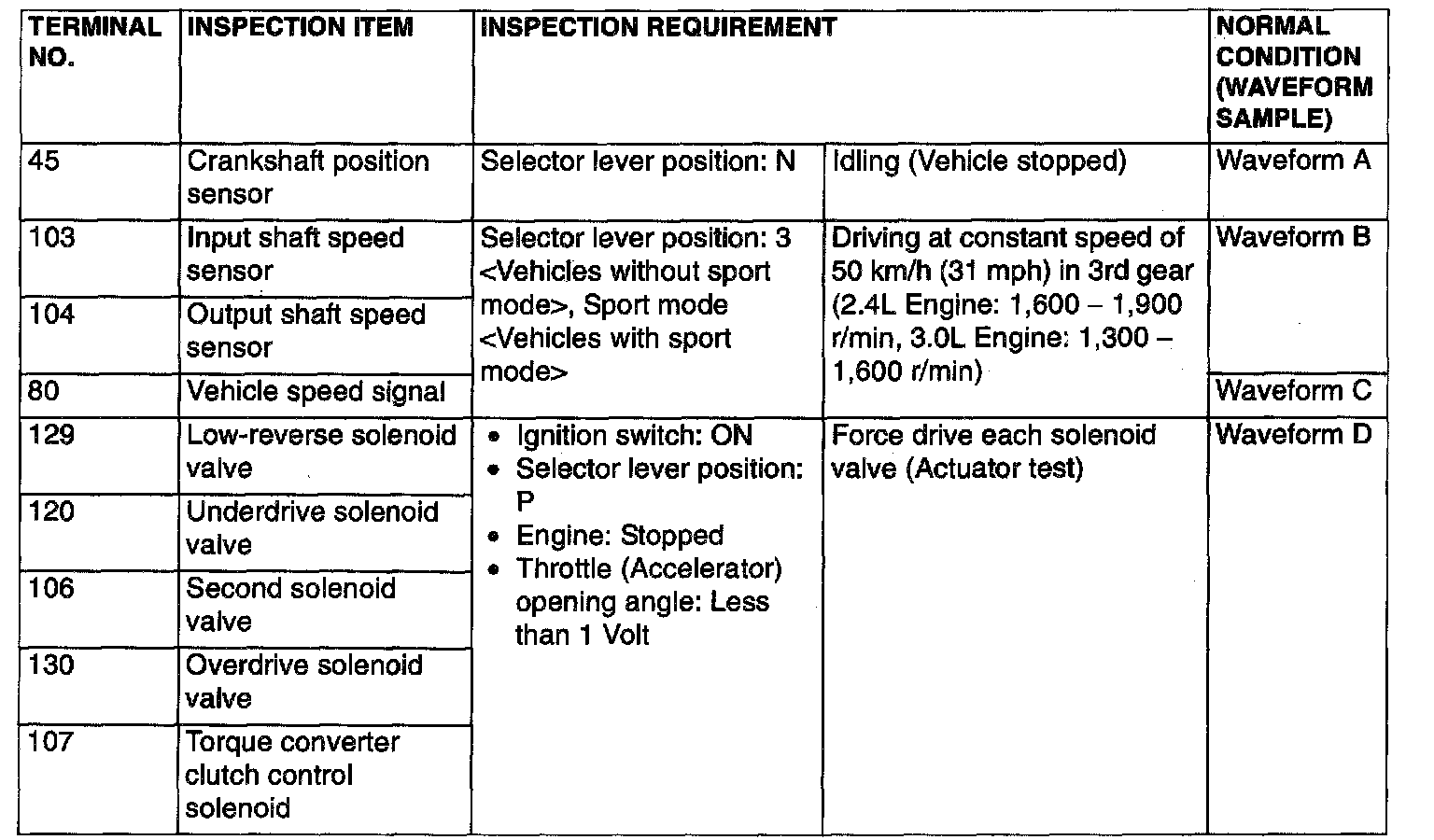

INSPECTION PROCEDURE USING AN OSCILLOSCOPE
