Power Top Switch Open Or Shorted To Battery
For testing procedures, see
Fig 1
and
Fig 2
.

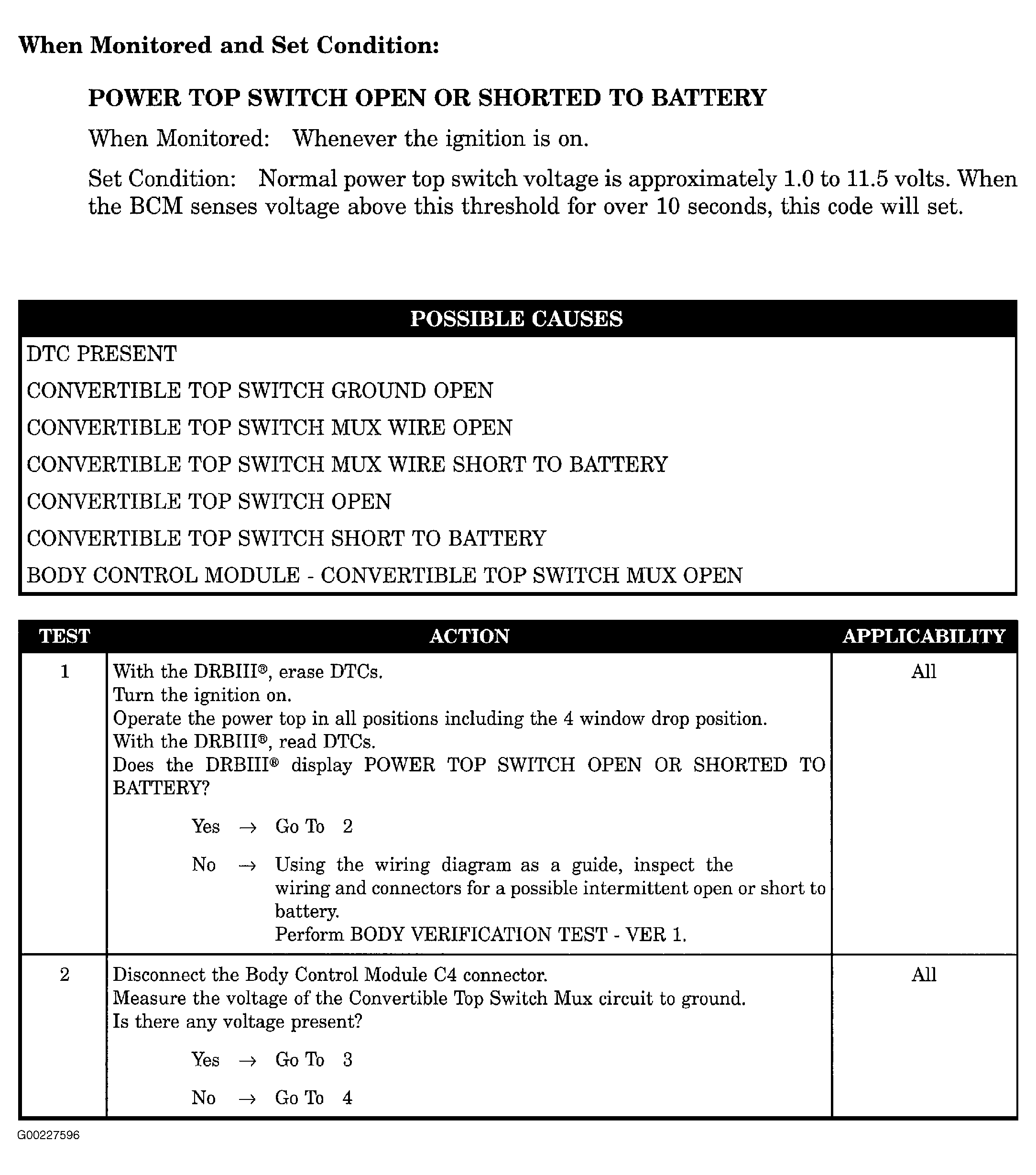

Fig 1: Power Top Switch Open Or Shorted To Battery - Steps 1 & 2 (1 Of 2)
Courtesy of CHRYSLER CORP.

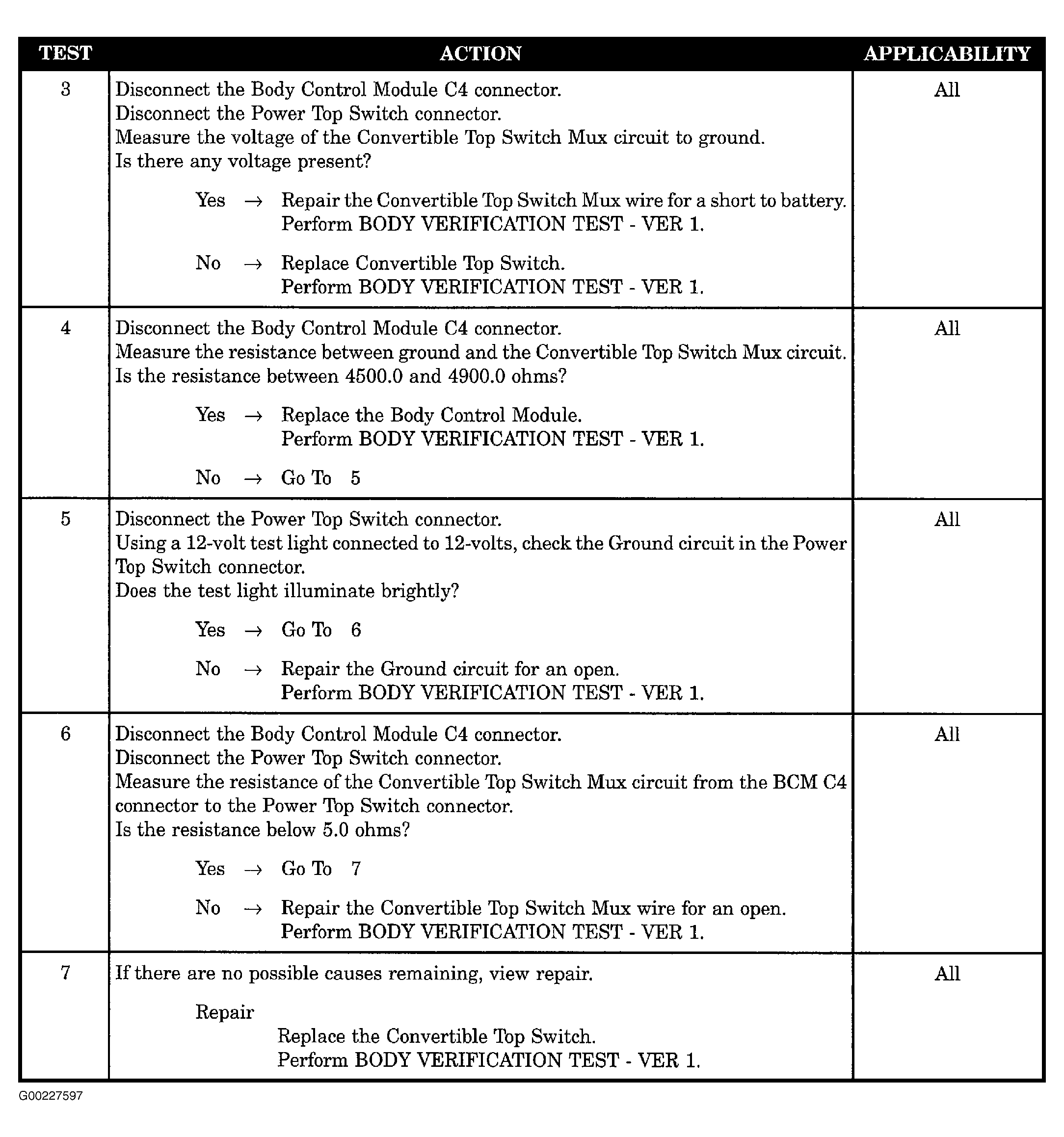

Fig 2: Power Top Switch Open Or Shorted To Battery - Steps 3-7 (2 Of 2)
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
