CD Changer Connector End View

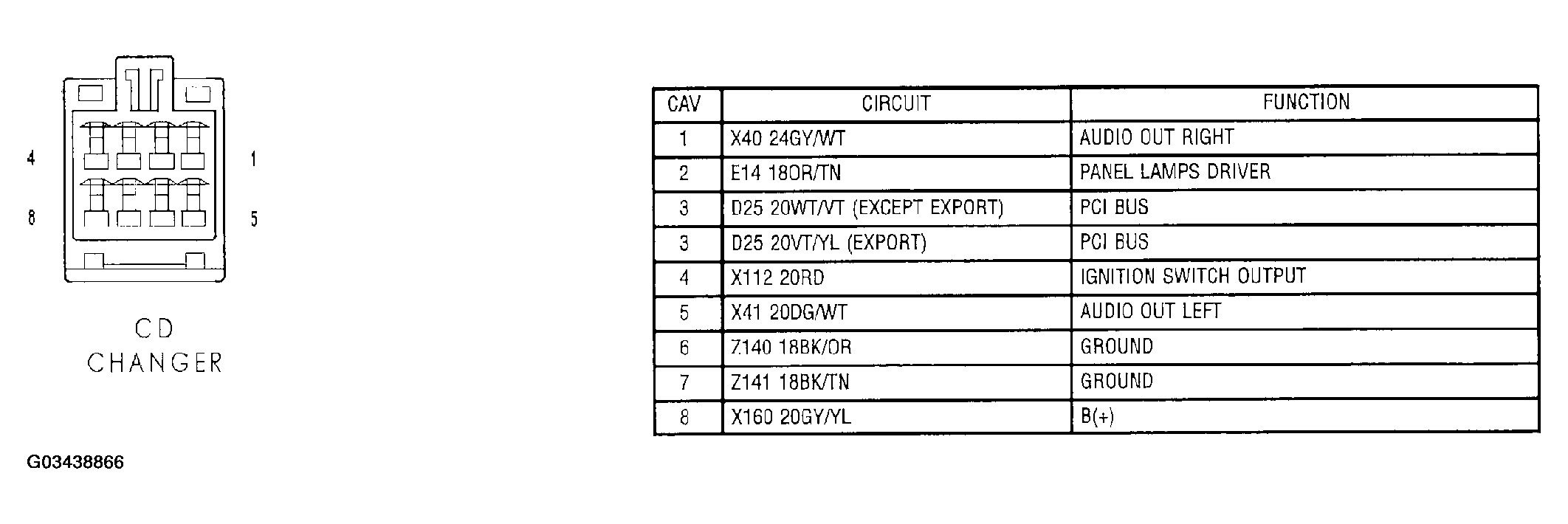

Fig 1: CD Changer Connector End View
G03438866Courtesy of CHRYSLER GROUP, LLC
