Power Liftgate Motor Connector End View

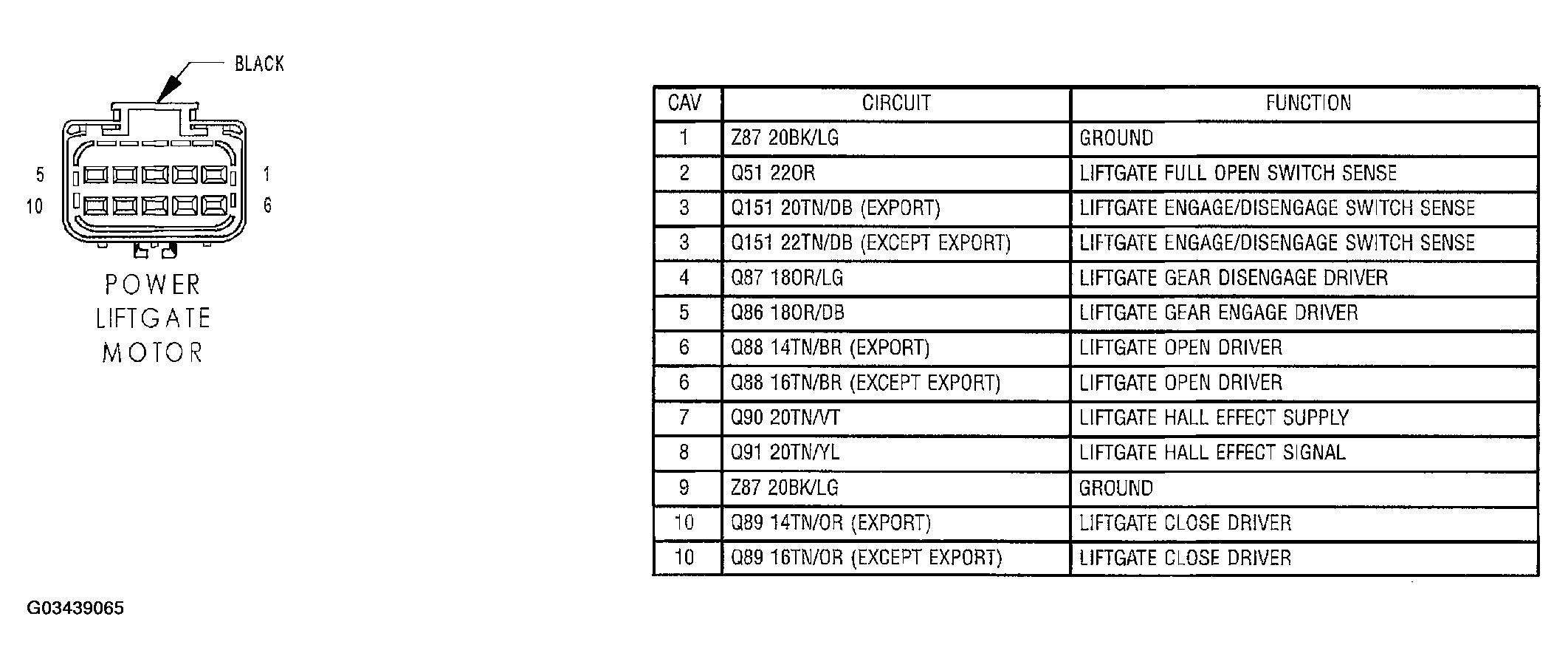

Fig 1: Power Liftgate Motor Connector End View
Courtesy of CHRYSLER GROUP, LLC
